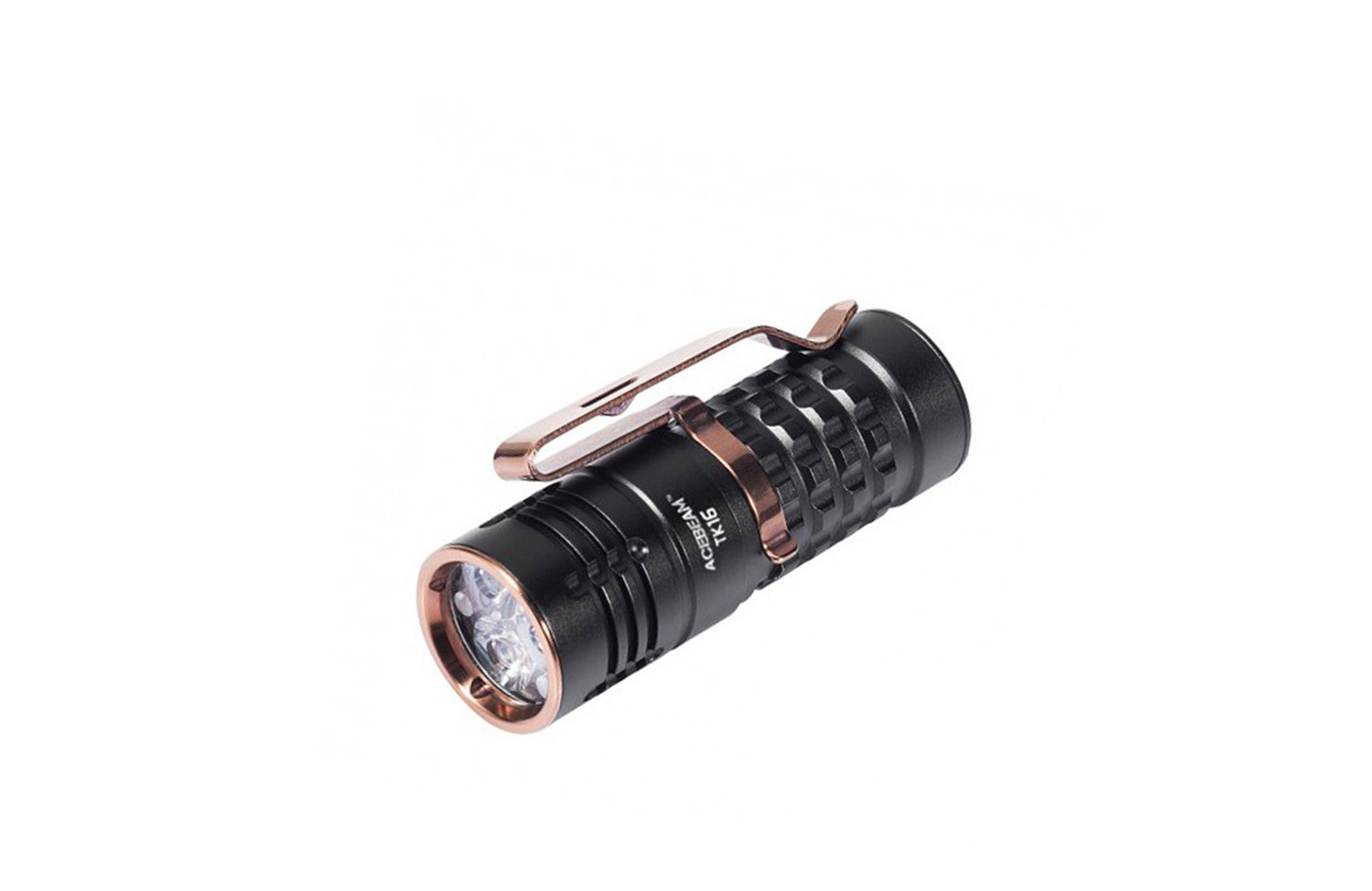

TK16 AL EDC Pocket Flashlight

$69.90

If you are searching for a unique and powerful addition to your EDC collection, look no further! The new Acebeam TK16-AL edc pocket flashlight is one of the smallest everyday carry lights for CR123A powered size.

Availability: Out of stock
Free shipping
*




 Features:

When TK16-AL is powered by RCR123 battery (16340 550mAh 10C battery ):

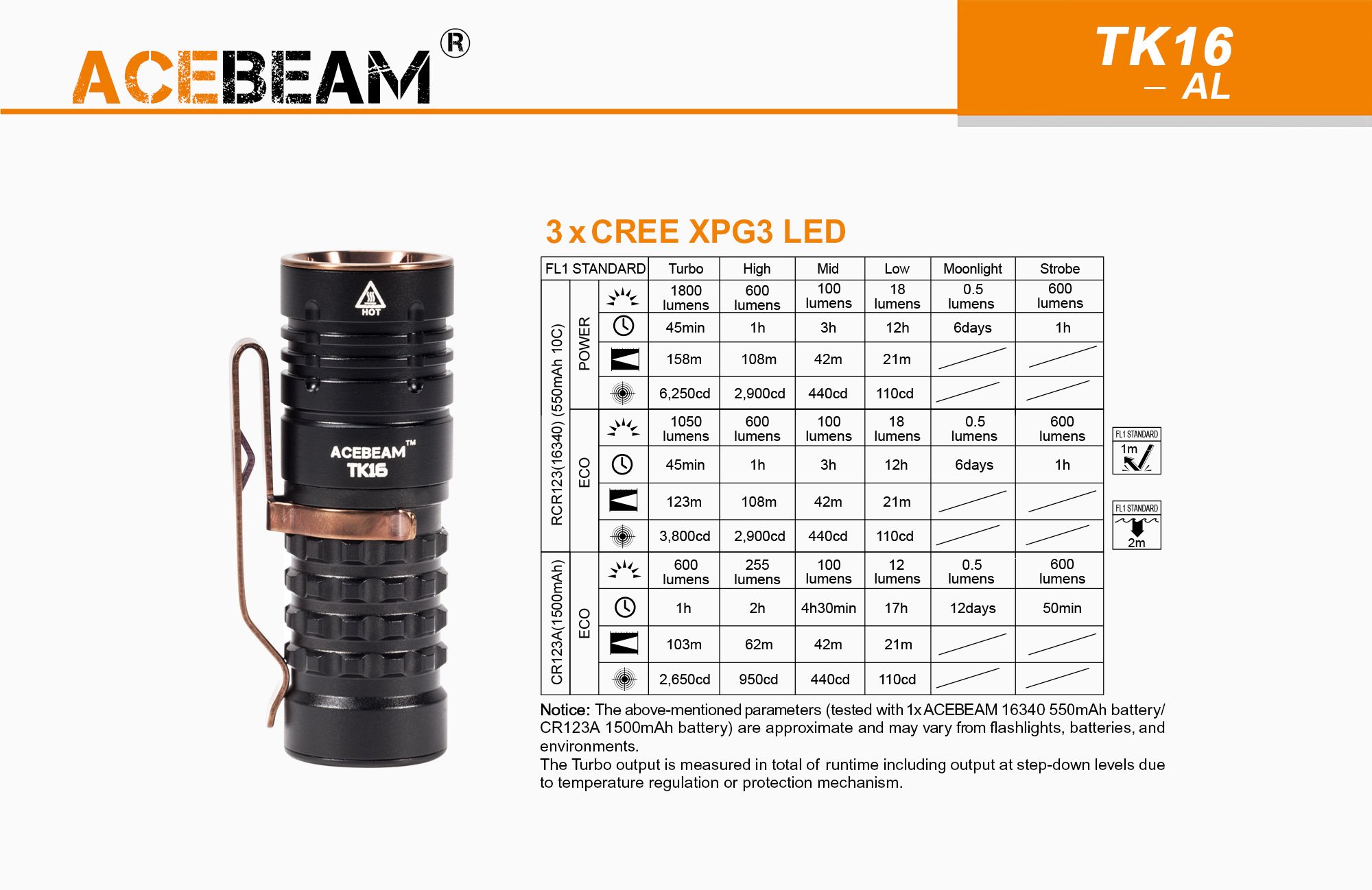

LED option 1: CREE-XPG3
Power Mode
Moonlight: 0.5 lumens; 6 days
Low: 18 lumens; 110cd; 21 meters; 12 hours
Med: 100 lumens; 440cd; 42 meters; 3 hours
High: 600 lumens; 2900cd; 108 meters; 1 hour
Turbo: 1800 lumens; 6250cd; 158 meters; 45 minutes
Strobe: 600 lumens; 1 hour

ECO Mode
Moonlight: 0.5 lumens; 6 days
Low: 18 lumens; 110cd; 21 meters; 12 hours
Med: 100 lumens; 440cd; 42 meters; 3 hours
High: 600 lumens; 2900cd; 108 meters; 1 hour
Turbo: 1050 lumens; 3800cd; 123 meters; 45 minutes
Strobe: 600 lumens; 1 hour

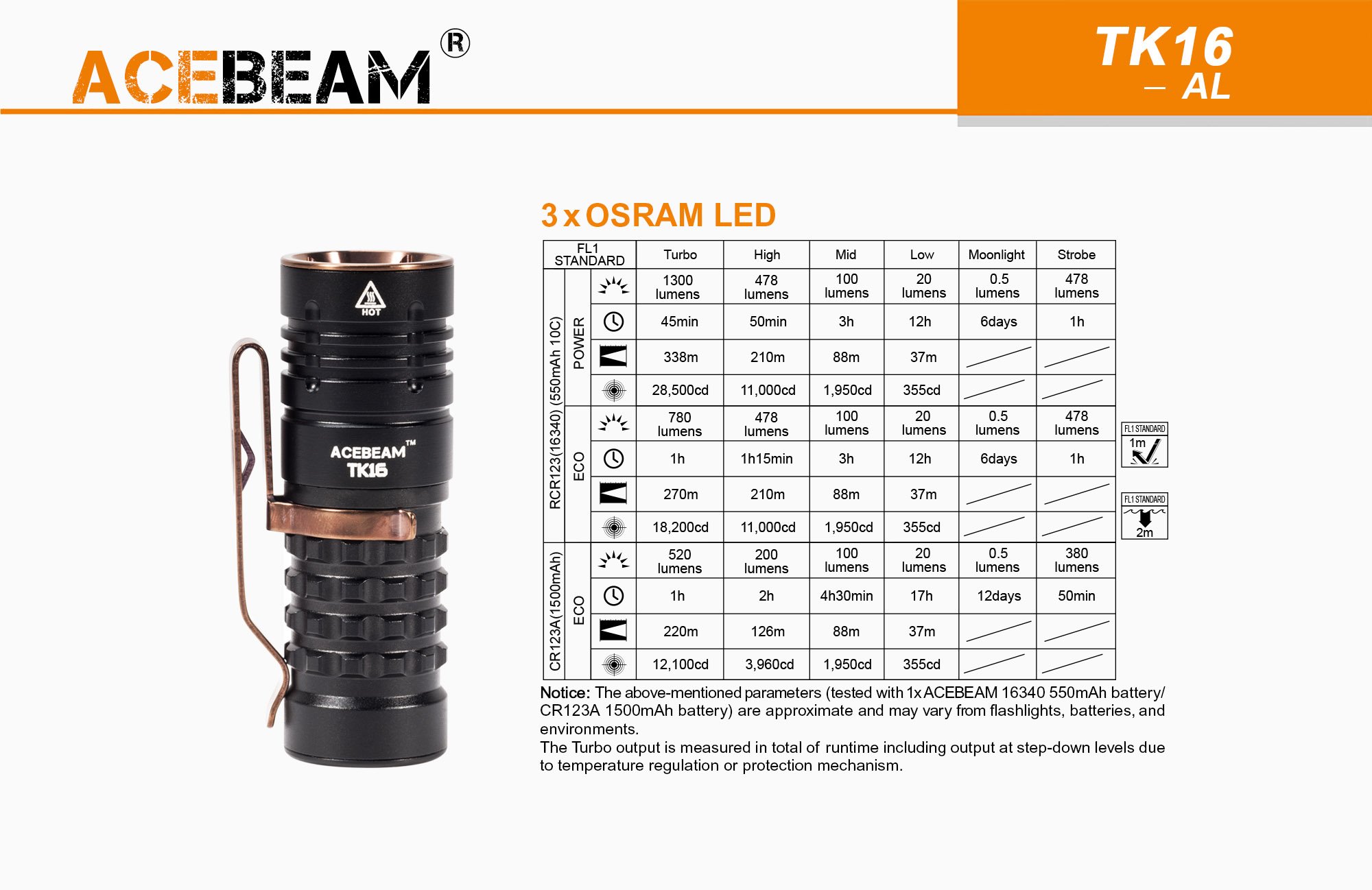

LED option 2: OSRAM
Power Mode
Moonlight: 0.5 lumens; 6 days
Low: 20 lumens; 355cd; 37 meters; 12 hours
Med: 100 lumens; 1950cd; 88 meters; 3 hours
High: 478 lumens; 11000cd; 210 meters; 50 minutes
Turbo: 1300 lumens; 28500cd; 338 meters; 45 minutes
Strobe: 478 lumens; 1 hour

ECO Mode
Moonlight: 0.5 lumens; 6 days
Low: 20 lumens; 355cd; 37 meters; 12 hours
Med: 100 lumens; 1950cd; 88 meters; 3 hours
High: 478 lumens; 11000cd; 210 meters; 1 hour 15 minutes
Turbo: 780 lumens; 18200cd; 270 meters; 1 hour
Strobe: 478 lumens; 1 hour

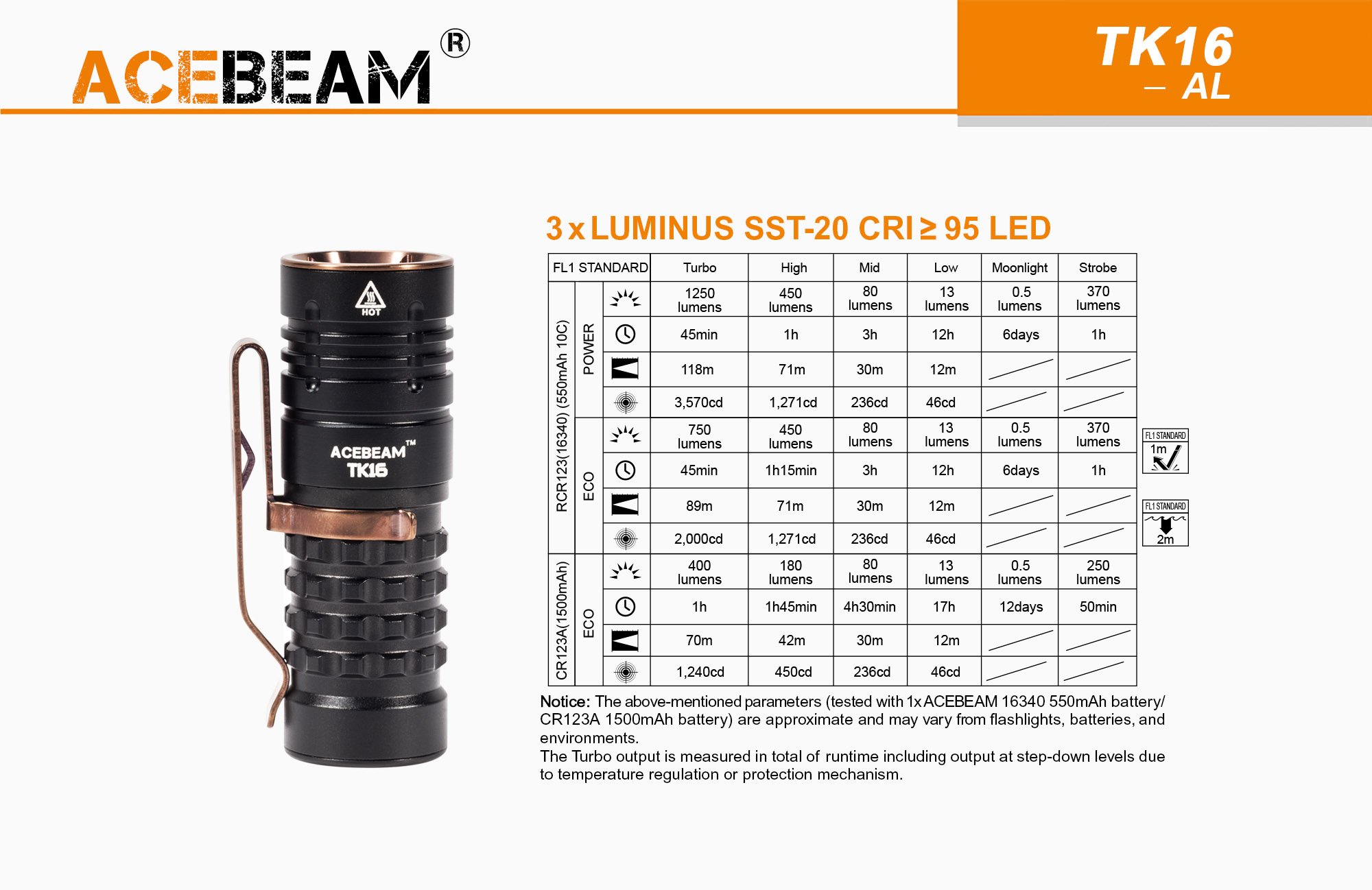

LED option 3: LUMINUS SST-20 CRI≥95
Power Mode
Moonlight: 0.5 lumens; 6 days
Low: 13 lumens; 46cd; 12 meters; 12 hours
Med: 80 lumens; 236cd; 30 meters; 3 hours
High: 450 lumens; 1271cd; 71 meters; 1 hour
Turbo: 1250 lumens; 3570cd; 118 meters; 45 minutes
Strobe: 370 lumens; 1 hour

ECO Mode
Moonlight: 0.5 lumens; 6 days
Low: 13 lumens; 46cd; 12 meters; 12 hours
Med: 80 lumens; 236cd; 30 meters; 3 hours
High: 450 lumens; 1271cd; 71 meters; 1 hour + 15 minutes
Turbo: 750 lumens; 2000cd; 89 meters; 45 minutes
Strobe: 370 lumens; 1 hour

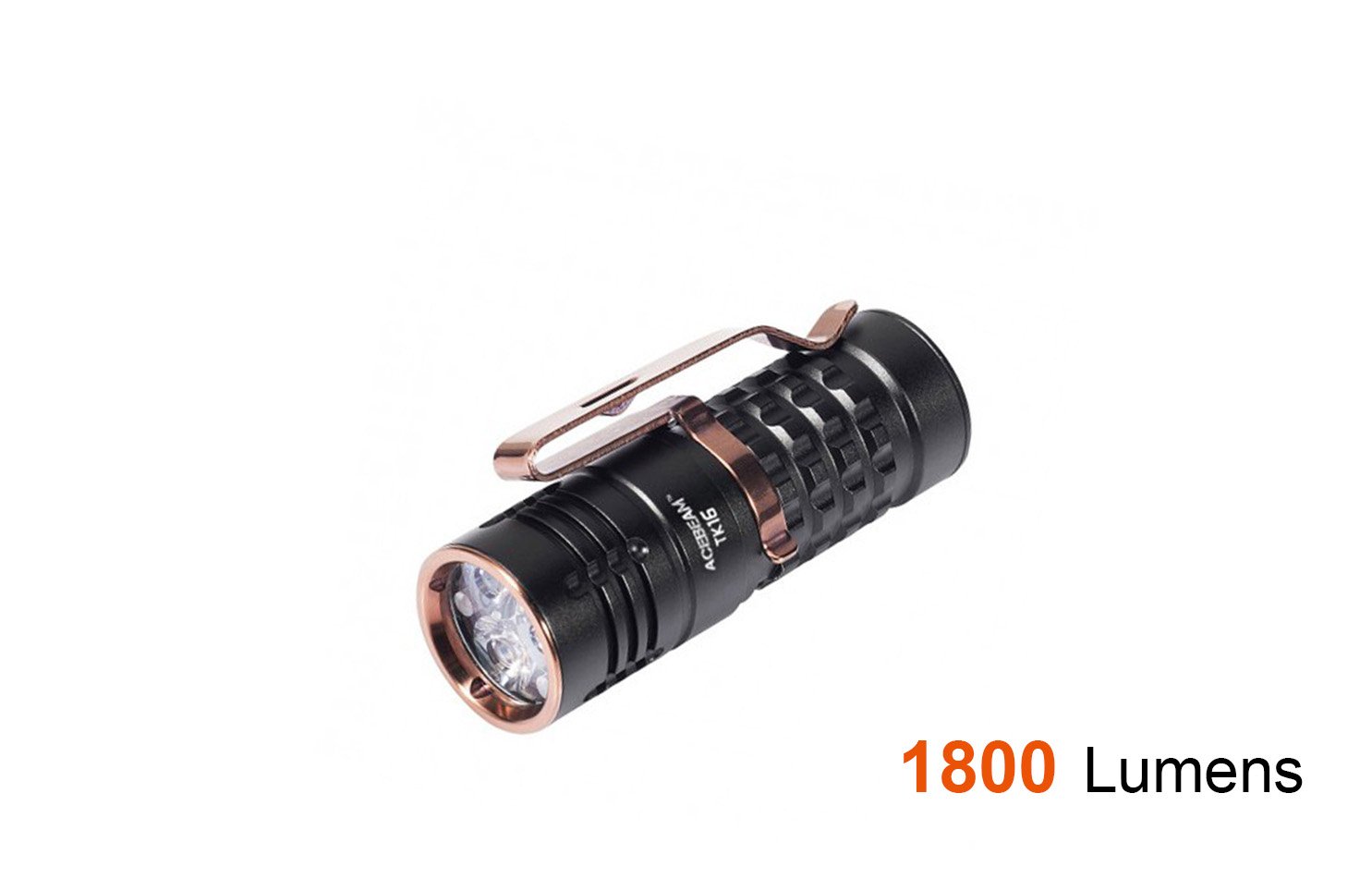

Max. output 1800 lumens
Max. runtime: 6 days
Max. beam distance: 338 meters
Peak beam intensity: 28500cd

When TK16-AL is powered by CR123A battery (1500mAh):
LED option 1: CREE-XPG3
Power Mode
Moonlight: 0.5 lumens; 12 days
Low: 12 lumens; 110cd; 21 meters; 17 hours
Med: 100 lumens; 440cd; 42 meters; 4 hours 30 minutes
High: 255 lumens; 950cd; 62 meters; 2 hours
Turbo: 600 lumens; 2650cd; 103 meters; 1 hour
Strobe: 600 lumens; 50 minutes

LED option 2: OSRAM
Power Mode
Moonlight: 0.5 lumens; 12 days
Low: 20 lumens; 355cd; 37 meters; 17 hours
Med: 100 lumens; 1950cd; 88 meters; 4 hours 30 minutes
High: 200 lumens; 3960cd; 126 meters; 2 hours
Turbo: 520 lumens; 12100cd; 220 meters; 1 hour
Strobe: 380 lumens; 50 minutes

LED option 3: LUMINUS SST-20 CRI≥95
Power Mode
Moonlight: 0.5 lumens; 12 days
Low: 13 lumens; 46cd; 12 meters; 17 hours
Med: 80 lumens; 236cd; 30 meters; 4 hours 30 minutes
High: 180 lumens; 450cd; 42 meters; 1 hour 45 minutes
Turbo: 400 lumens; 1240cd; 70 meters; 1 hour
Strobe: 250 lumens; 50 minutes

Max. output 600 lumens
Max. runtime: 12 days
Max. beam distance: 220 meters
Peak beam intensity:12100cd

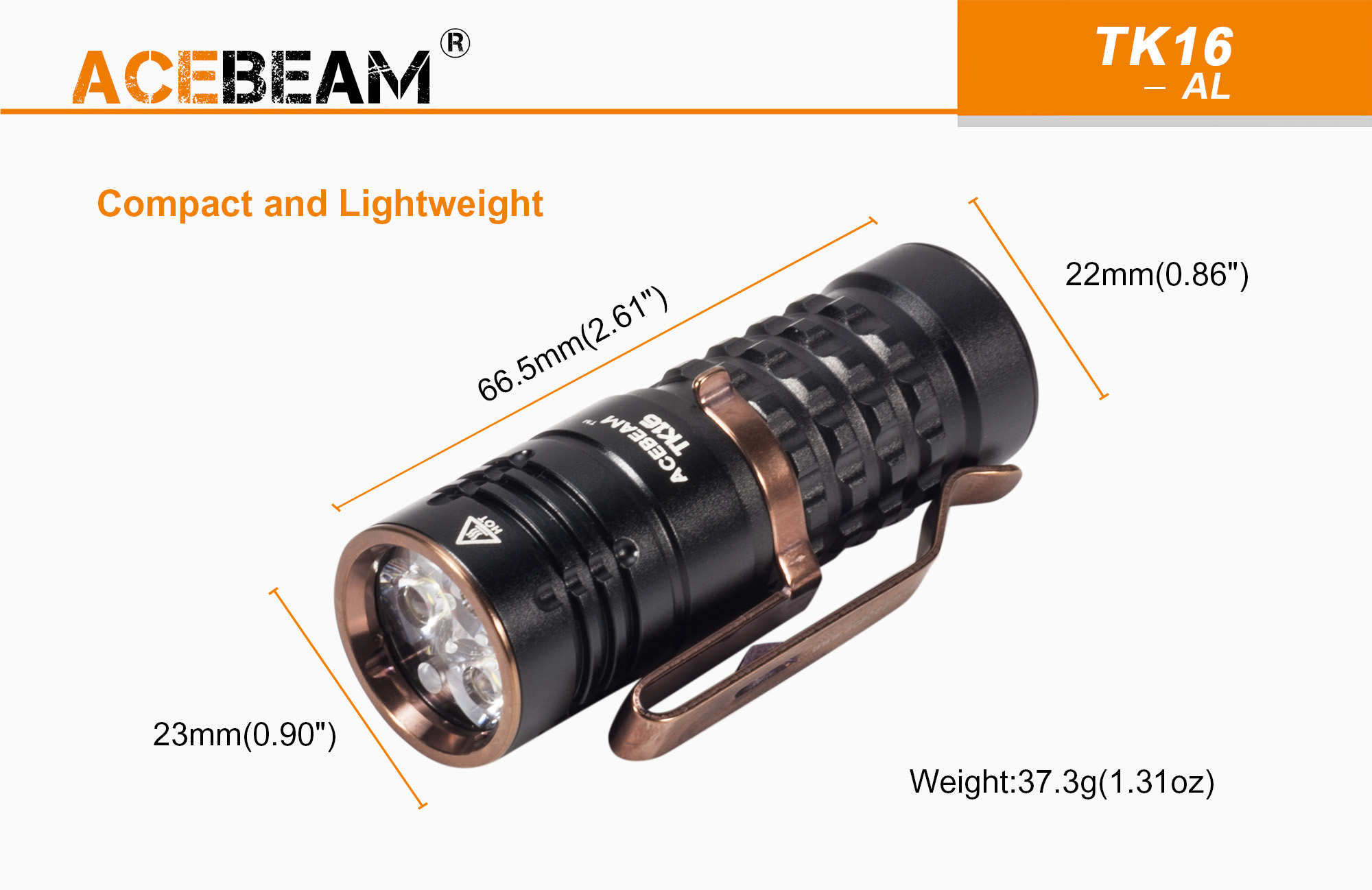

Size: 23mm Head Diameter x 66.5mm Length x 22mm Tube
Weight: 37.3g w/o battery
Made of durable aerospace-grade aluminum alloy
Premium type Ⅲ hard-anodized anti-abrasive finish
High CRI (CRI≥95) LED resembles the nature of sunlight and reveals subtle detail of an object
Long range beam distance up to 338 meters by OSRAM LED

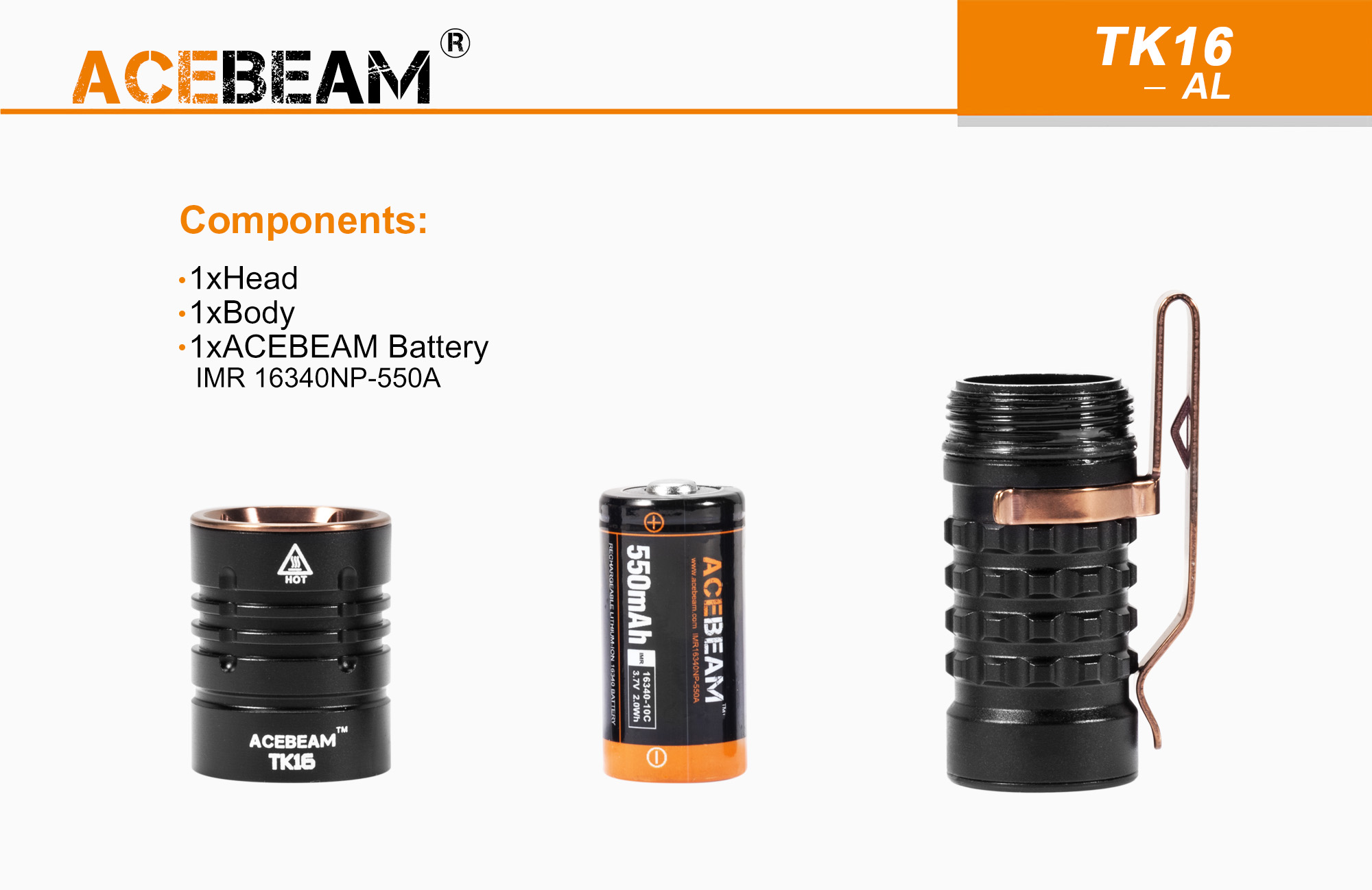

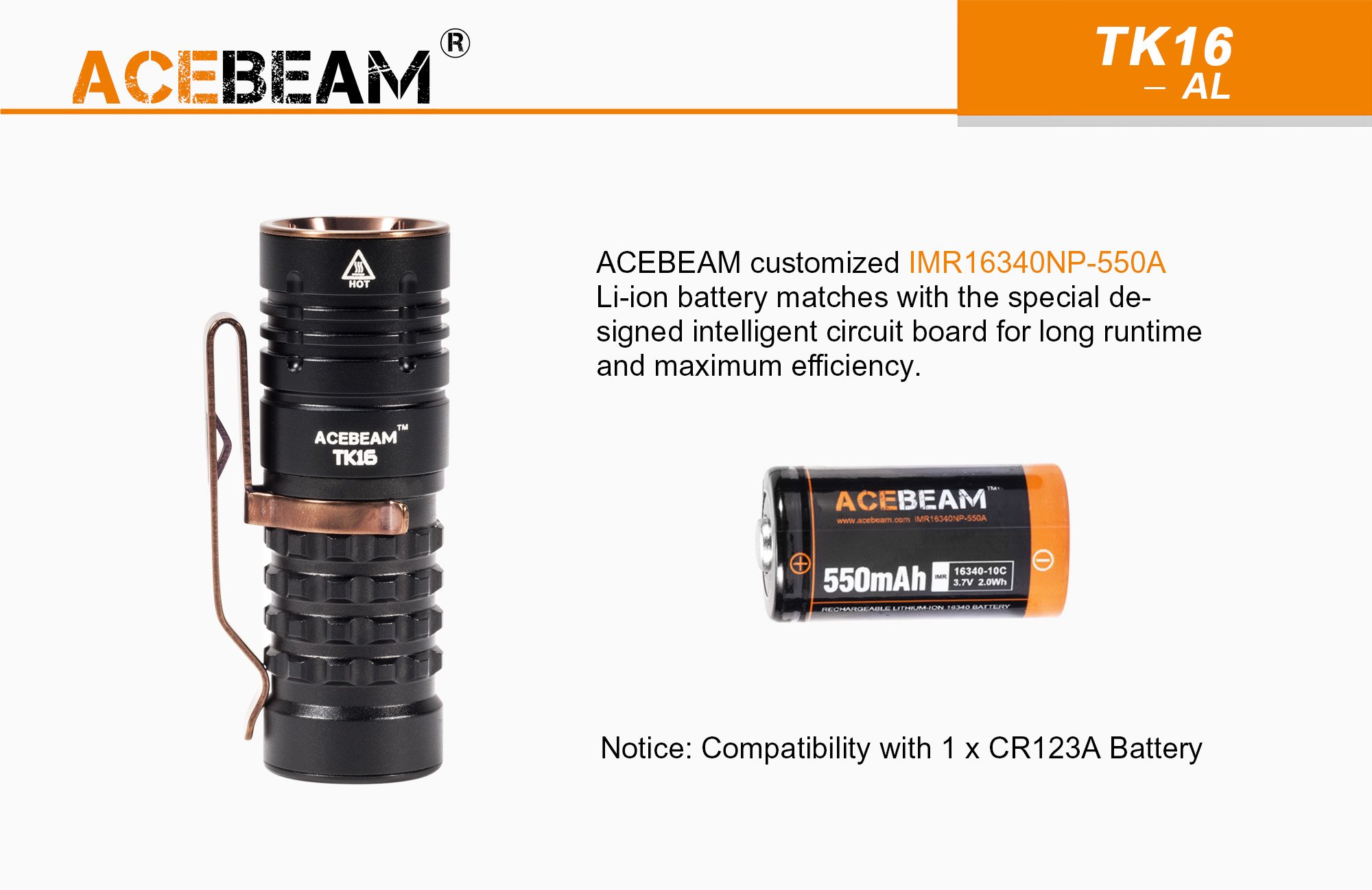

Customized 10C discharge current IMR16340 550mAh battery (RCR123 battery)

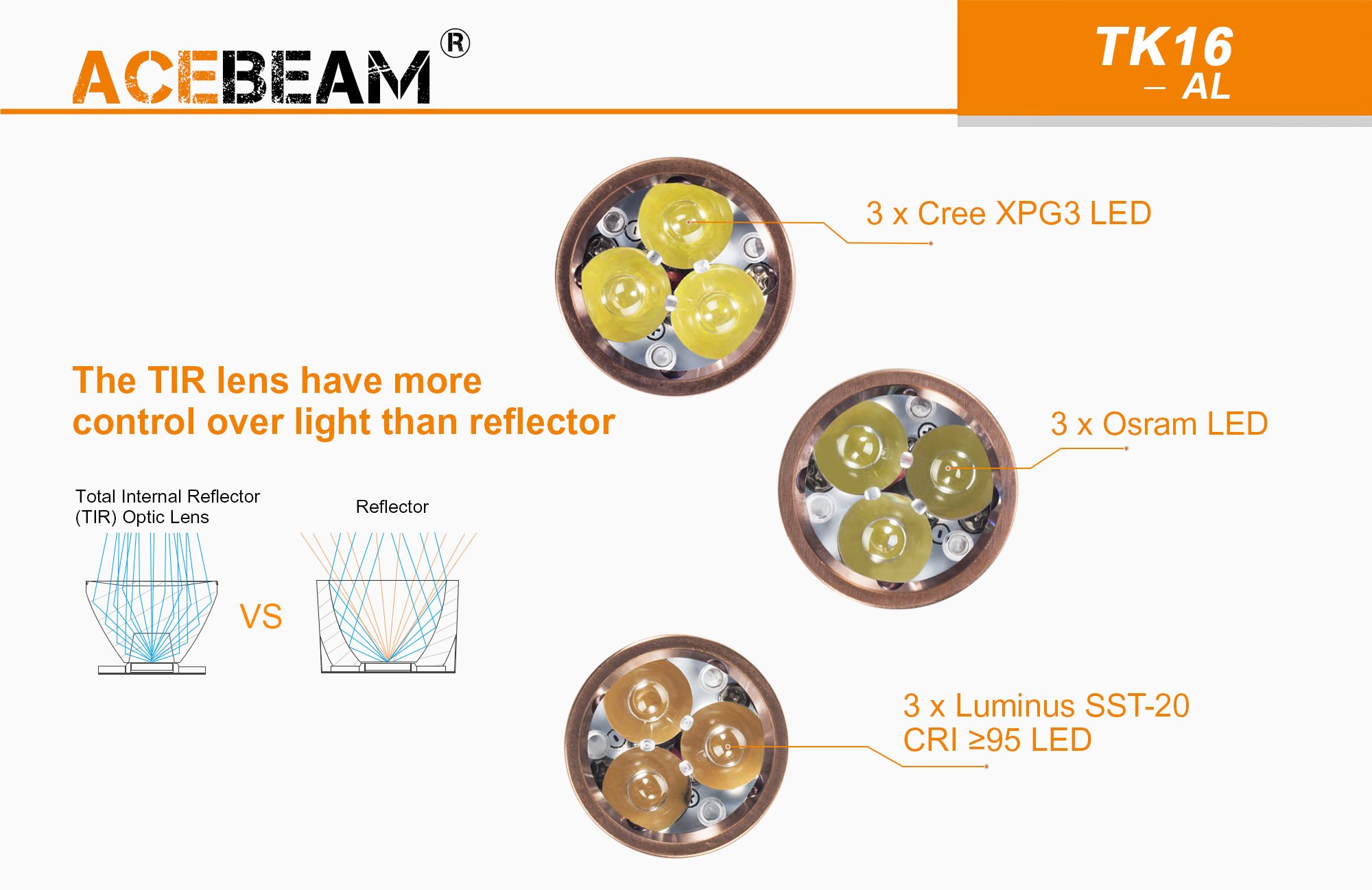

TIR (Total Internal Reflection) optic facilitates efficient light transmission with a broad beam and a generous throw
Highly integrated tail switch switch for all easy operation
Knurling and polishing finish provide a secure grip
Multiple LED, multiple brightness and light range
Compatible Battery: 1 x IMR16340 550mAh (RCR123) battery (recommended) / 1 x CR123A battery
Strobe setting that can disorient an attacker or serve as a distress signal
Detachable Gold plated clip and compact size for easy carry
Streamlined body with slim head design

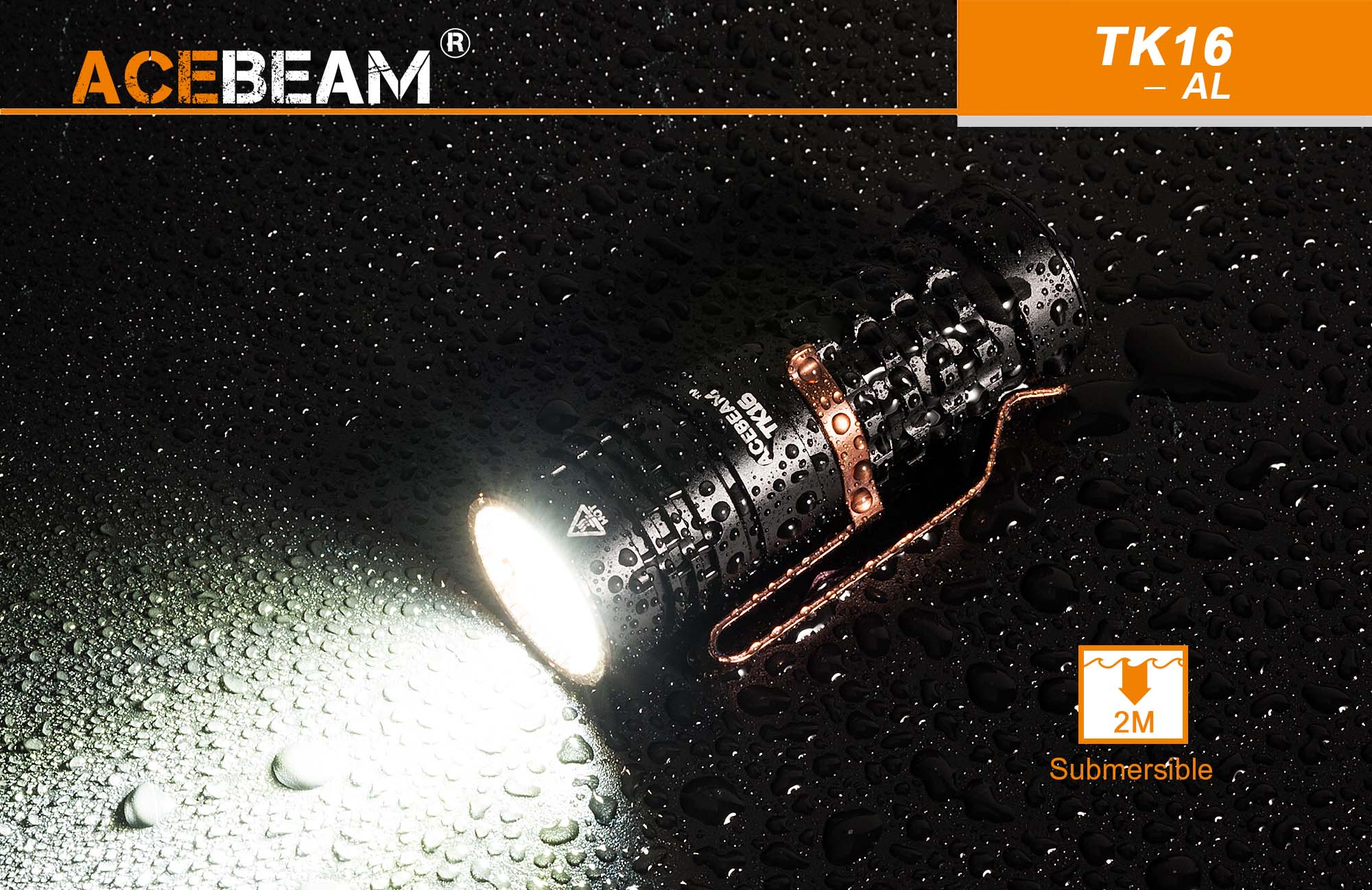

Underwater 2 meters submersible
1 meter impact resistance
Low battery voltage warning with flickering
Intelligent highly efficient circuit board design for max. performance and long run time
Intelligent temperature controlled light output for user safety
Existing reviews

EDC Light
TK16 kecil tp puas hati dengan batri IMR 16340NP-500A 1800 Lumens. EDC paling recommended dengan size mcm ni. boleh sangkut di cap untuk jadi head light untuk free hand. blh custom batri apa jenis 16340. Tq
along | 8/30/2021 7:12 PM
You should keep it in your bag.
It is very bright and unobtrusive at this small size.
Very helpful.
Kazunari | 11/5/2021 2:03 PM
Powerhouse In Your Pocket
Pocket size powerhouse at an affordable price! Hard to find so many lumens in such a compact size.
Lo | 11/29/2021 12:51 PM
Acebeam TK16 Review

Acebeam TK16 Review

Possible versions of this flashlight

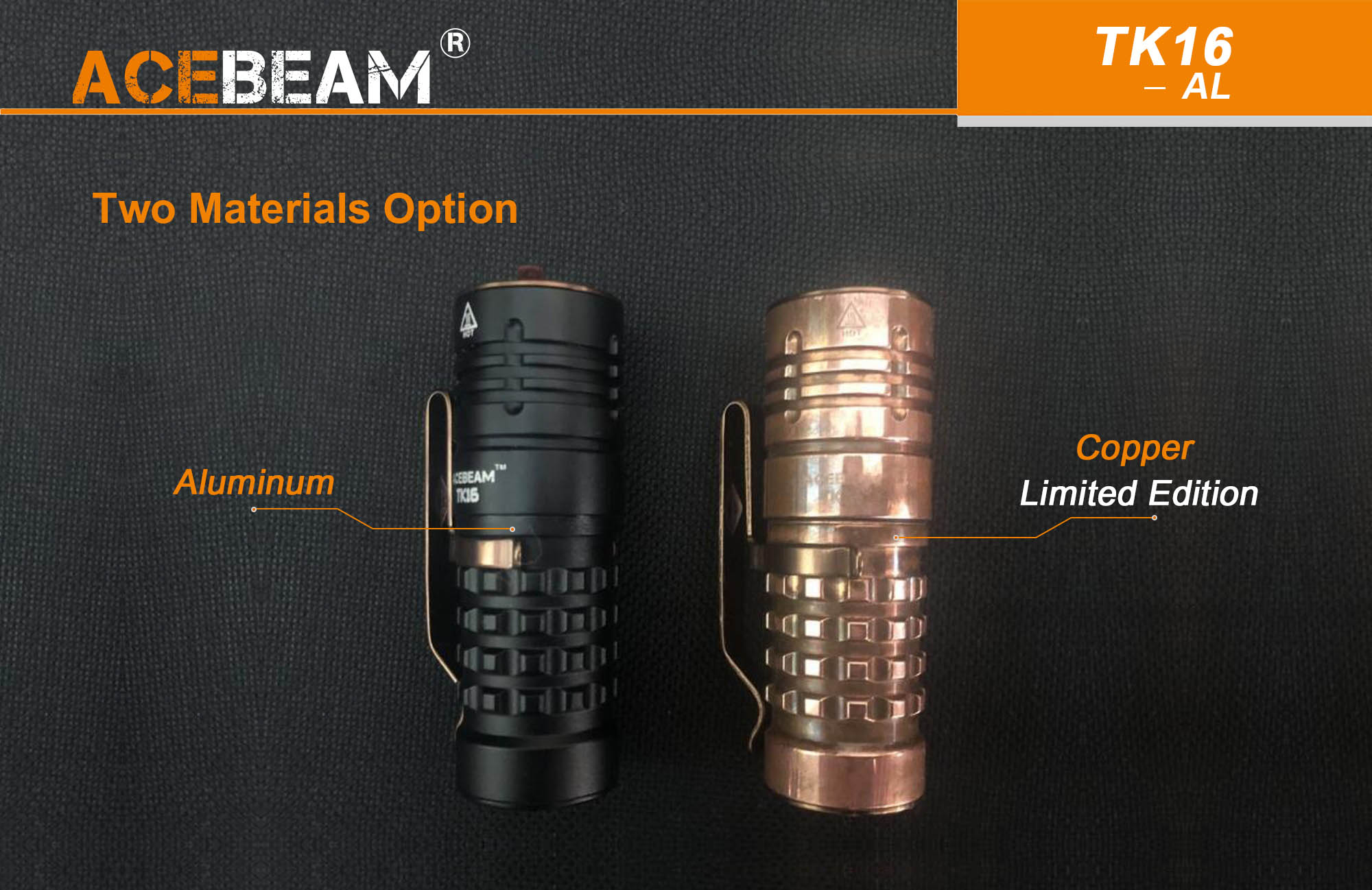

Two possible body material to choose from, aluminium or raw cupper material. The optic is of TIR (Total Internal Reflection) type.
Both the aluminium, - and the raw cupper versions can be ordered with one of three different LED configurations:
3*OSRAM KW CSLNM1.TG 1300 lumens Throw 338M
3*LUMINUS SST-20 CRI95 1250 lumens or,
3*CREE XPG 3 1800 lumens

For this review the aluminium version with 3*OSRAM KW CSLNM1.TG is used.

Delivery package
Nice looking sturdy package. The flashlight has a good protection during the transport.
Points/Maximal points: 5/5

Included accessories

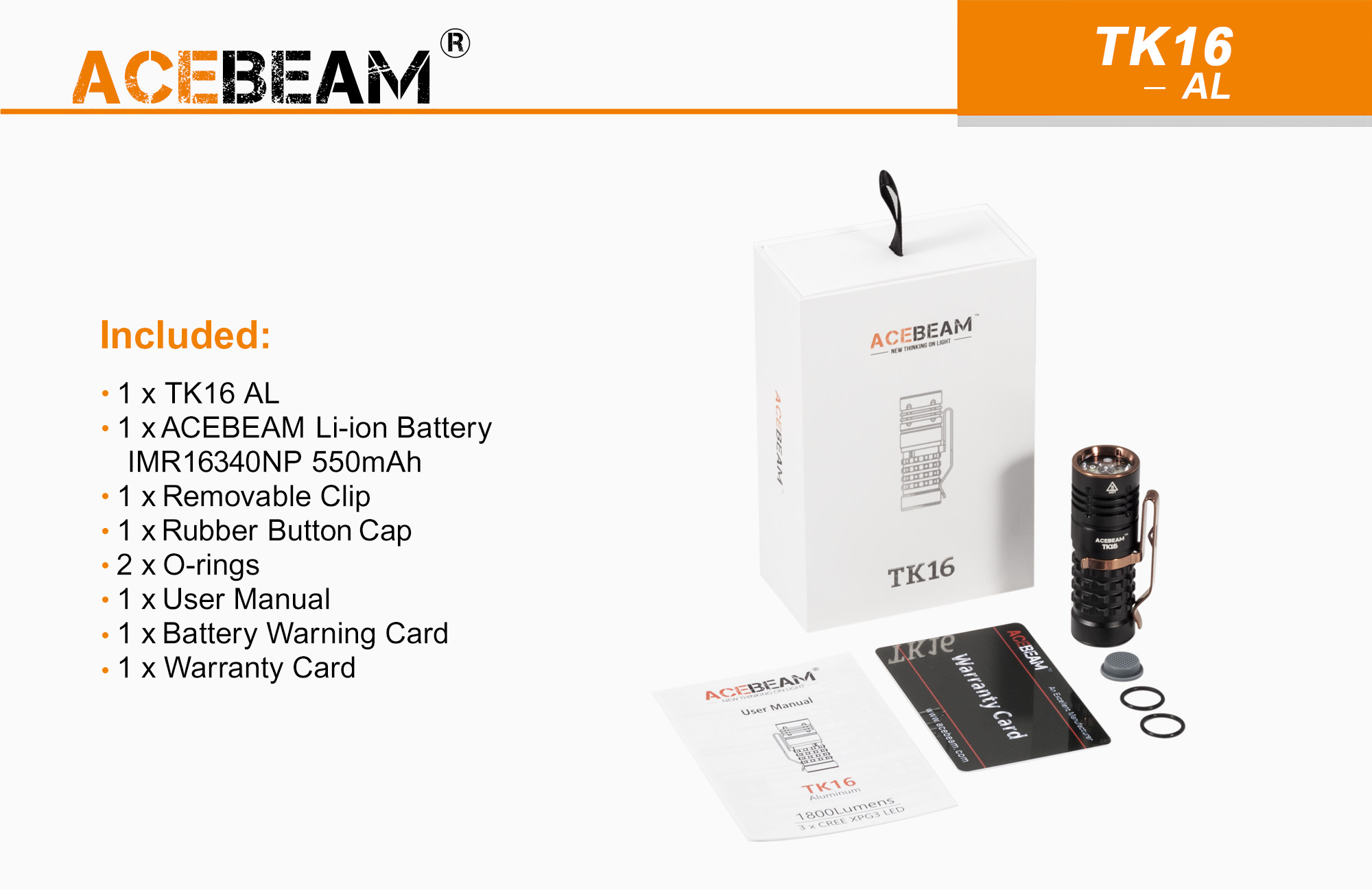

The package includes most of what’s needed, including a ACEBEAM branded IMR 16340 550 mAh rechargeable battery. The flashlight can use CR123A battery's as well, then with reduced power.
Points/Maximal points: 9,5/10

User manual
The user manual Includes all basic information, but I would appreciate a larger text font.
Points/Maximal points: 4,5/5

Available functions
All basic functions inclusive direct access to low mode is there.
There are both a Power and an ECO function on this flashlight., The ECO function reduce the power on Turbo mode to save some battery life.

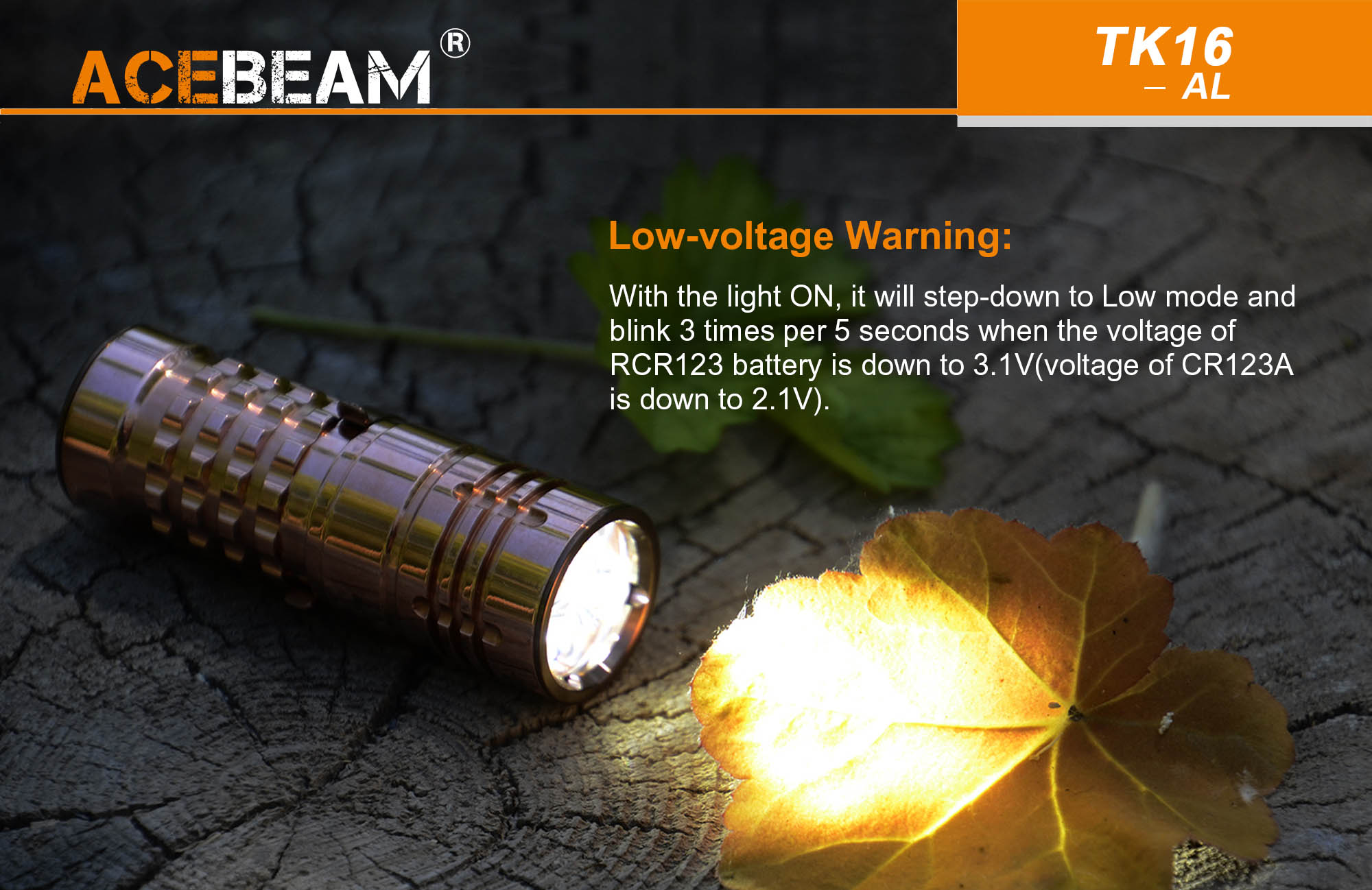

Low battery warning using the RCR123A battery16340: With the flashlight On, and the voltage dropping to 31V it will step down to low mode, and twinkle 3 times per 5 sec.
If you instead use the CR123A battery this warning will appear by 2.1V.
You can lock the light both electronically and mechanically, the last by simply turn the end cap 1/4 a turn or so.
Despite that the control button is in the rear, you can tail stand the flashlight on, for example, a table.
I would have liked a built-in charging possibility with a USBC charging function on the light, or at least,on the battery
Points/Maximal points: 9,5/10

Light performance
Bright for its size, 1 300Lumens/28 500 candela rated. That gives a calculated beam distance of throw for 338 m. My unprofessional measurements were a little lower than the rated values, but still an impressing range for this size of light tough.
Points/Maximal points: 8,5/10

Light "quality"
The Acebeam TK16 have, despite its quite a lot of throw, enough spill at the same time. This combination makes it very suitable to use is an EDC light.
My guestimate for the colour temperature is, between 5 000 and 6 000 K. I like that to.
Points/Maximal points: 9,5/10

Runtime
Runtimes is fairly good, for example Acebeam claims 50 min of runtime when using the High level (478 lumens), and 1h 15min using the High level in ECO mode.
When you use turbo mode is the runtime in practice very short. Little more runtime should have been possible if the battery size used was 18350 instead of RCR123 (16340). Of course, the flashlight should have been somewhat larger and heavier then…
Points/Maximal points: 9,5/10

Ease to use
The different flashlight functions are easy to understand and to use. The rubber control button is in the rear so you can always find it even, in the dark.
The kind of knurling used, provides a very god grip, vell balanced between grip and roughness.
It should have been even better with a pocket clip which admits that the flashlight can be kept bout lens up or lens down in your pocket.
Points/Maximal points: 9,5/10

Form factor
With its length of 66.5mm (2.61”) and a bezel diameter of 23 mm (0.9") and a weight including battery, of only 54g (1,9oz), makes this flashlight really pocketable, it is even easy to forget that you have the TK16 in your pocket. It is probably hard to make a flashlight with this kind of performance much smaller and lighter.
Points/Maximal points: 10/10

Build quality/finish
Very nice looks and finish. The cupper ring in front, and the copper-coloured pocket clip makes it even nicer!
Perfectly centred leds. It is a great feeling of quality in this flashlight.
Points/Maximal points: 10/10

Value for money
This flashlight is not the cheapest 16340 EDC light you can buy, but it has strong performance, is very well built, and is easy to use and carry.
That it also locks terrific doesn't make it worse...
Points/Maximal points: 8/10

Total points: 93/100 This is a “Five Star” product!

And finally, the most important questions: Want to have/buy again?
Yes, absolutely! When should walk outside, and reach for a flashlight, I most often automatically takes the Acebeam TK16 among the quit I few EDC light I own.
In my opinion This is a very good choice!

Regards
Lennart A.
Lennart | 7/29/2022 2:26 AM
New favorite EDC flashlight
I bought the OSRAM version of the TK16 and wow! It is an awesomely small torch! I can’t believe how much throw this has in such a small form factor. It is my new favorite EDC flashlight. The button is tactile and feels great. The UI is the same as most of the Acebeam flashlights which I am a huge fan of. It’s also a very aesthetically pleasing flashlight. I loved the TK16 so much that I bought the high CRI LUMINUS version which is absolutely fantastic as well for taking pictures in dark places or wanting to see things in their true color. I highly recommend this flashlight to anyone looking for a new EDC flashlight; you won’t regret buying this light.
| 12/7/2022 6:18 AM
