TK18 CU 18650 EDC Flashlight

1 review(s) | Add your review

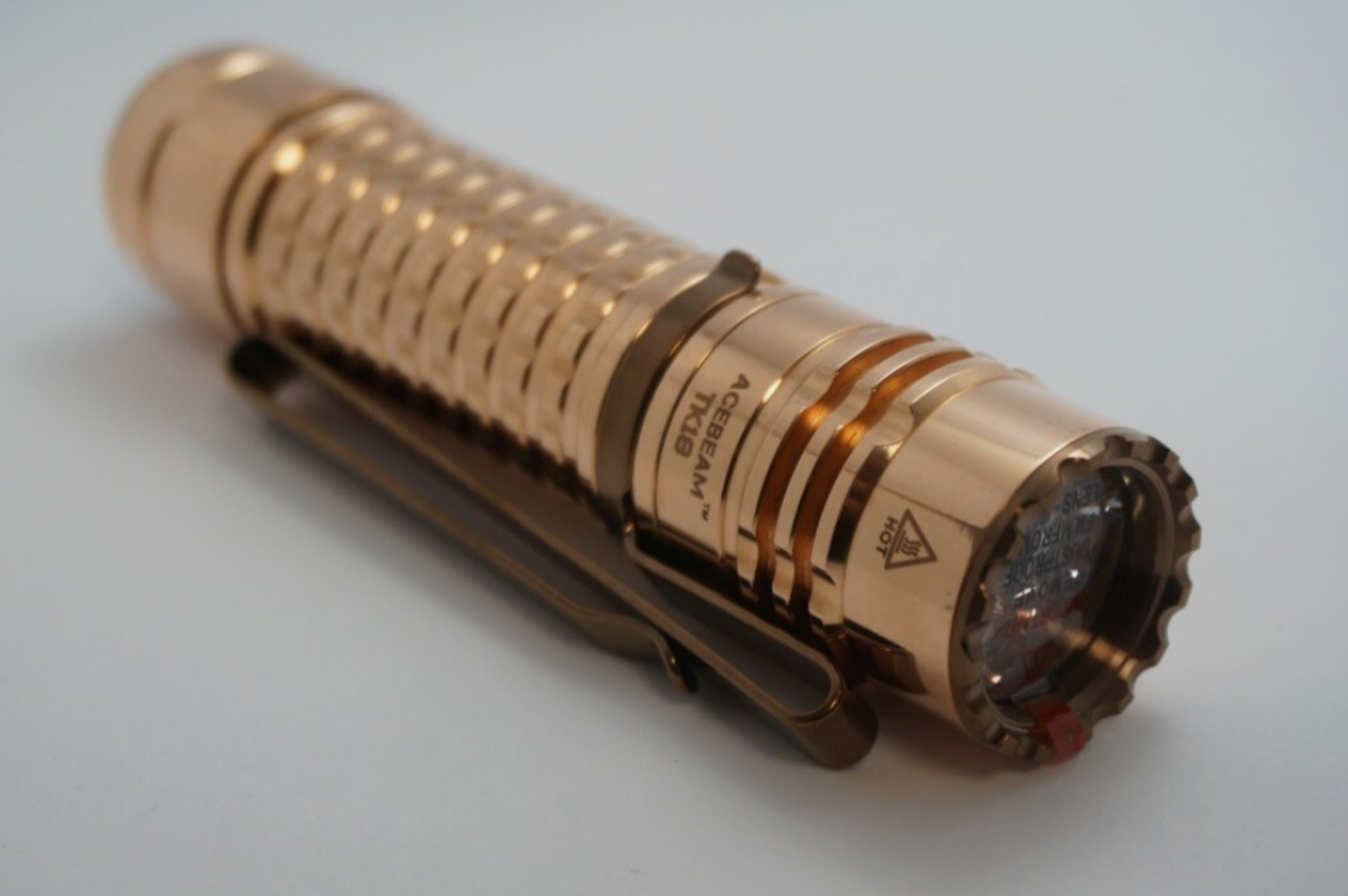

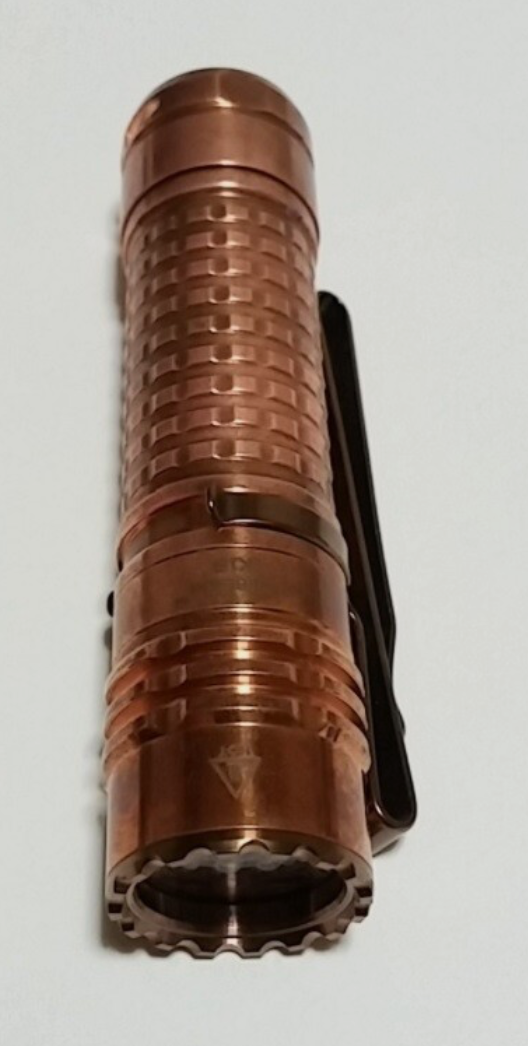

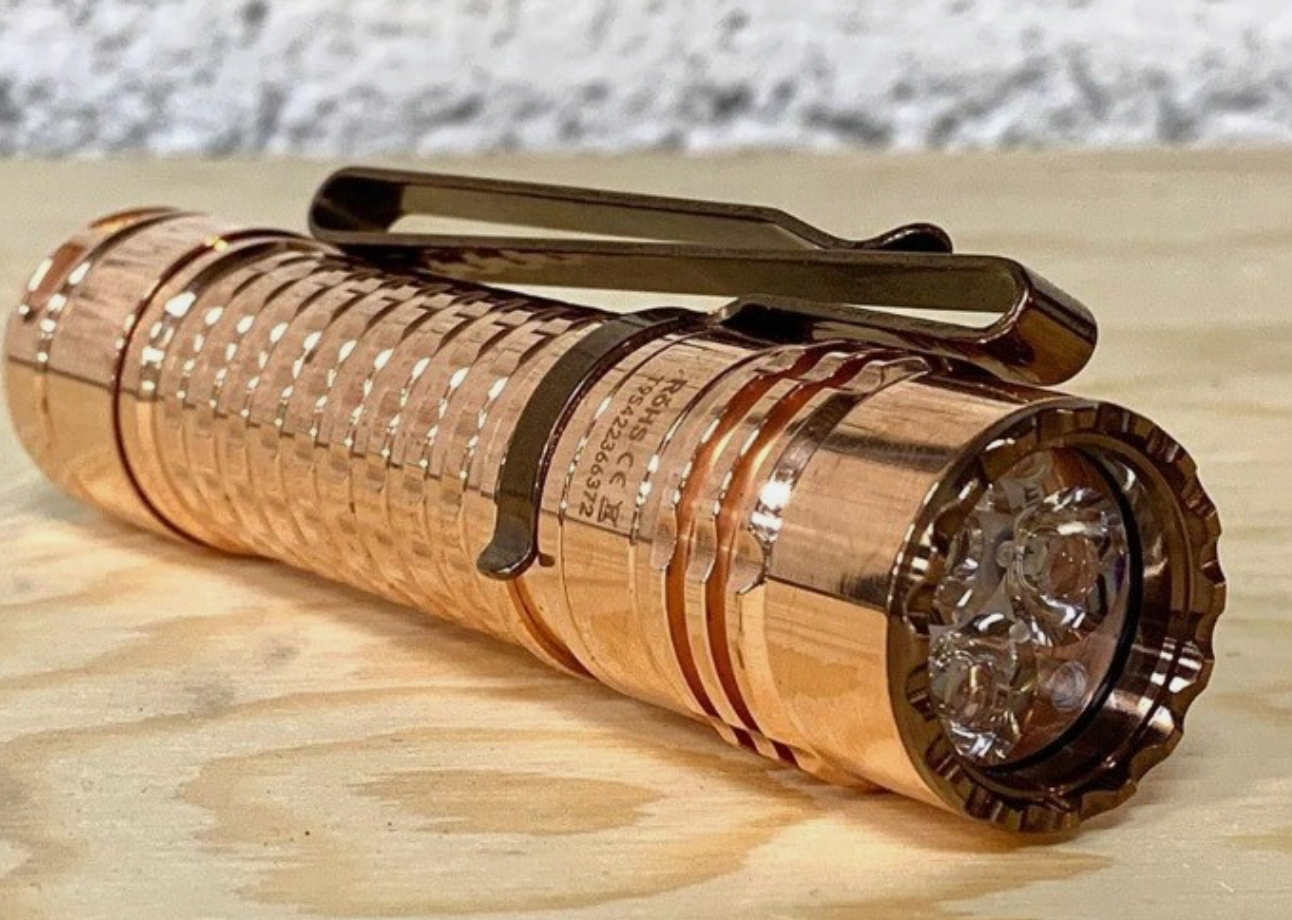

The versatile ACEBEAM TK18 is a full-featured general-purpose 18650 edc flashlight, law-enforcement. There is a selection of 3 different LEDs (SAMSUNG LH351D / OSRAM KW CSLNM1.TG / NICHIA 219C). 5 different brightness levels and Strobe are controlled using an integrated and intelligent tail switch. Being powered by an ACEBEAM ARC18650H-310A high drain rechargeable battery, both POWER and ECO mode can be activated. It has ECO mode when running on two CR123A 1600mAh battery. A TIR optimized lens helps soften and focus that impeccable light into a focused beam. Double directional gold plated pocket clip and compact size make it easy to carry around on your pocket. Ergonomic knurling on the canister makes it easy to grip comfortably in the palm of your hand with no strain or cramping even over long periods of time.

$99.90

Availability:

22 in stock

LED Options:

3*OSRAM KW CSLNM1.TG
3*NICHIA 219C
3*SAMSUNG LH351D

Batteries:

10A 18650 3100MAH USB Charging [+$19.90]

Size: 105mm (Length) x 25.5mm (Head Diameter) x 23mm (Tube Diameter):

Weight: 124.5g w/o battery:

Qty:

+ -

Overview
Reviews
Contact Us

Features:

LED option 1: 3xSAMSUNG LH351D
When using ACEBEAM 18650 3100mAh 20A high drain rechargeable battery:
POWER Mode
Ultra-Low: 3 lumens; 12 days; 5 meters; 7cd
Low: 80 lumens; 22 hours; 24 meters; 150cd
Med: 200 lumens; 7 hours 15 minutes; 41 meters; 430cd
High: 1000 lumens; 2 hours; 95 meters; 2250cd
Turbo: 3000 lumens; 1 hour 30 minutes; 156 meters; 6110cd
Strobe: 1100 lumens; 2 hours 15 minutes

ECO Mode
Ultra-Low: 3 lumens; 9 days; 5 meters; 7cd
Low: 80 lumens; 17 hours; 24 meters; 150cd
Med: 200 lumens; 6 hours; 41 meters; 430cd
High: 630 lumens; 1 hour 45 minutes; 72 meters; 1300cd
Turbo: 1450 lumens; 1 hour 30 minutes; 111 meters; 3080cd
Strobe: 1100 lumens; 2 hours

When using CR123A 1600mAh battery:
ECO Mode
Ultra-Low: 3 lumens; 12 days; 5 meters; 7cd
Low: 80 lumens; 22 hours; 24 meters; 150cd
Med: 200 lumens; 7 hours 15 minutes; 41 meters; 430cd
High: 630 lumens; 2 hours; 72 meters; 1300cd
Turbo: 1100 lumens; 1 hour 45 minutes; 95 meters; 2250cd
Strobe: 1100 lumens; 2 hours 15 minutes

LED option 2: 3xOSRAM KW CSLNM1.TG
When using ACEBEAM 18650 3100mAh 20A high drain rechargeable battery:
POWER Mode
Ultra-Low: 3 lumens; 12 days; 11 meters; 30cd
Low: 80 lumens; 22 hours; 57 meters; 810cd
Med: 170 lumens; 7 hours 15 minutes; 85 meters; 1800cd
High: 810 lumens; 1 hour 45 minutes; 184 meters; 8500cd
Turbo: 1900 lumens; 1 hour 30 minutes; 286 meters; 20500cd
Strobe: 810 lumens; 2 hours 15 minutes

ECO Mode
Ultra-Low: 3 lumens; 12 days; 11 meters; 30cd
Low: 80 lumens; 22 hours; 57 meters; 810cd
Med: 170 lumens; 7 hours 15 minutes; 85 meters; 1800cd
High: 430 lumens; 2 hours; 134 meters; 4510cd
Turbo: 810 lumens; 1 hour 45 minutes; 184 meters; 8500cd
Strobe: 810 lumens; 2 hours 15 minutes

When using CR123A 1600mAh battery:
ECO Mode
Ultra-Low: 3 lumens; 9 days; 11 meters; 30cd
Low: 80 lumens; 17 hours; 57 meters; 810cd
Med: 170 lumens; 6 hours; 85 meters; 1800cd
High: 430 lumens; 2 hours; 134 meters; 4510cd
Turbo: 1060 lumens; 1 hour 30 minutes; 212 meters; 11200cd
Strobe: 810 lumens; 2 hours

LED option 3: 3xNICHIA 219C
When using ACEBEAM 18650 3100mAh 20A high drain rechargeable battery:
POWER Mode
Ultra-Low: 2.4 lumens; 12 days; 7 meters; 13cd
Low: 50 lumens; 22 hours; 35 meters; 300cd
Med: 130 lumens; 7 hours 15 minutes; 55 meters; 750cd
High: 700 lumens; 2 hours; 125 meters; 3900cd
Turbo: 1650 lumens; 1 hour 45 minutes; 191 meters; 9160cd
Strobe: 700 lumens; 2 hours 15 minutes

ECO Mode
Ultra-Low: 2.4 lumens; 12 days; 7 meters; 13cd
Low: 50 lumens; 22 hours; 35 meters; 300cd
Med: 130 lumens; 7 hours 15 minutes; 55 meters; 750cd
High: 370 lumens; 2 hours; 95 meters; 2250cd
Turbo: 700 lumens; 1 hour 45 minutes; 125 meters; 3900cd
Strobe: 700 lumens; 2 hours 15 minutes

When using CR123A 1600mAh battery:
ECO Mode
Ultra-Low: 2.4 lumens; 9 days; 7 meters; 13cd
Low: 50 lumens; 17 hours; 35 meters; 300cd
Med: 130 lumens; 6 hours; 55 meters; 750cd
High: 370 lumens; 1 hour 45 minutes; 95 meters; 2250cd
Turbo: 880 lumens; 1 hour 30 minutes; 141 meters; 5000cd
Strobe: 700 lumens; 2 hours

Size: 105mm (Length) x 25.5mm (Head Diameter) x 23mm (Tube Diameter)
Weight: 124.5g w/o battery
Max output 3000 lumens
Max running time 12 days
Max beam distance 286 meters
Peak beam intensity 20500cd

Multiple LED choices with maximum versatility:
3xSAMSUNG LH351D LED output 3000 lumens
3xOSRAM KW CSLNM1.TG LED throw 286 meters
3xNICHIA 219C LED CRI ≥90 color rendering
Compatible Battery: 1 x ACEBEAM ARC18650H- 310A rechargeable battery (recommended) / 2 x CR123A 1600mAh battery
The POWER mode will be operational only when being powered by 18650 battery which is above 10A current
Low battery voltage warning with flickering
Highly efficient constant circuit design (Mon-PWM)
Strobe setting that can disorient an attacker or serve as a distress signal
Intelligent highly efficient circuit board design for max. performance and long run time
Intelligent temperature controlled light output for user safety
Innovative body construction is made of solid billet ultra conductive pure red copper

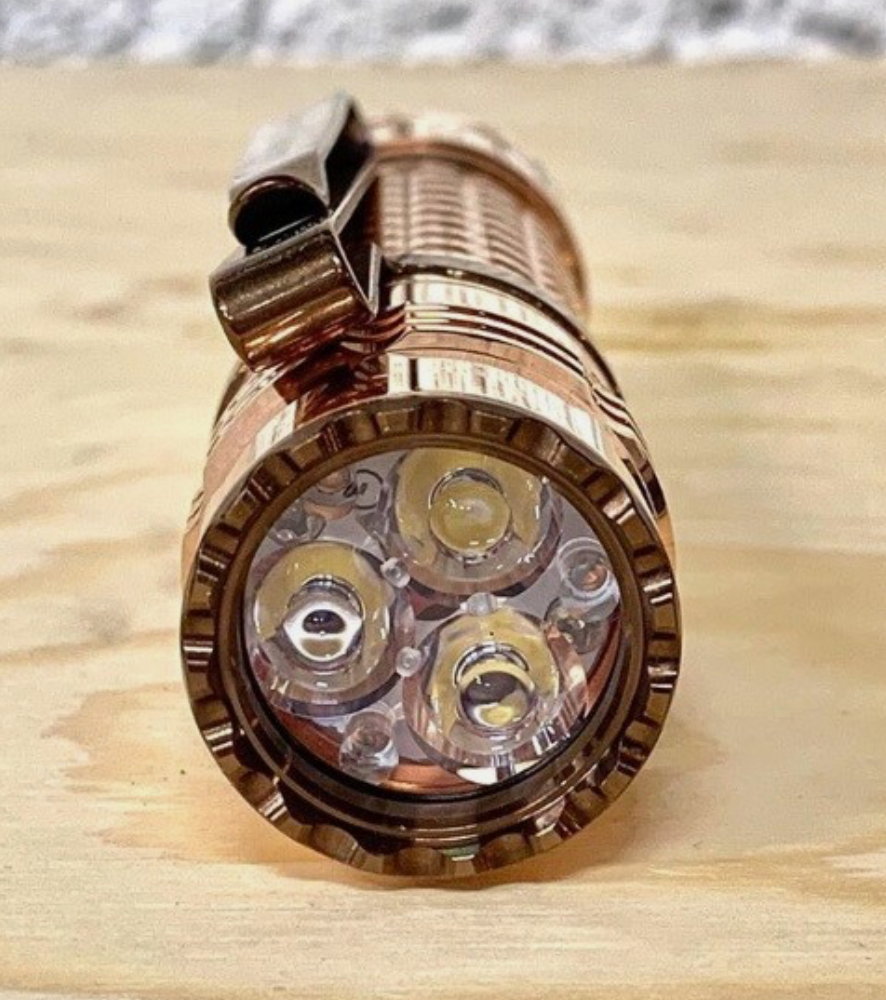

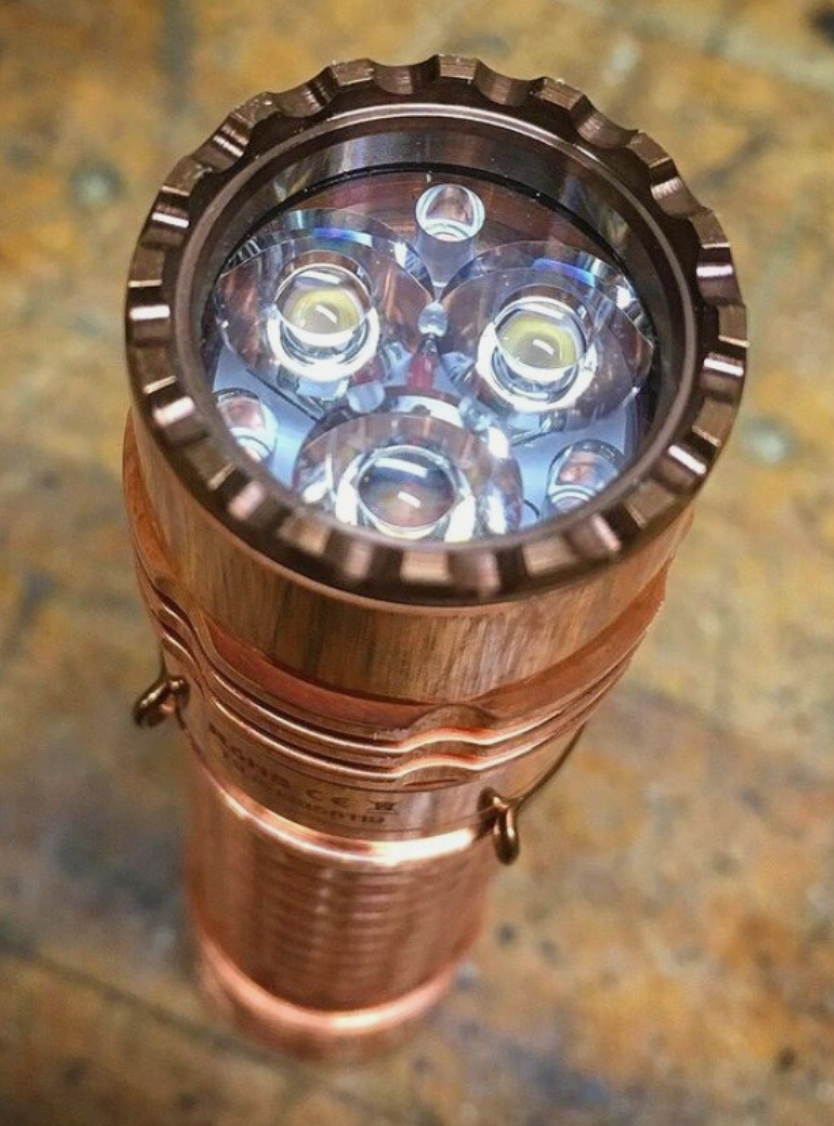

TIR (Total Internal Reflection) optic facilitates efficient light transmission with a broad beam and a generous throw
Highly integrated tail switch switch for all easy operation
Knurling and polishing finish provide a secure grip
Double directional gold plated clip and compact size for easy carry
Streamlined body with slim head design
Underwater 2 meters submersible
1 meter impact resistance

Warning

1. The pure copper will change color slowly because of oxidation when exposing in the air. The color will show much difference by frequently play according to the using environment and using habit.
2. In order to achieve POWER & ECO modes, the TK18 Cu must be powered by 18650 battery that can produce at least 10 Amps of current. There will only ECO mode when using the 18650 battery current < 10 Amps or 2xCR123 batteries.
3. Unauthorized disassembly may damage the flashlight and void the warranty.
4. It is normal if the surface heat is increased during use due to the excellent thermal conductivity technology. It is suggested to use in a well ventilated area with ambient temperature.
5. Caution hot when using continuously for a long time. Do not put it on flammable materials for a long time, any fire or any safety problems caused by this will not be related to the manufacturer and distributors.
6. Please check and replace the O-ring regularly to maintain the waterproof rating.
7. Please check and lubricate the threads regularly with professional lubricant.
8. Clean the contact surfaces regularly to keep the flashlight normal operation. If irregular strobe or failure to turn-on occurs, the contact surfaces may be dirty and requires cleaning by using alcohol cotton swabs.
9. Remove the battery from the flashlight during long term storage.
10. This flashlight is not intended to be used as a diving light.
11. Do not aim the flashlight directly at eyes. Users must be over 18 years of age. Keep out of the reach of children.
