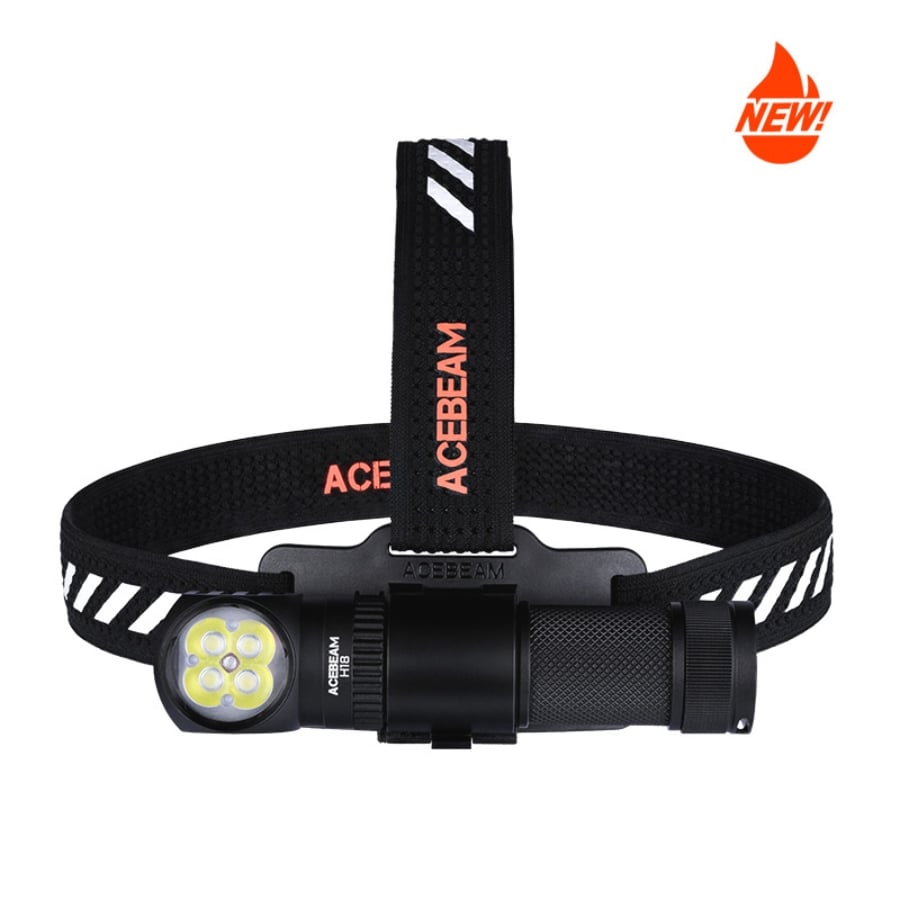

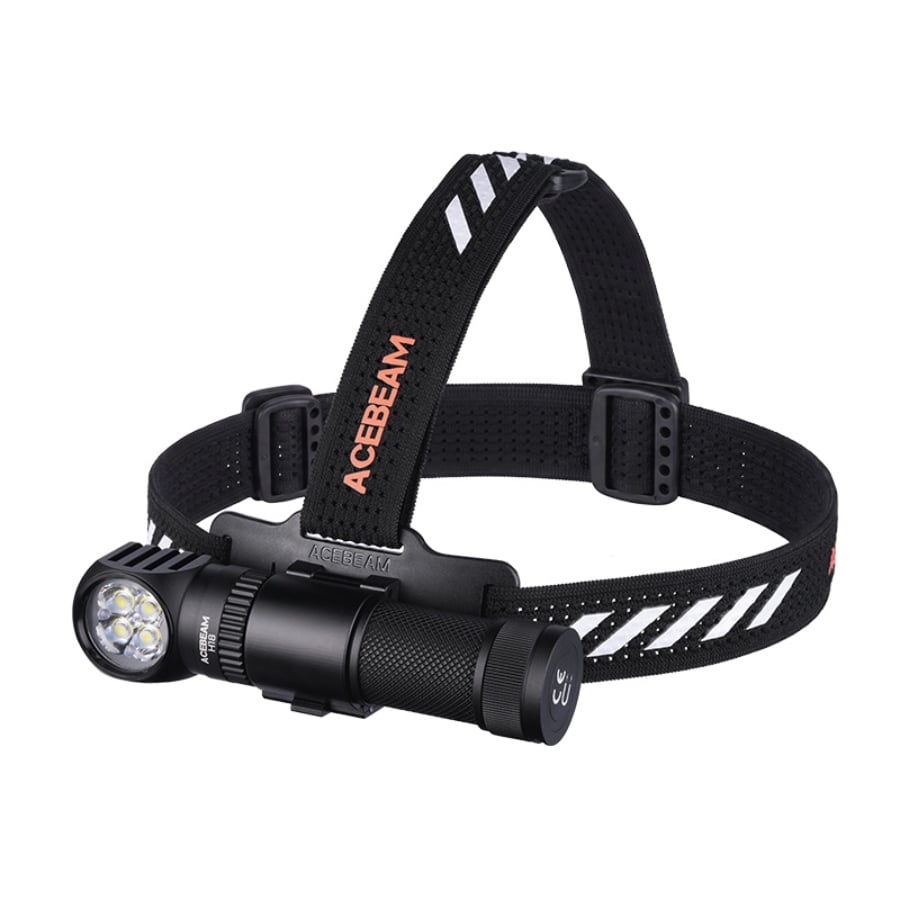

Dual-Source right angle headlamp outputting 4000 lumens with quick detach bracket and 6400mAh battery

Overview of core features including frosted optical glass lens, red light mode, and IP68 waterproof rating

150-degree wide angle flood beam providing total awareness in industrial and outdoor environments

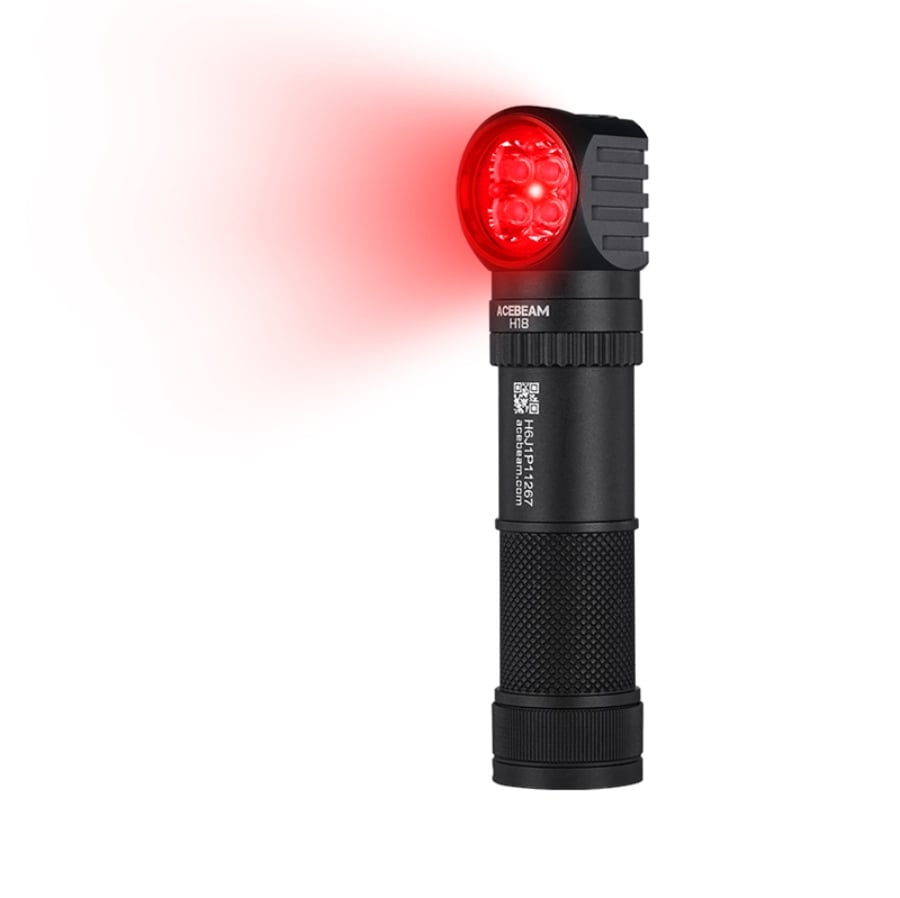

Red light mode designed for stealth, night vision preservation, and bug-free camping

Versatile mounting options allowing use as a headlamp, pocket light, magnetic work light, or handheld flashlight

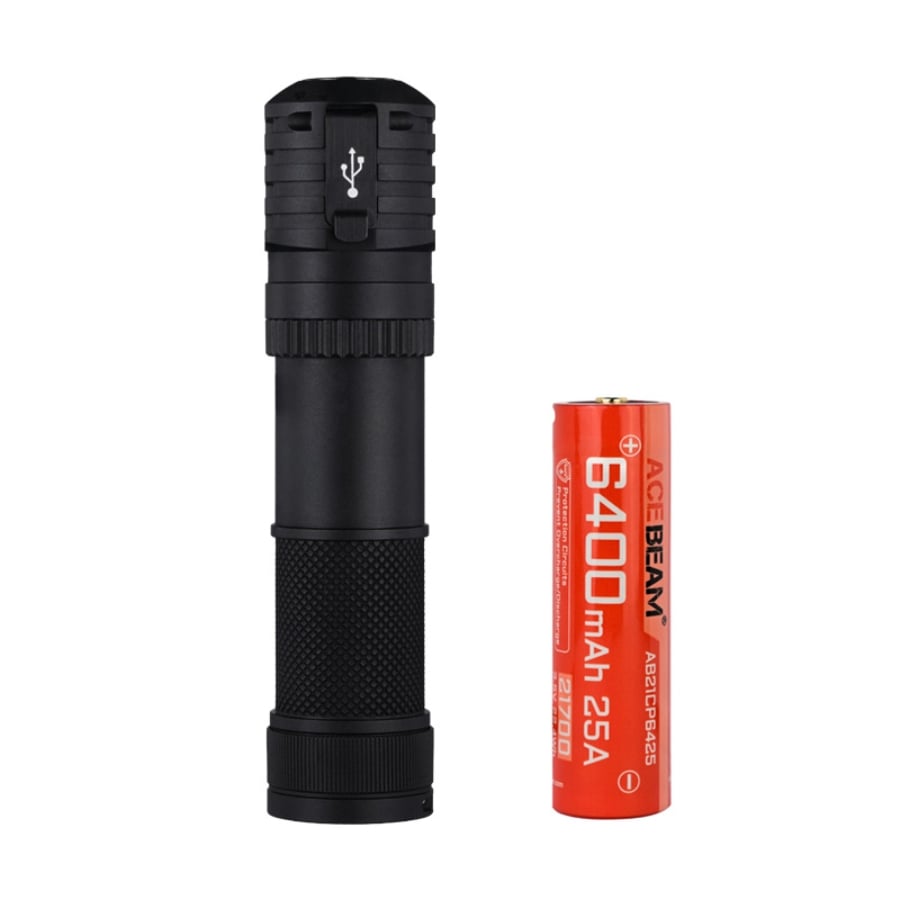

Runtime and output comparison showing the advantage of the included 6400mAh 21700 battery

Convenient USB-C rechargeable design allowing fast top-ups from laptops or power banks

Demonstration of the patented quick-detach bracket for easily removing or snapping the light into place

Lightweight construction detailing physical dimensions and a total system weight of 190.6 grams for maximum comfort

Comparison between 6500K cool white and 5000K neutral white LED options in a forest setting

Intuitive single stainless steel switch for easy blind operation in pitch-black conditions

180-degree adjustable tilt angle for directing the beam perfectly during outdoor navigation

Durable aerospace-grade aluminum body undergoing rain and drop tests to highlight IP68 and 2-meter impact resistance

Professional use cases showcasing the headlamp in railway tunnels, industrial facilities, and caves

Complete package contents including carrying case, battery, pocket clip, O-rings, and dual-use USB-C lanyard

Details

LED: 6500K cool white, up to 4000 lumens and 162 meters; or 5000K neutral white, up to 2700 lumens and 140 meters.
Dual Light Sources: Wide-angle white light and red light for night vision.
Quick Detach Bracket: Snap the light on or off quickly, and the physical safety lock firmly secures it.
180° Tilt: With precise light, it gives you the confidence to move safely and surely, step by step.
Eye Protection: Equipped with non-PWM dimming, providing stable, flicker-free light.
Charging: USB-C port on the body with a durable metal cover; the battery itself also features a USB-C port.
Build: AL6061-T6 high-quality aluminum alloy, HA III hard-anodized finish. Withstands 2-meter drop.
Waterproof: IP68 rated, fully submersible to 2 meters for 30 minutes.

Battery

Included: One 21700 6400mAh Rechargeable Li-ion Battery (supports 25A continuous discharge).

Size & Weight

Length: 119.2mm / 4.69"
Head Dia: 27mm / 1.06"
Tube Dia: 23.8mm / 0.94"
Weight: 70g / 2.47oz (body); 190.6g / 6.72oz (battery, bracket, and headband included)

Outputs & Runtime

Tested with 6500K Cool White LEDs

Mode	Output (Lumens)	Runtime	Distance	Intensity
Ultra Low	7	280h	8m	16 cd
Low	45	60h	20m	100 cd
Med 1	220	13h	39m	380.25 cd
Med 2	420	7h	52m	676 cd
High	1400 ~ 700	2min ~ 3h 40min	100m	2500 cd
Turbo	4000 ~ 700	30s ~ 3h 40min	162m	6561 cd
SOS	45	150h	20m	100 cd

5000K Neutral White LED

Tested with 5000K Neutral White LEDs

Mode	Output (Lumens)	Runtime	Distance	Intensity
Ultra Low	6	280h	8m	16 cd
Low	33	60h	17m	72.25 cd
Med 1	160	13h	32m	256 cd
Med 2	300	7h	45m	506.25 cd
High	990 ~ 500	2min ~ 3h 40min	81m	1640.25 cd
Turbo	2700 ~ 500	30s ~ 3h 40min	140m	4900 cd
SOS	33	150h	17m	72.25 cd

Red Light LED

For night vision preservation

Mode	Output (Lumens)	Runtime	Distance	Intensity
Low	4	190h	—	—
Med	15	53h	11m	30.25 cd
High	35	23h	21m	110.25 cd
Turbo	70	8h	25m	156.25 cd

Max Output: 4000 Lumens (6500K) / 2700 Lumens (5000K) / 70 Lumens (Red) · Max Throw: 162 Meters · Max Runtime: 280 Hours · Peak Intensity: 6561 cd

Frequently Asked Questions

Q: What light sources does the H18 have?

A: It features four powerful white LEDs (6500K cool white or 5000K neutral white) plus a red light for night vision preservation.

Q: How bright is the white light?

A: It delivers up to 4,000 lumens through an optical glass lens, producing a smooth, non-PWM wide flood beam.

Q: What battery does it use, and what is the capacity?

A: It uses a high-capacity 21700 rechargeable battery with 6400mAh capacity and a 25A discharge rate for extended runtimes and instant turbo access.

Q: How do I recharge it?

A: Via the USB-C port (with a rugged metal cover), using the same cable as your phone. Or directly charge the battery through its USB-C port.

Q: Is the headlamp waterproof and durable?

A: Yes, it is IP68 waterproof and drop-tested from 2 metres. The body is CNC-machined from aerospace-grade AL6061-T6 aluminum with a hard-anodized finish.

Q: How does it mount and adjust?

A: It comes with a quick-detach bracket that locks firmly but snaps on/off easily, and the tilt angle is adjustable so you can direct the beam without neck strain.

Q: How much does it weigh?

A: The body weighs only 70g; the full set (including battery, bracket, and headband) weighs 190.6g.

Q: Is the headband comfortable?

A: Yes, it is soft and breathable, reducing fatigue during long use.

Q: What is the red light for?

A: It preserves your night vision and is ideal for low-light observation and stealth work.
