Details

LED: 6500K cool white, 4000 lumens and 162 meters; or 5000K neutral white, 2700 lumens and 140 meters.
Dual Light Sources: Wide-angle white light and red light for night vision.

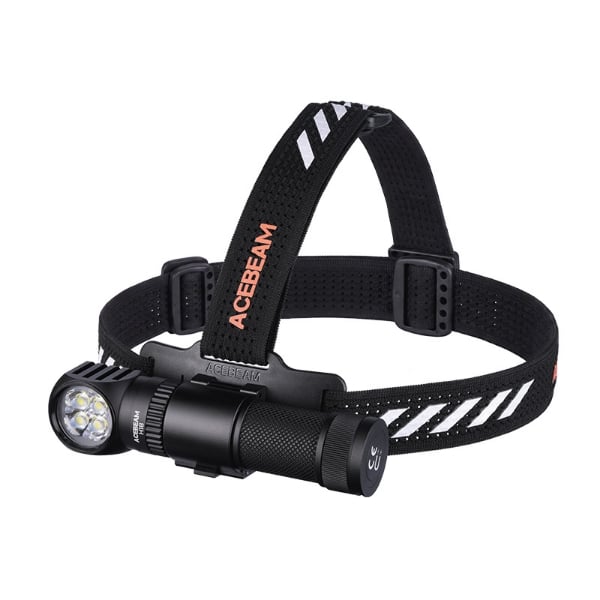

Quick Detach Bracket: Snap the light on or off quickly, and the physical safety lock firmly secures it.
180° Tilt: With precise light, it gives you the confidence to move safely and surely, step by step.
Eye Protection: Equipped with non-PWM dimming, providing stable, flicker-free light.

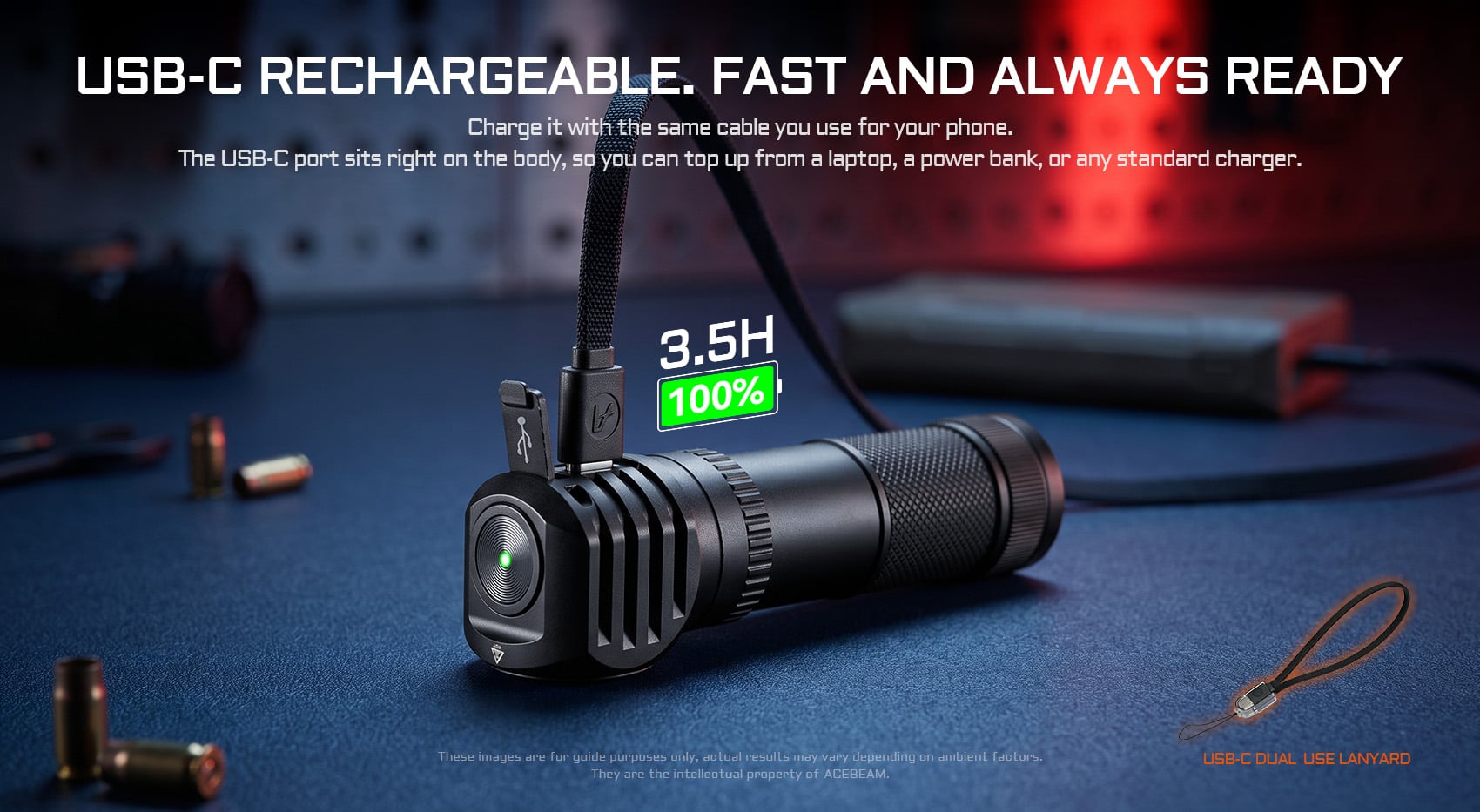

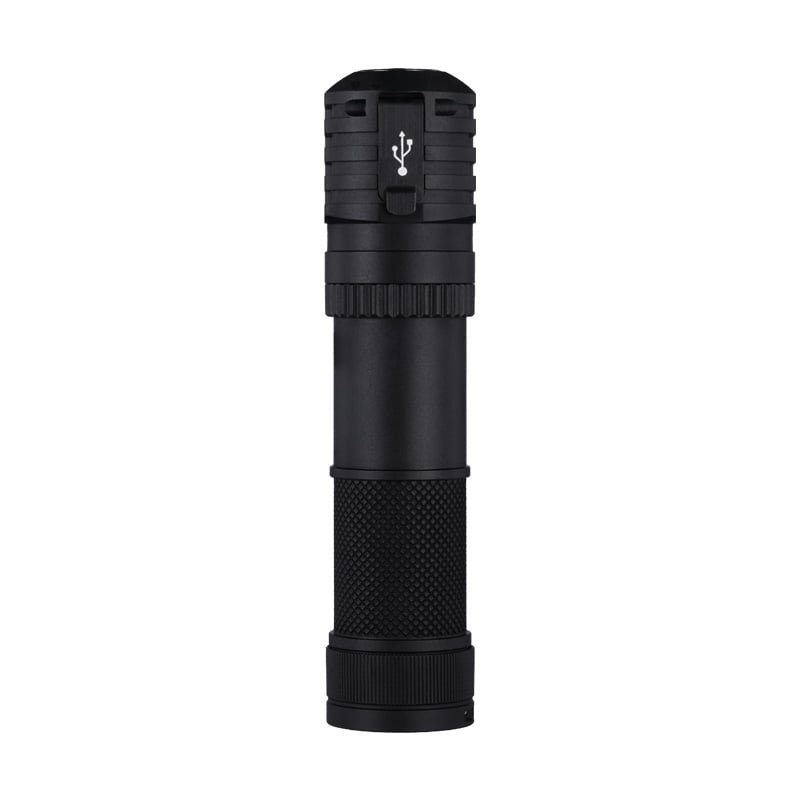

Charging: USB-C port on the body with a durable metal cover; the battery itself also features a USB-C port.

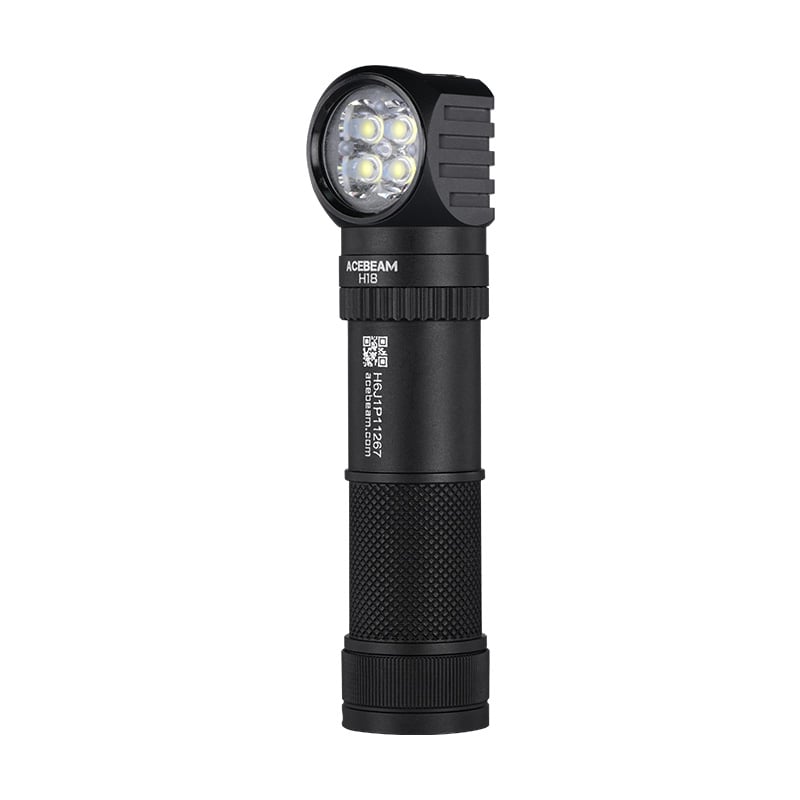

Build: AL6061-T6 high-quality aluminum alloy, HA III hard-anodized finish. Withstands 2-meter drop.
Waterproof: IP68 rated, fully submersible to 2 meters for 30 minutes.

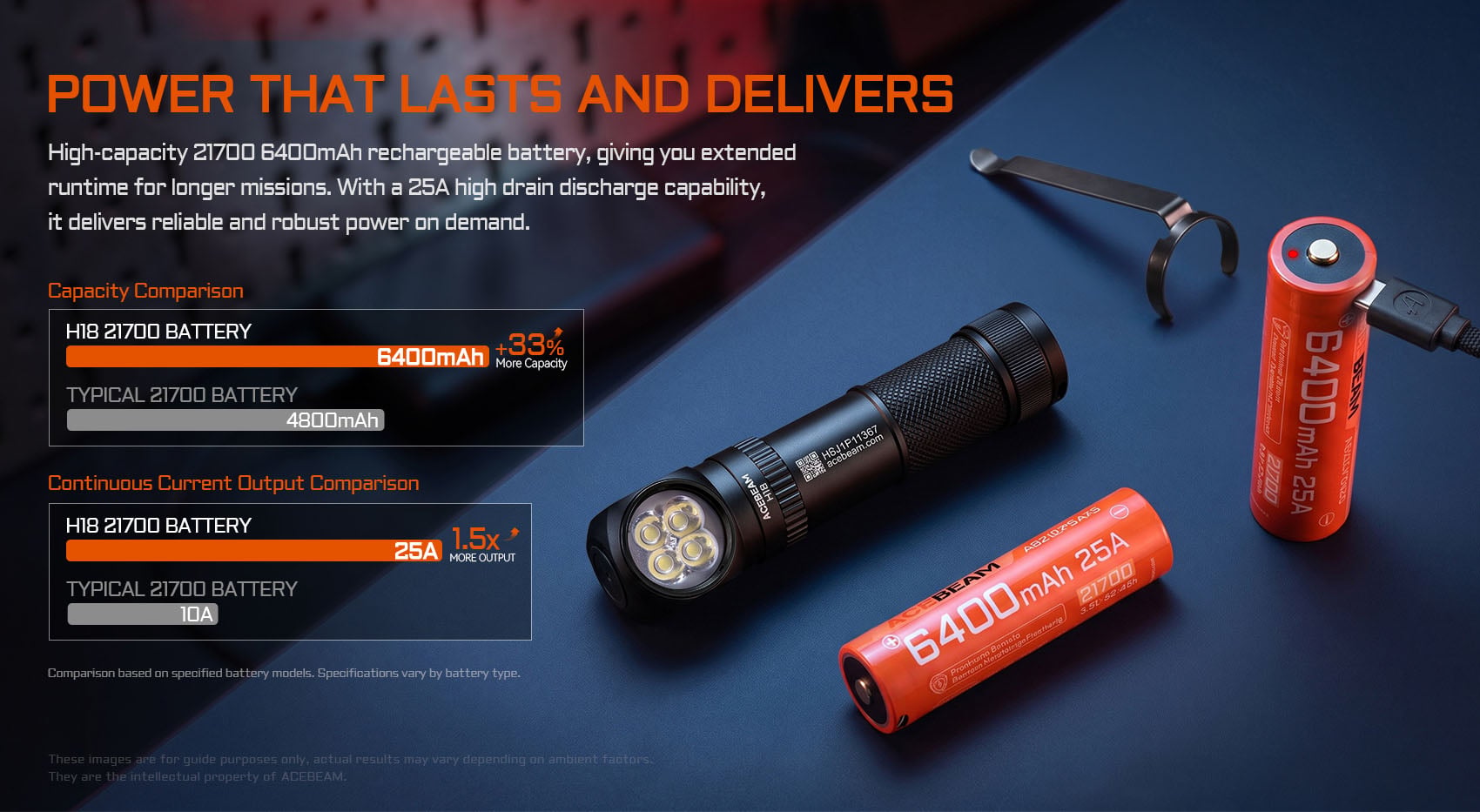

Battery

Included: One 21700 6400mAh Rechargeable Li-ion Battery (supports 25A continuous discharge).

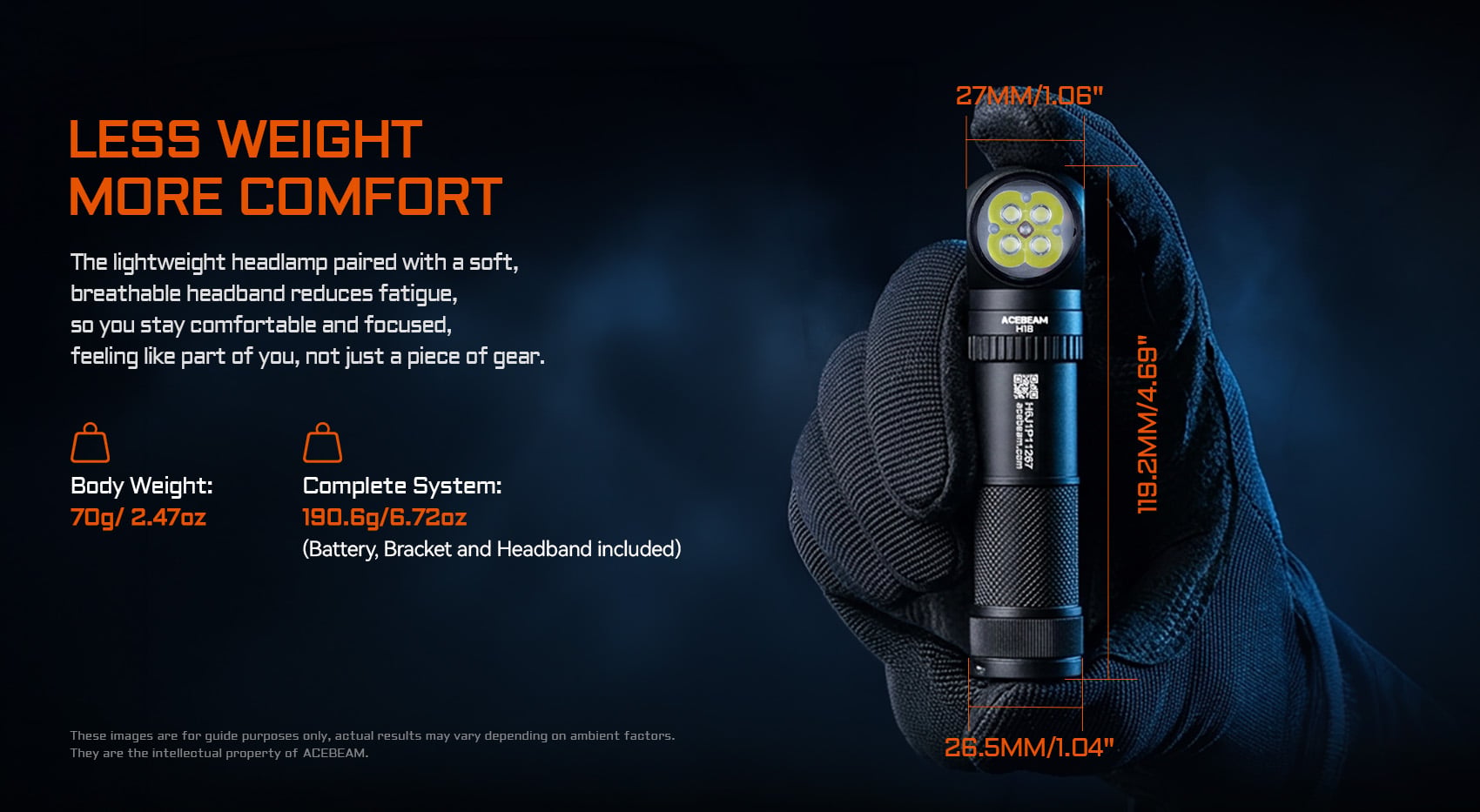

Size & Weight

Length: 119.2mm / 4.69"
Head Dia: 27mm / 1.06"
Tube Dia: 23.8mm / 0.94"
Weight: 70g / 2.47oz (body); 190.6g / 6.72oz (battery, bracket, and headband included)

Outputs & Runtime

Tested with 1 x 6500K Cool White LED

Mode	Output (Lumens)	Runtime	Distance	Intensity
Ultra Low	7	280h	8m	16 cd
Low	45	60h	20m	100 cd
Med 1	220	13h	39m	380.25 cd
Med 2	420	7h	52m	676 cd
High	1400 ~ 700	2min ~ 3h 40min	100m	2500 cd
Turbo	4000 ~ 700	30s ~ 3h 40min	162m	6561 cd
SOS	45	150h	20m	100 cd

5000K Neutral White LED

Tested with 1 x 5000K Neutral White LED

Mode	Output (Lumens)	Runtime	Distance	Intensity
Ultra Low	6	280h	8m	16 cd
Low	33	60h	17m	72.25 cd
Med 1	160	13h	32m	256 cd
Med 2	300	7h	45m	506.25 cd
High	990 ~ 500	2min ~ 3h 40min	81m	1640.25 cd
Turbo	2700 ~ 500	30s ~ 3h 40min	140m	4900 cd
SOS	33	150h	17m	72.25 cd

Red Light LED

For night vision preservation

Mode	Output (Lumens)	Runtime	Distance	Intensity
Low	4	190h	—	—
Med	15	53h	11m	30.25 cd
High	35	23h	21m	110.25 cd
Turbo	70	8h	25m	156.25 cd

Max Output: 4000 Lumens (6500K) / 2700 Lumens (5000K) / 70 Lumens (Red) · Max Throw: 162 Meters · Max Runtime: 280 Hours · Peak Intensity: 6561 cd

Frequently Asked Questions

Q: What light sources does the H18 have?

A: It features four powerful white LEDs (6500K cool white or 5000K neutral white) plus a red light for night vision preservation.

Q: How bright is the white light?

A: It delivers up to 4,000 lumens through an optical glass lens, producing a smooth, non-PWM wide flood beam.

Q: What battery does it use, and what is the capacity?

A: It uses a high-capacity 21700 rechargeable battery with 6400mAh capacity and a 25A discharge rate for extended runtimes and instant turbo access.

Q: How do I recharge it?

A: Via the USB-C port (with a rugged metal cover), using the same cable as your phone. Or directly charge the battery through its USB-C port.

Q: Is the headlamp waterproof and durable?

A: Yes, it is IP68 waterproof and drop-tested from 2 metres. The body is CNC-machined from aerospace-grade AL6061-T6 aluminum with a hard-anodized finish.

Q: How does it mount and adjust?

A: It comes with a quick-detach bracket that locks firmly but snaps on/off easily, and the tilt angle is adjustable so you can direct the beam without neck strain.

Q: How much does it weigh?

A: The body weighs only 70g; the full set (including battery, bracket, and headband) weighs 190.6g.

Q: Is the headband comfortable?

A: Yes, it is soft and breathable, reducing fatigue during long use.

Q: What is the red light for?

A: It preserves your night vision and is ideal for low-light observation and stealth work.

Be the first to review this product

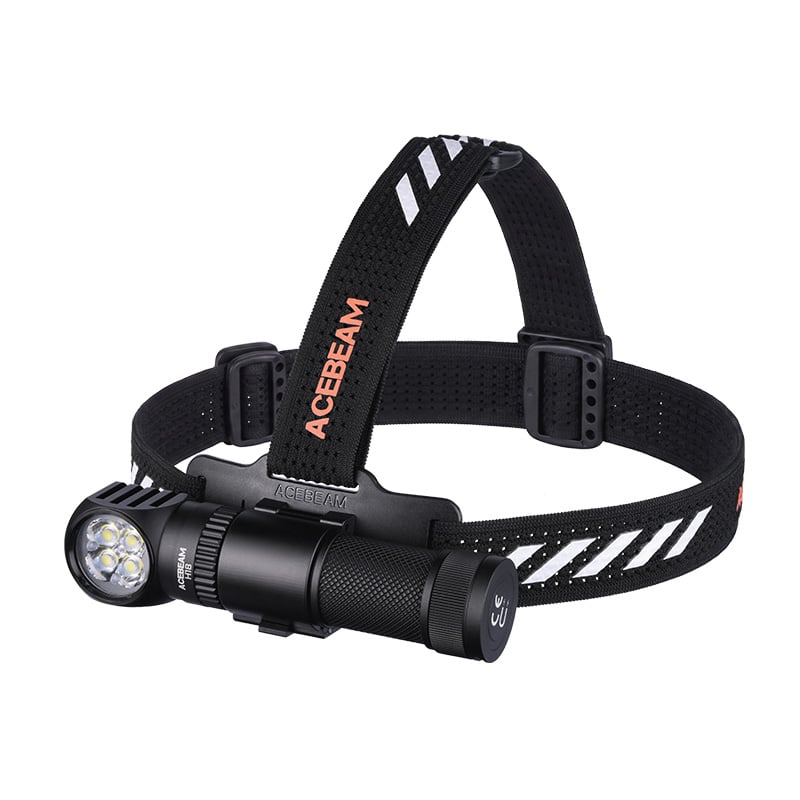

H18 Dual Light Right Angle Headlamp
