• Two LED options:

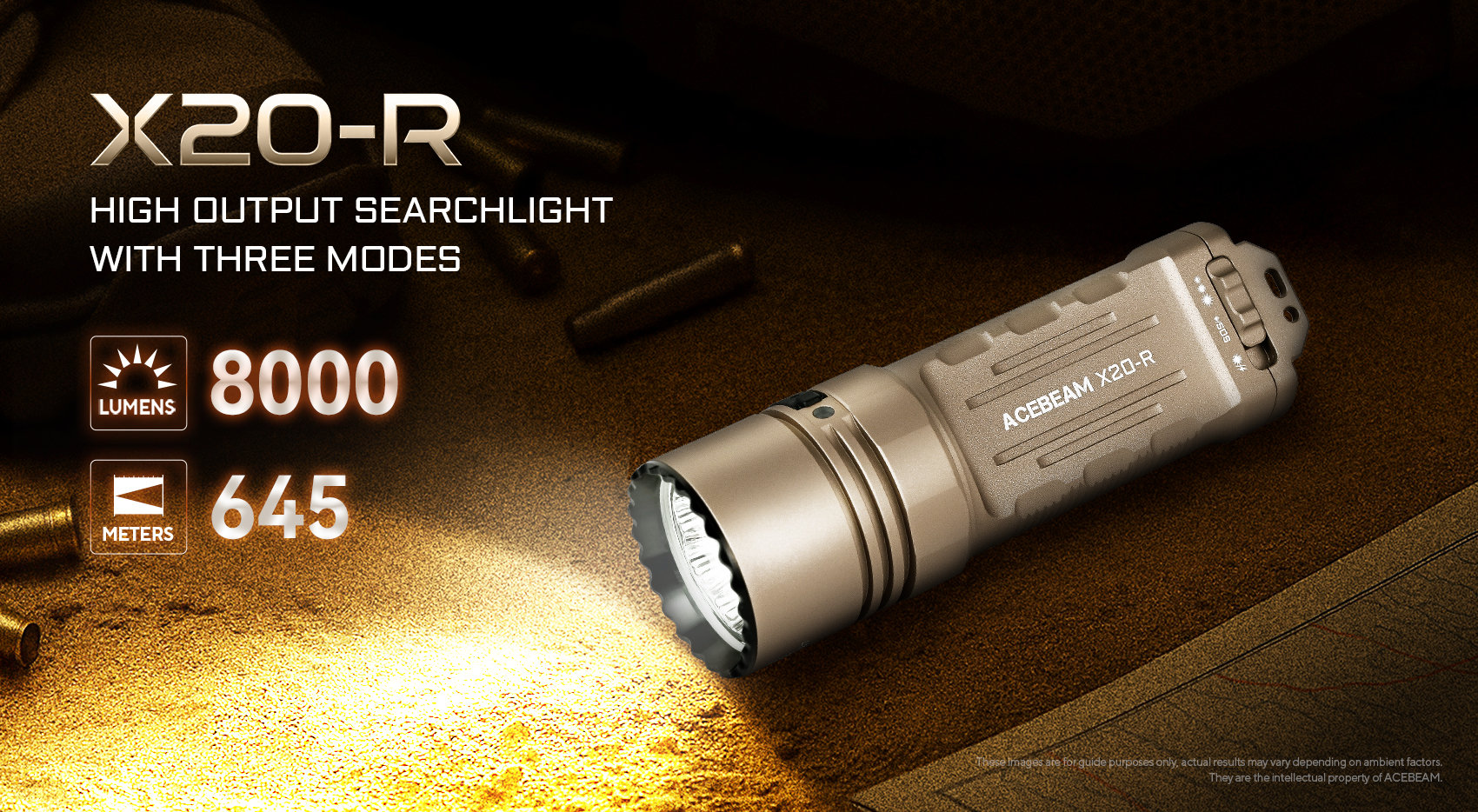

-8 x SFT-25R HI LEDs, max output 8000 lumens, throw up to 645 meters
-8 x LUXEON HL4X LEDs, max output 10000 lumens, throw up to 440 meters

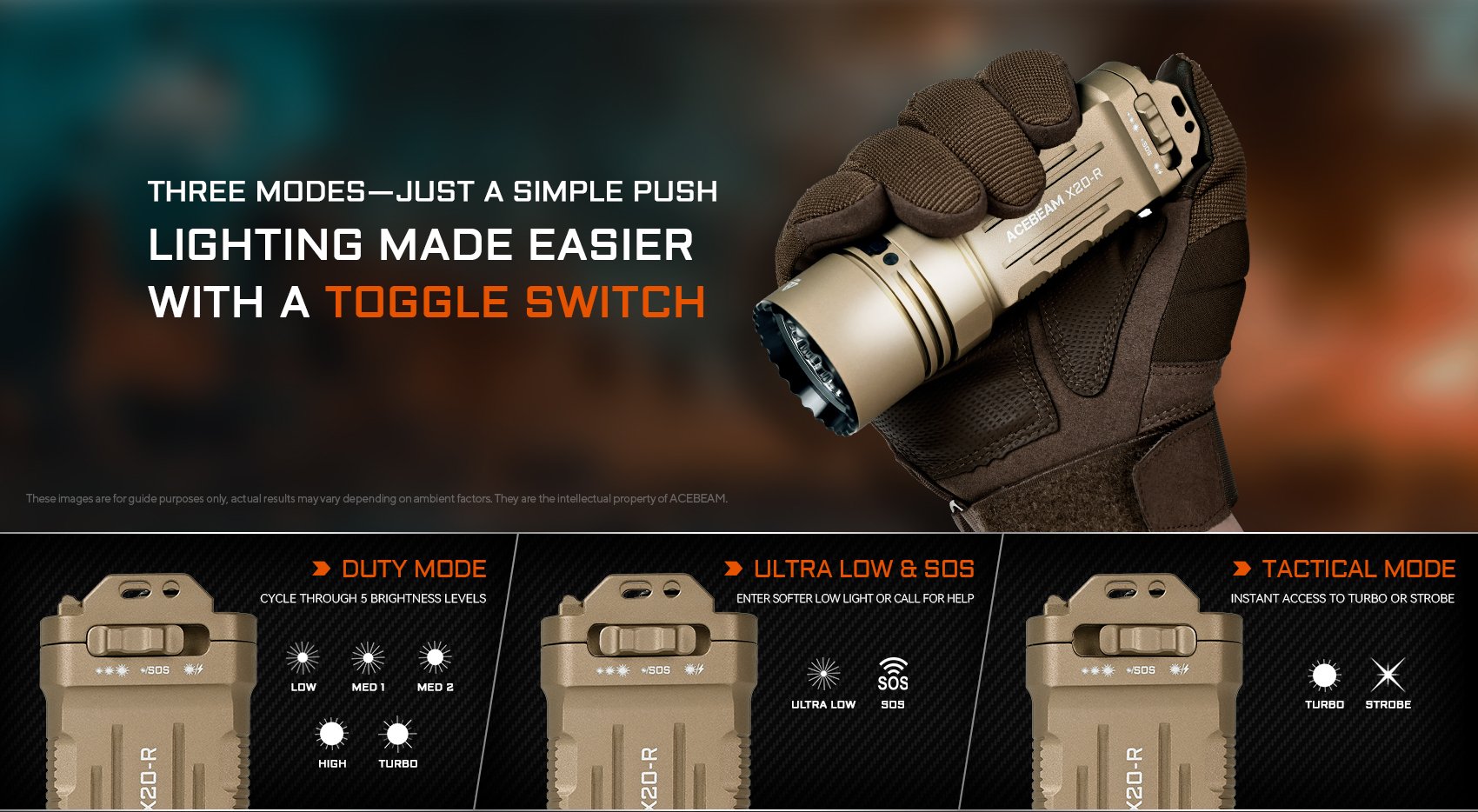

• Toggle switch between Duty, Ultra Low/SOS, and Tactical Modes
• Dual-stage tactical tail switch easily and quickly accesses to Turbo and Strobe
• Six white brightness levels + Strobe + SOS to meet your multiple daily lighting needs
• Patented mechanical lock prevents accidental activation, ensuring worry-free transportation

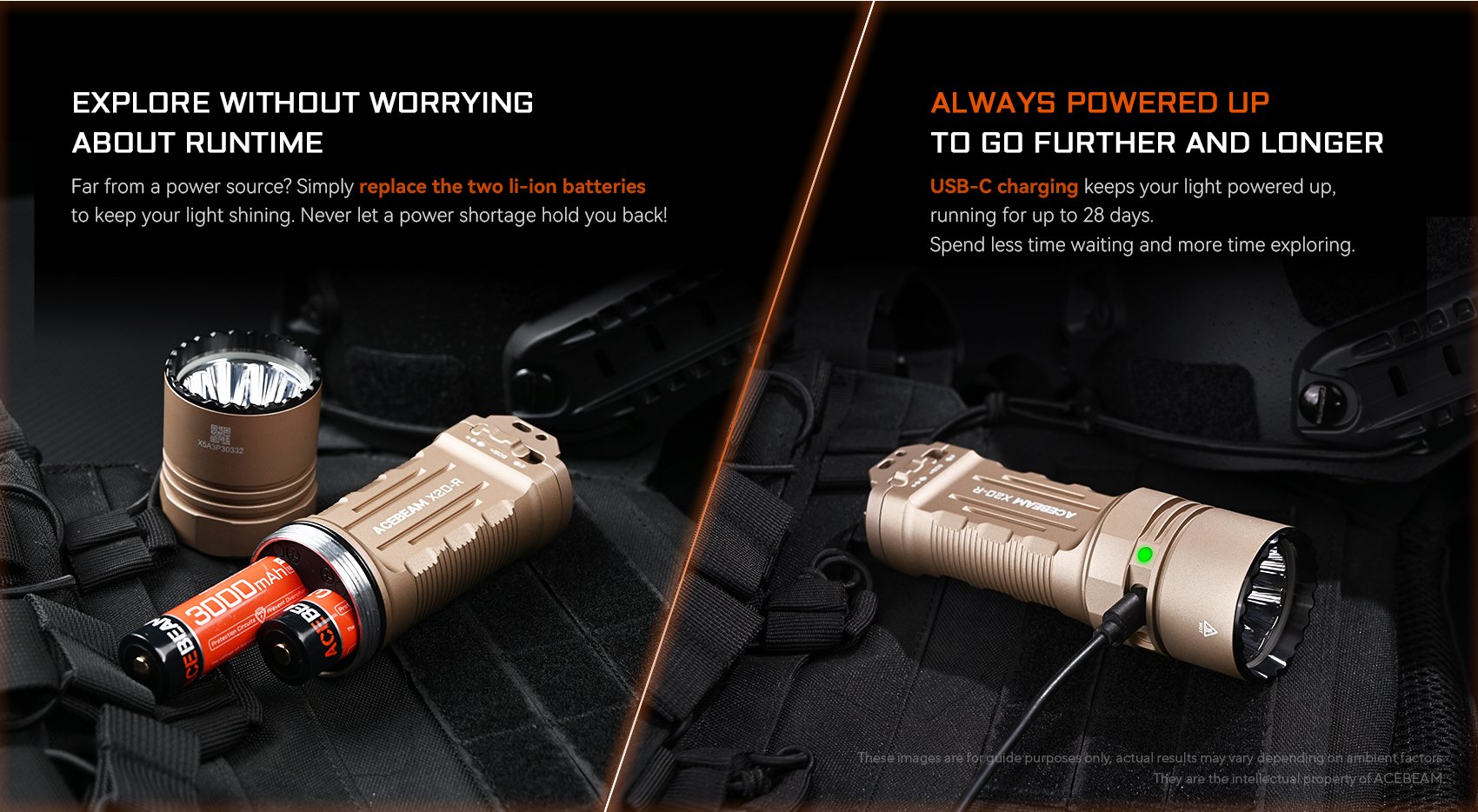

• Powered by 2 x 18650 Li-ion batteries, making replacement convenient
• The body supports USB-C direct charging for convenience

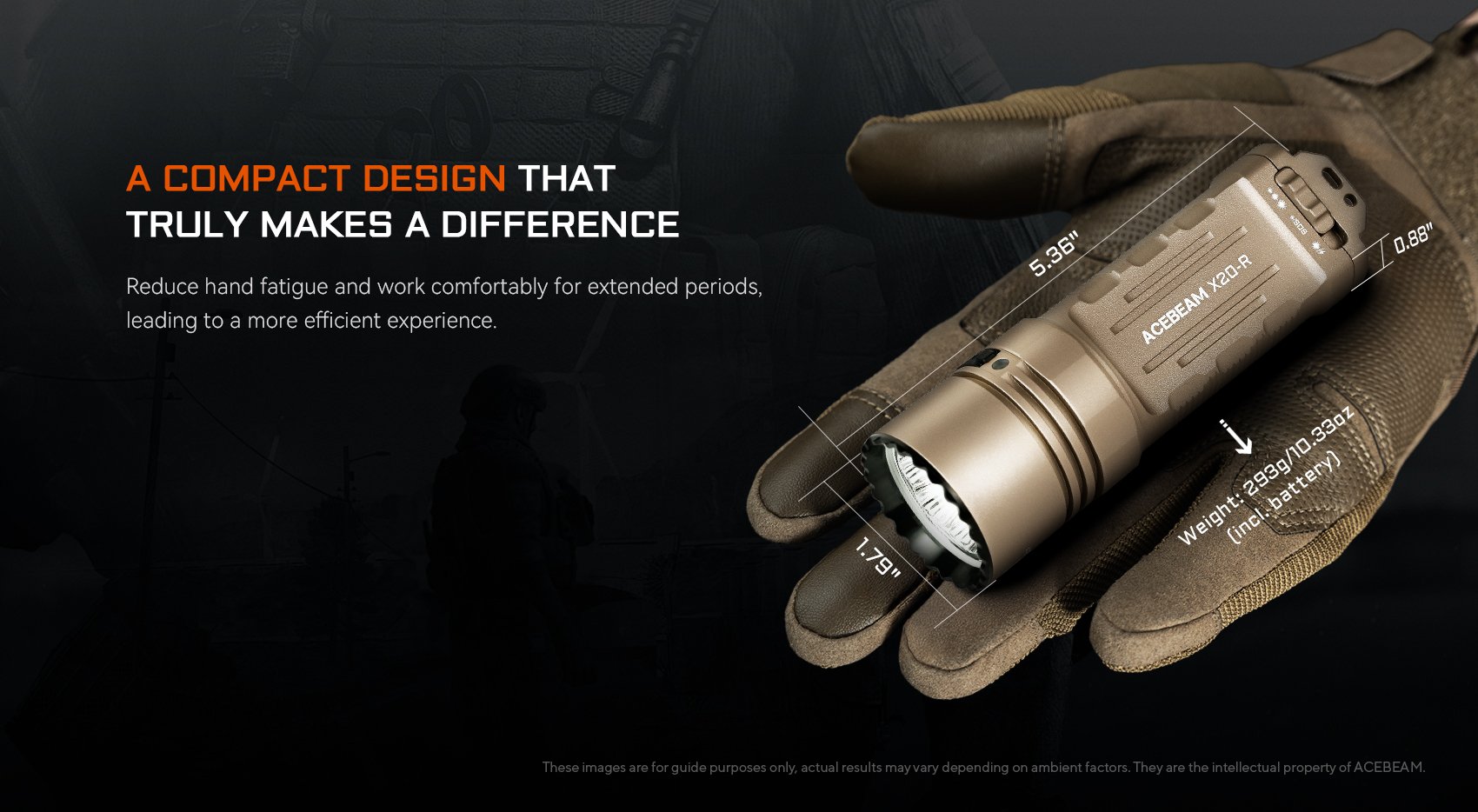

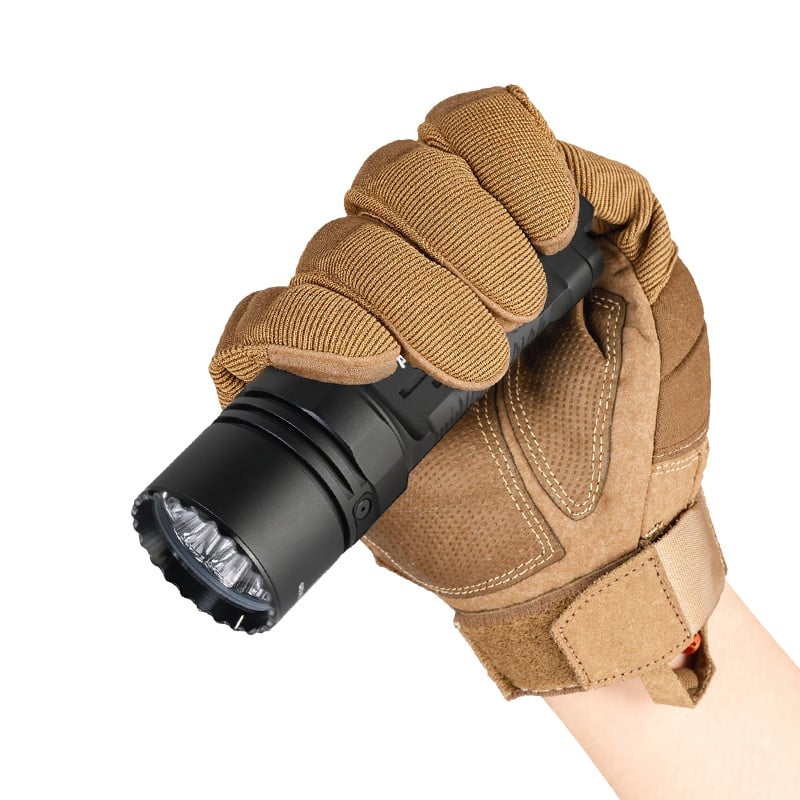

• Palm size, perfectly fits in your hand
• Double-sided tempered glass with anti-reflective coating lens with strong light transmittance
• High strength and impact-resistant HA III hard-anodized anti-abrasive and corrosion-resistant finish
• AL6061-T6 high-quality aluminum alloy body can withstand 1.5-meter drop test
• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes
Ultra Low: 90 lumens; 400cd; 40 meters; 28 hours
Low: 170 lumens; 841cd; 58 meters; 18 hours
Med1: 450~170 lumens; 1806cd; 85 meters; 8h~20min
Med2: 850~170 lumens; 3600cd; 120 meters; 4.5h~20min
High: 2100~170 lumens; 8100cd; 180meters; 1.7h ~ 20min
Turbo: 10000~2400~170 lumens; 48400cd; 440 meters; 50s ~ 1h20min~20min
Strobe: 10000~2400 lumens; 3min~3h SOS: 10000~2000 lumens; 3min~3.5h
Max. output: 10000 lumens
Max. beam distance: 440 meters
Max. runtime: 28 hours on Ultra Low(90 lumens)
Peak beam intensity: 48400cd

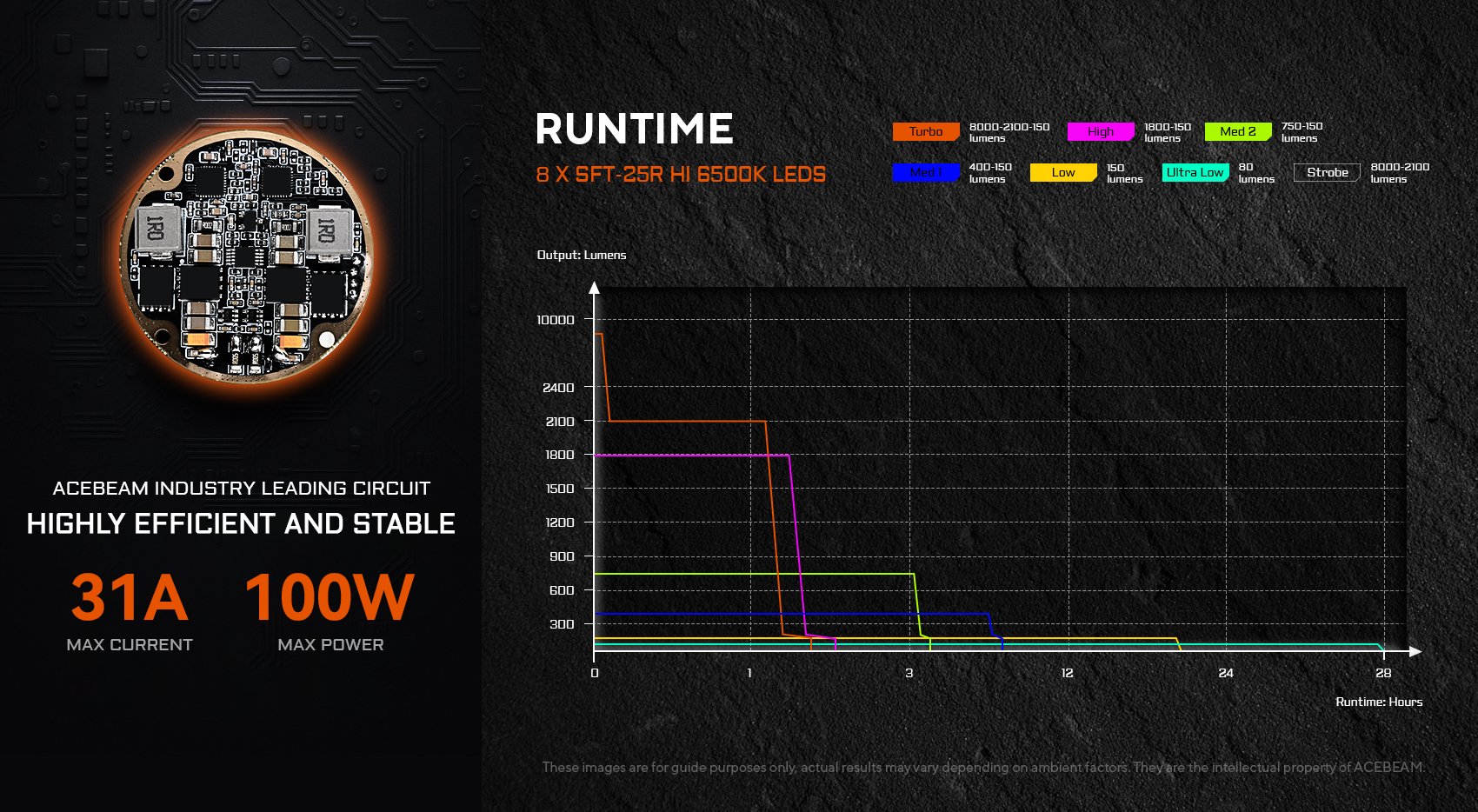

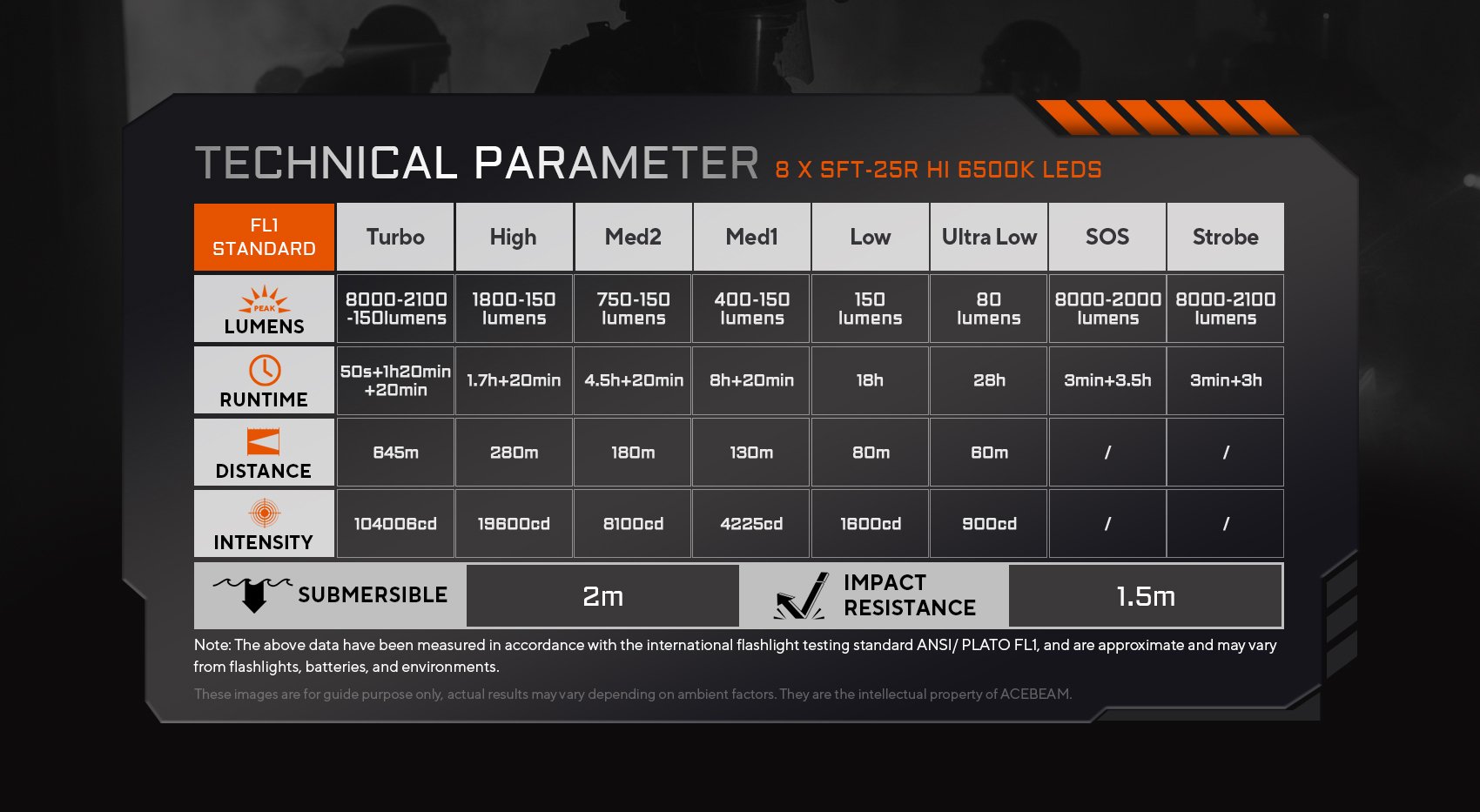

Ultra Low: 80 lumens; 900cd; 60 meters; 28 hours
Low: 150 lumens; 1600cd; 80 meters; 18 hours
Med1: 400~150 lumens; 4225cd; 130 meters; 8h~20min
Med2: 750~150 lumens; 8100cd; 180 meters; 4.5h~20min
High: 1800~150 lumens; 19600cd; 280meters; 1.7h ~ 20min

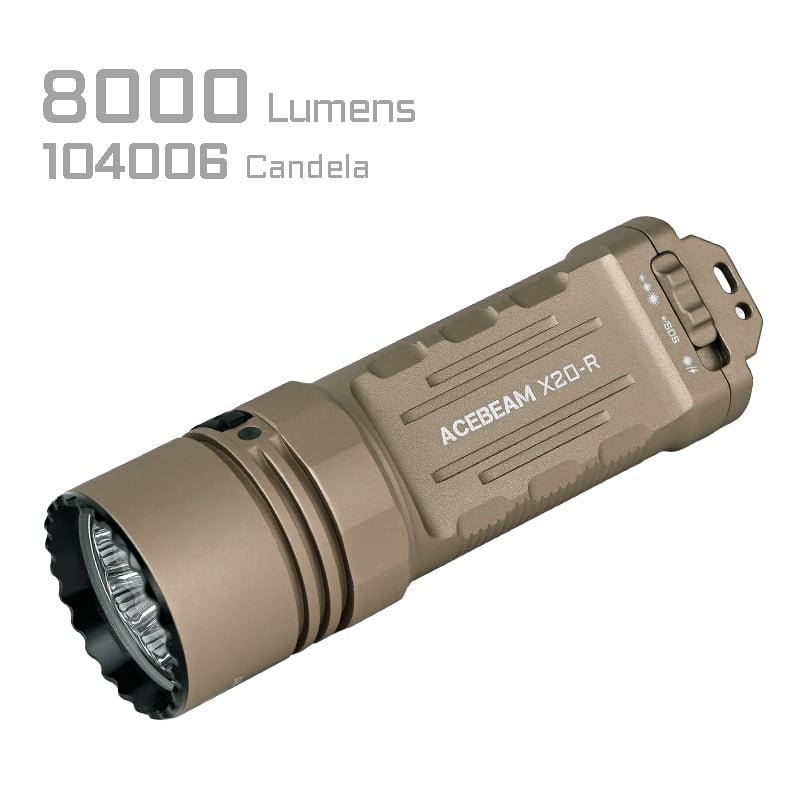

Turbo: 8000~2100~150 lumens; 104006cd; 645 meters; 50s ~ 1h20min~20min
Strobe: 10000~2100 lumens; 3min~3h SOS: 8000~2000 lumens; 3min~3.5h
Max. output: 8000 lumens
Max. beam distance: 645 meters
Max. runtime: 28 hours on Ultra Low(80 lumens)
Peak beam intensity: 104006cd
How many LED options for X20-R? Does ACEBEAM offer LED replacement service?
Two LED options:
• 8 x SFT-25R HI LEDs, max output 8000 lumens, throw up to 645 meters
• 8 x LUXEON HL4X LEDs, max output 10000 lumens, throw up to 440 meters
ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so might affect product performance and cause damage to the product.
How to get started?
Before first use, unscrew the head of penlight and remove the insulating film.
What kind of battery is included?
2 x 3000mAh 18650 Li-ion batteries (replaceable)
How to install the battery?
Battery power indicator
When charging the battery, the indicator will flash red, after fully charged, the indicator turns green.
How to operate in Duty Mode?
Half Press: Switch brightness levels(Low-Med1-Med2-High-Turbo) when brightness is locked; when brightness is not locked, it is memorized and turns off when released.
Full Press: Lock brightness or turn off the flashlight.
How to operate in Ultra Low & SOS Mode?
Half Press: Turn on/off Ultra Low.
Full Press: Turn on/off SOS.
How to operate in Tactical Mode?
Half Press: Turbo (release to turn off; hold 5s to lock Turbo)
Full Press: Strobe (release to turn off; hold 5s to lock Strobe)

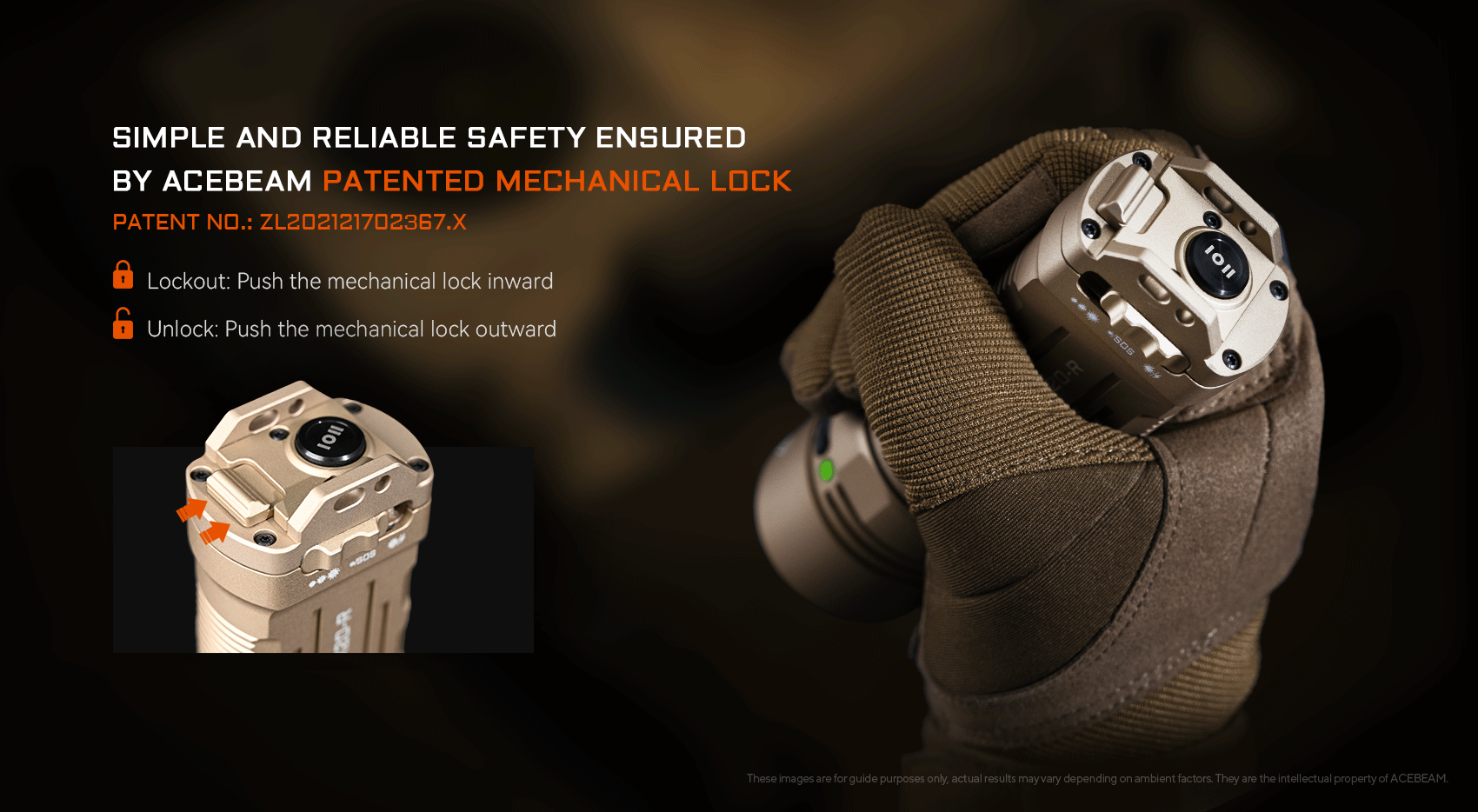

To prevent accidental activation, how to get it locked?
Push the mechanical lock inward to lock, and push it outward to unlock
