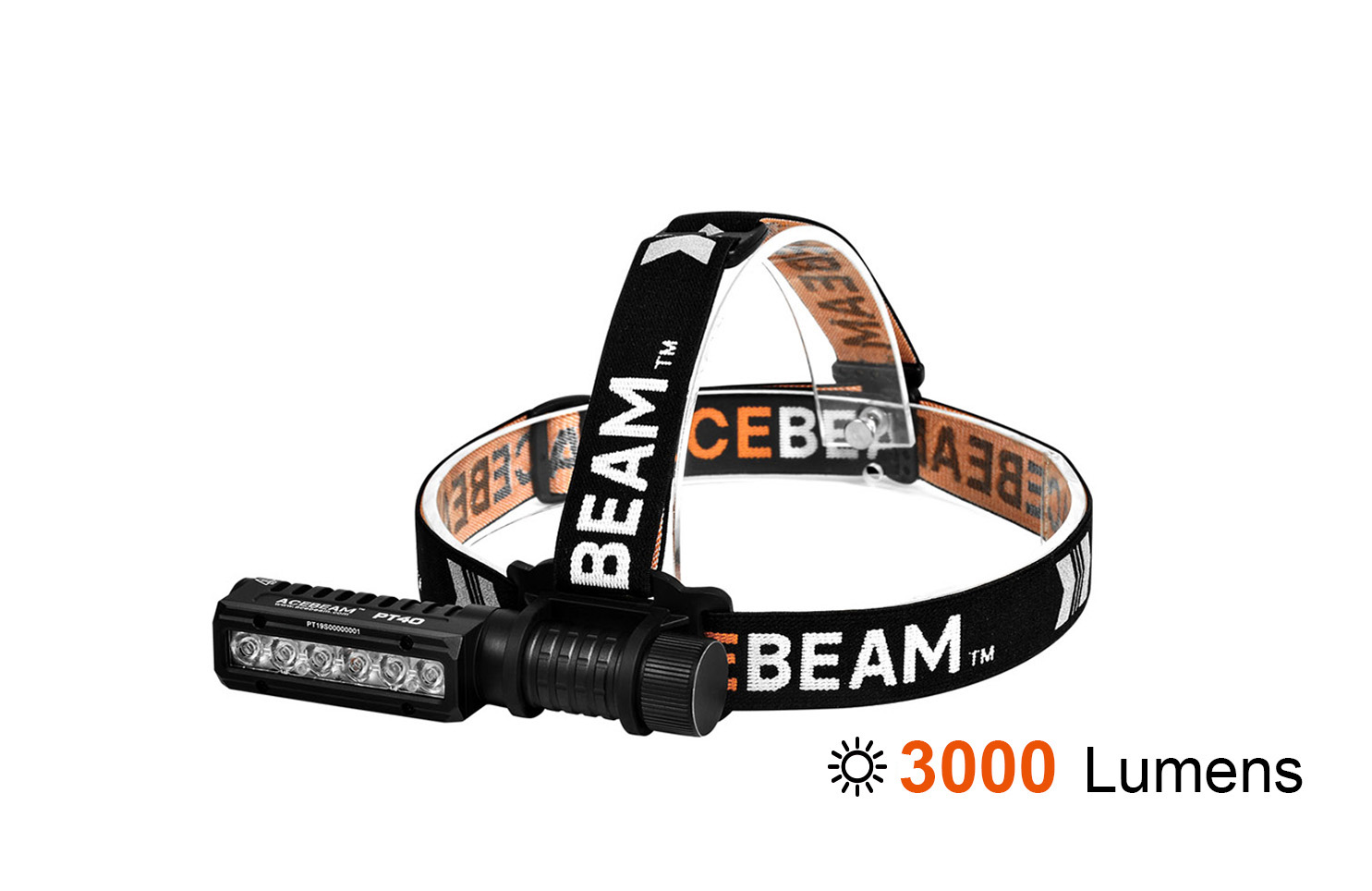

PT40 Multipurpose Work Flashlight and L-shaped Headlight


PT40 is a multi-functional flashlight, usable as an L-shaped headlight, as a compact EDC flashlight and as an angled work light that offers all the versatility you need to tackle almost any task. The PT40 works as a hands-free light and is great for engineers, mechanics, home inspectors and other professions. Equipped with a headlight belt, side clips and a tail cap with a magnetic function, providing you with multiple options for freeing your hands.

Availability: Out of stock
Free shipping
GTIN: 6970526500916


LED Color Option:
6 x SAMSUNG LH351D LED CRI≥90, maximum output of 3,000 lumens
6 x LUMINUS SST-20 CRI≥95, maximum throw to 230 meters
6 x NICHIA 219C LED CRI≥90 high color rendering

LED option 1: 6 x SAMSUNG LH351D LED CRI≥90 high color rendering with a lifespan of 50,000 hours
Ultra-Low: 15lumens;  80 hours
Low: 80 lumens; 158cd; 25 meters; 17 hours
Mid1: 220 lumens; 289cd; 34 meters; 6 hours 15 minutes
Mid2: 580 lumens; 810cd; 57 meters; 2 hours 30 minutes
High: 1100 lumens; 1,460cd; 76 meters; 2 hours
Turbo: 3000 lumens; 3,680cd; 121 meters; 1 hour 30 minutes
Strobe: 1500 lumens; 2 hours

Max. output 3,000 lumens
Max. beam distance: 121 meters
Max. runtime: 80 hours
Peak beam intensity: 3,680cd

LED option 2: 6 x LUMINUS SST-20 CRI≥95, maximum throw to 230 meters
Ultra-Low: 10lumens;  80 hours
Low: 70 lumens; 470cd; 43 meters; 17 hours
Mid1: 200 lumens; 1,200cd; 69 meters; 6 hours 15 minutes
Mid2: 500 lumens; 2,800cd; 106 meters; 2 hours 30 minutes
High: 900 lumens; 5,000cd; 141 meters; 2 hours
Turbo: 2400 lumens; 13,200cd; 230 meters; 1 hour 30 minutes
Strobe: 1400 lumens; 2 hours

Max. output 2,400 lumens
Max. beam distance: 230 meters
Max. runtime: 80 hours
Peak beam intensity: 13,200cd

LED option 3: 6 x NICHIA 219C LED CRI≥90 high color rendering
Ultra-Low: 10lumens;  80 hours
Low: 50 lumens; 260cd; 32 meters; 17 hours
Mid1: 180 lumens; 590cd; 49 meters; 6 hours 15 minutes
Mid2: 450 lumens; 1,450cd; 76 meters; 2 hours 30 minutes
High: 900 lumens; 2,800cd; 106 meters; 2 hours
Turbo: 2400 lumens; 6,880cd; 166 meters; 1 hour 30 minutes
Strobe: 1400 lumens; 2 hours

Max. output 2,400 lumens
Max. beam distance: 166 meters
Max. runtime: 80 hours
Peak beam intensity: 6,880cd

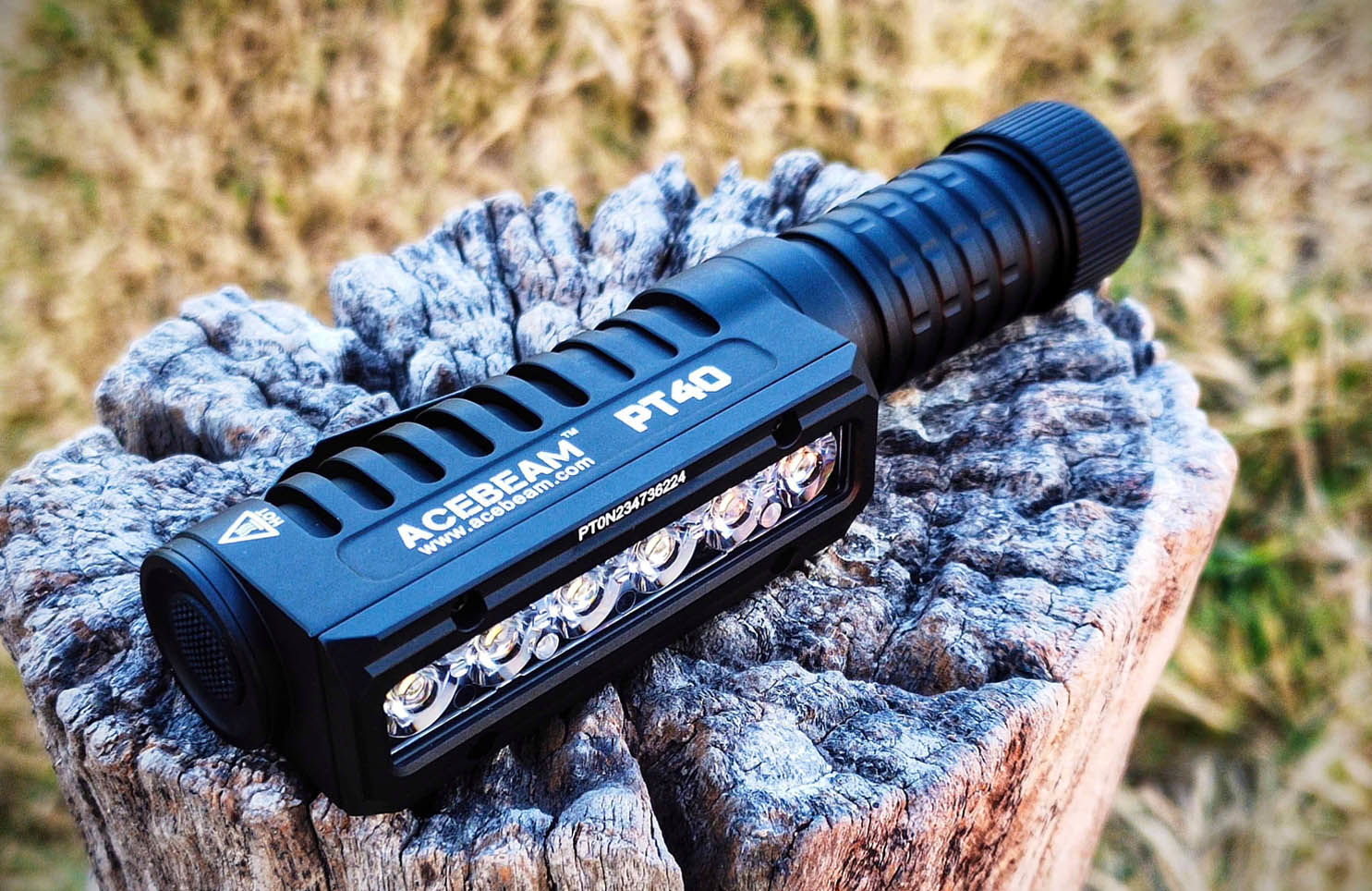

Utilizes a line of six pieces LEDs, the PT40 is ideal light for industrial work and vehicle repair
An ultra high performance of 3000 lumens (Samsung LH351D LED) and a variety of lighting modes
Six output selection plus special Strobe
High Color Rendering Index (CRI≥90) preventing eye fatigue and revealing detail of an object
With firmed pocket clip and angle shaped, can be clipped in the pocket or backpack while working
Can be firmly attached to metal surfaces with magnetic tail, free your hands
A high performance Acebeam USB rechargeable 18650 Li-ion battery is optional
Offering an ergonomic grip that allows you to use the flashlight without straining your wrist
110° wide range flood optic system ideally covers the field of view of human eyes
Simple operation with one single side switch
Small angle concentrated TIR(Total Internal Reflection) optic facilitates efficient light transmission
Aircraft grade aluminum body structure
Reverse polarity protection to guard against improper battery insertion
Intelligent highly efficient constant circuit (Non-PWM) runs for maximum 80 hours
All circuitry contact points are gold-plated, providing better conductivity and superior durability
Sweat-channeling, reflective headband

Size: 126.8mm (Length) x 32.8mm (Head Diameter) x 24mm (Tube Diameter)
Weight: 95g(3.35oz.) w/o battery; 145g(5.11oz.) with battery
Impact resistance to 1 meter
IP68 waterproof (2 meters submersible)

Working as a hands-free illumination, PT40 is great for engineers, mechanics, house inspectors, and other professions. Specifically, it's great for any profession where you need to use your hands but still illuminate the area in front of you.

Feature a single switch and easy to operate. With this design, there will be no fumbling around for switches, a definite benefit for police officers, security, and military personnel.

1: Unauthorized disassembly may damage the light and void the warranty.
2: It is normal if the surface heat is increased during use due to the excellent thermal conductivity technology. It is suggested to use in a well ventilated area with ambient temperature.
3: Caution hot when using continuously for a long time. Do not put it on flammable materials for a long time, any fire or any safety problems caused by this will not be related
to the manufacturer and distributors.
4: Please check and replace the O-ring regularly to maintain the waterproof rating.
5: Please check and lubricate the threads regularly with professional lubricant.
6: Clean the contact surfaces regularly to keep the flashlight normal operation. If irregular strobe or failure to turn-on occurs, the contact surfaces may be dirty and requires cleaning by using alcohol cotton swabs.
7: Remove the battery from the flashlight during long term storage.
8: This flashlight is not intended to be used as a diving light.
9: Do not aim the flashlight directly at eyes. Users must be over 18 years of age. Keep out of the reach of children.

Existing reviews

Interesting and useful right angle light.
The PT40 is a unique looking light.

Its fairly floody and with the right angle configuration makes for a great light to add to nearly any set up: work, hiking, fishing, etc.

Its longer than most right angle lights but what's nice about that is you can keep it clipped to your belt to cast light out in front of you and your shirt is less likely to get in the way.

Would make a perfect light to go on your pack or tool belt.
Garreth | 3/20/2021 7:08 AM
nice headlamp
flood dia terbaik. good quality
along | 8/22/2021 10:54 PM
Good product
like this product. can give me nice view
asfa | 8/23/2021 12:03 AM
PT 40, the best 90° lamp
Hello everyone, I am an expert in LED lamps. I am very close to product developments. The PT40 lamp rdt the best of the lamps angled at 90 °.
The power is adjustable, the autonomy great, it is waterproof.
it is multi-use; head lamp, hand lamp, bust lamp, magnetic lamp, it's incredible!

The PT40 allows you to work hands-free with super light output, there is nothing better on the market for all brands.
To recharge it, simply connect the battery to a simple smartphone charger, which is a great advantage. No more cables that we do not have on either or that we lose like the competition.
ACEBEAM has engineers who really listen to consumers, that's why their products are always on top.
David | 8/23/2021 8:27 PM
Thoughtful Design
Design is second to none!! Well done once again!!
Lo | 11/29/2021 12:31 PM
I had the pleasure of buying a few pt40.  The lh351d 6000k led flashlights are snow-white with beautiful color reproduction.  The beam angle is super wide.  It can be a headlamp as well as a handheld work lamp, it is characterized by excellent current stabilization.  Workmanship at the highest level.  It will be really useful in age situations, forest camps, homework and many other activities.  It's really super compact and really light.
Dawid | 1/13/2022 7:36 AM
real work flashlight, strong magnet in the tail for all metallic surfaces, 3000 lumens of pure power, for me the best for multipurpose use.
| 2/10/2022 1:47 AM
This is a work horse headlight that will stand up to high use!
Lo | 2/24/2022 9:32 AM
Excellent and durable work light!
I really like the PT40. I've got the Samsung LH351D version and it is seriously super bright in turbo mode! I also like the magnet tail. You can just put the PT40 on everything magnetic. The finish is great too. It feels very good and durable. One important thing is not meantioned in the product listing: It has a TIR lens made from plastic but it is covered and protected with coated glass!
I recommend it!
| 3/31/2022 5:51 AM
Great light!
I love this worklight! It is so handy in my workshop with its wide high quality beam! But the magnet could be stronger.
| 4/15/2022 6:06 PM
6000K LH351D
great worklight that I use to add some more light for my product photography work - 90CRI is a great addition to that and there is no artufacts or abberration in the beam. It's grat light itsslf, but magnet is too weak and there is no moonlight mode. Light - 5 stars, functions - 3 stars.
| 6/17/2022 2:53 PM
