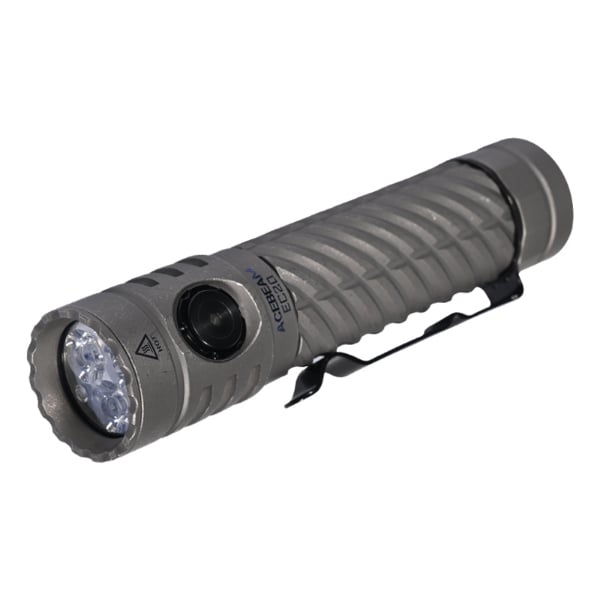

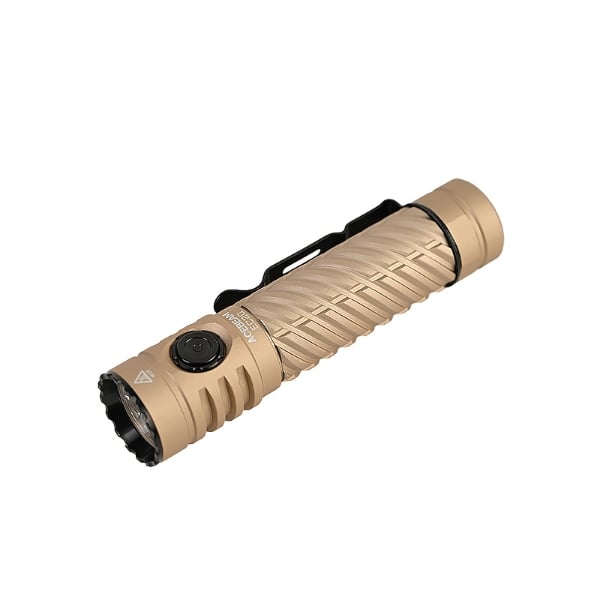

EC20 Multi-light Source EDC Flashlight

DETAILS

• Compact and portable
• LED options :
  -    SFT-25R LEDs, max 2,500 lumens with a beam distance up to 370 meters
  -    XP-LR LEDs, max 2,900 lumens with a beam distance up to 381 meters
  -    Nichia 519A LEDs CRI > 90, max 1,900 lumens with a beam distance up to 270 meters
  -    LUXEON HL4X 6500K LEDs, max 2,800 lumens with a beam distance up to 310 meters
• All-in-one stainless steel switch controls all and is easy to operate even while wearing gloves
• Three dimming modes available：
  Mode 1: Low → Med 1 → Med 2 → High → Low
  Mode 2: High → Med 2 → Med 1 → Low → High
  Mode 3: Stepless dimming
• Auxiliary lights (Red - Blue - Green- Multiple colors)
• 6 white brightness levels, Strobe, SOS, and Beacon cater to your lighting needs in various scenarios
• Adopts highly efficient constant circuit (Non-PWM) guarantees a comfortable visual experience
• Dual power options, it can be powered by one 18650 or two CR123A batteries
• Magnetic tail stand for versatile lighting
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop test
• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes
• Ideal for exploration, patrol, dog walking, fishing, camping, night reading, and more

BATTERIES

• Including: One high-capacity 18650 battery pack with built-in USBC port
• Compatible: 2 x CR123A non-rechargeable batteries

SIZE

• Length: 109.51mm/4.31”
• Head dia.: 25.4mm/1”
• Tail dia.: 24mm/0.94”
• Weight: 116g/4.09oz   Titanium 148g/5.22oz    Stainless Steel 203g/7.15oz  (Incl. battery)

OUTPUTS

• 3 x SFT-25R HI 6500K LEDs

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 180 ~ 25 lumens;  1722.25cd; 83 meters; 9 hours ~ 1 hour
Med2: 540 ~ 25 lumens;  3906.25cd; 125 meters; 3.5 hours ~ 1 hour
High: 1300 ~ 650 ~ 25 lumens; 8742.25cd; 187 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 2500 ~ 650 ~ 25 lumens; 34225cd; 370meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1300 lumens; 8742.25cd; 187 meters; 2H50min
SOS: 1300 lumens; 8742.25cd; 187 meters; 4H30min
Beacon: 1300 lumens; 8742.25cd; 187 meters; 7H

Max. output: 2500 lumens
Max. beam distance: 370 meters
Max. runtime:  36hours
Peak beam intensity: 34225cd

• 3 x Nichia 519A LEDs CRI > 90

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 140 ~ 25 lumens;  841cd; 58 meters; 9 hours ~ 1 hour
Med2: 400 ~ 25 lumens;  1521cd; 78 meters; 3.5 hours ~ 1 hour
High: 1000 ~ 470 ~ 25 lumens; 3025cd; 110 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 1900 ~ 470 ~ 25 lumens; 18225cd; 270meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1000 lumens; 3025cd; 110 meters; 2H50min
SOS: 1300 lumens; 3025cd; 110 meters; 4H30min
Beacon: 1300 lumens; 3025cd; 110 meters; 7H

Max. output: 1900 lumens
Max. beam distance: 270 meters
Max. runtime: 36hours
Peak beam intensity: 18225cd

• 3 x LUXEON HL4X 6500K LEDs

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 180 ~ 25 lumens;  900cd; 60meters; 9 hours ~ 1 hour
Med2: 540 ~ 25 lumens;  1806.25cd; 85 meters; 3.5 hours ~ 1 hour
High: 1400 ~ 650 ~ 25 lumens; 3600cd; 120 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 2800 ~ 650 ~ 25 lumens; 24025cd; 310meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1400 lumens; 3600cd; 120 meters; 2H50min
SOS: 1400 lumens; 3600cd; 120 meters 4H30min
Beacon: 1400 lumens; 3600cd; 120 meters; 7H

Max. output: 2800 lumens
Max. beam distance: 310 meters
Max. runtime: 36hours
Peak beam intensity: 24025cd

Does EC20 offer three LED options? What are they? Does ACEBEAM offer LED replacement service?
A: Yes, There are three premium LED options:
-    SFT-25R HI LEDs, Max throw 370 meters
-    Nichia 519A LEDs CRI > 90
-    LUXEON HL4X  6500K  LEDs, max 2800 lumens
ACEBEAM does not offer LED replacement services currently, and please do not replace the LEDs privately, as doing so may affect product performance or cause damage to the product.

How to Exit AUX Light Mode?
Two ways to exit AUX light mode :
A. Quickly double-click the Switch to enter Turbo, and then long press the Switch to conduct brightness level switching.
B. After the light is OFF, long press the Switch (about 0.5s) to enter Ultra-Low, and then long press the Switch to conduct brightness level switching.

How to cycle through Dimming Modes (White Light)?
When the light is OFF, click and then quickly long press the Switch until the flashlight flashes.

One flash indicates that it has entered Dimming Mode 1, and so on, with 3 flashes indicating that it has entered Dimming Mode 3. and release the Switch after selecting.

How to do Brightness Level Switching (White Light)?
Under your preferred Dimming Mode, after turning ON, and then long press the Switch to cycle through brightness levels.

Mode 1: Low → Med 1 → Med 2 → High → Low
Mode 2: High → Med 2 → Med 1 → Low → High
Mode 3: Stepless dimming

How to enter Strobe/SOS/Beacon  (White Light)?
Quick triple-click the Switch, and then long press the Switch to select Strobe/SOS/Beacon, release the Switch after selecting to enter your preferred mode.

After you shift to another mode, you can quickly triple-click the Switch again to reaccess.

How to enter Ultralow (White Light)?
When the light is OFF, long press the Switch (about 0.5 seconds).

How to enter AUX light mode?
When the light is OFF, long press the Switch (about 1 second).How to Cycle Through Red-Green-Blue- Multiple Light Mode?
Under the AUX light mode, long press the Switch.

What kind of battery can be used in EC20?
A: EC20 can be powered by one ACEBEAM 18650 USB-C Li-ion battery (included) or 2 x CR123A (compatible).

How to prevent accidentally activating the EC20?
A: you can lock it. The method to lock EC20:
When the light is OFF, long press the Switch (about 3 seconds) until the light flashes 3 times to indicate Locked.

 How to unlock EC20?
A:  The method to unlock EC20:
Once locked, users can long press the Switch (about 3 seconds) until the light flashes 2 times to indicate unlocked.

Is the EC20 waterproof?
A: Yes, it can fully submersible to 6.5 feet for up to 30 minutes

Existing reviews

---

Acebeam EC20: The Ultimate EDC Powerhouse

The Acebeam EC20 redefines the pocket-carry experience by balancing raw power with minimalist design. Driving a high-performance LED through a custom TIR optic, it delivers a versatile beam that blends a wide, usable flood with a surprising 200-meter reach. It’s the "Goldilocks" of EDC: small enough to disappear in a jeans pocket, yet packing enough punch to light up a dark alleyway.

The tactile experience is where it shines. The e-switch feels premium and responsive, while the sleek, knurled body provides a secure grip without being abrasive. For the enthusiast who values utility and aesthetics, the EC20 offers a clean, high-CRI-like beam quality that makes colors pop, proving that a true daily driver doesn't need to be bulky to be brilliant.

Was this review helpful? (0/0)

The best EDC

Very good EDC flashlight, small, luxurious design, good features, equipped with a magnetic tail cap.

Was this review helpful? (0/0)

EC20 the best EDC

Very good EDC flashlight, small, luxurious design, good features, equipped with a magnetic tail cap.

Was this review helpful? (0/0)

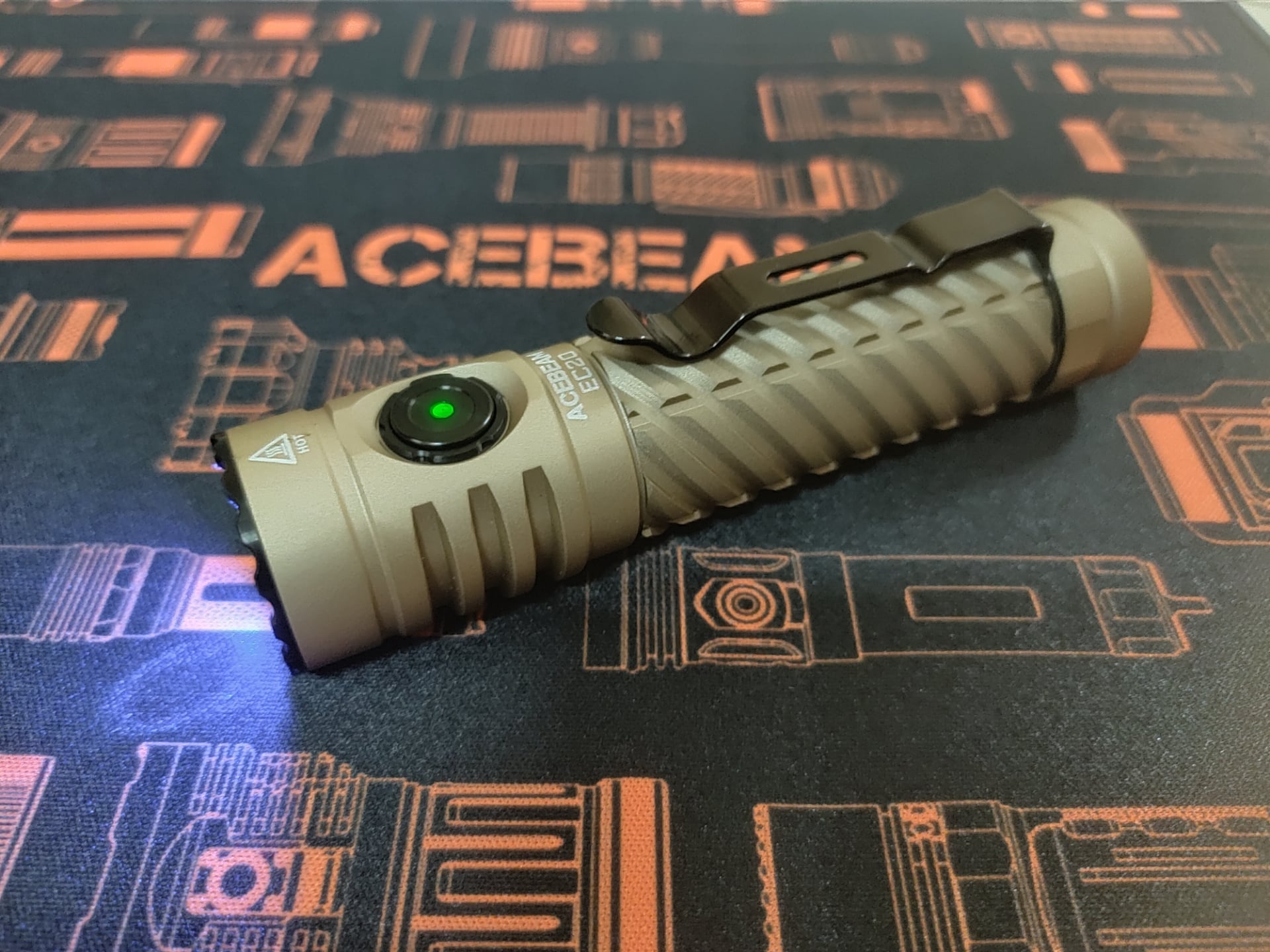

EC20 Desert Nichia
