MSRP Price $86.90

TK16

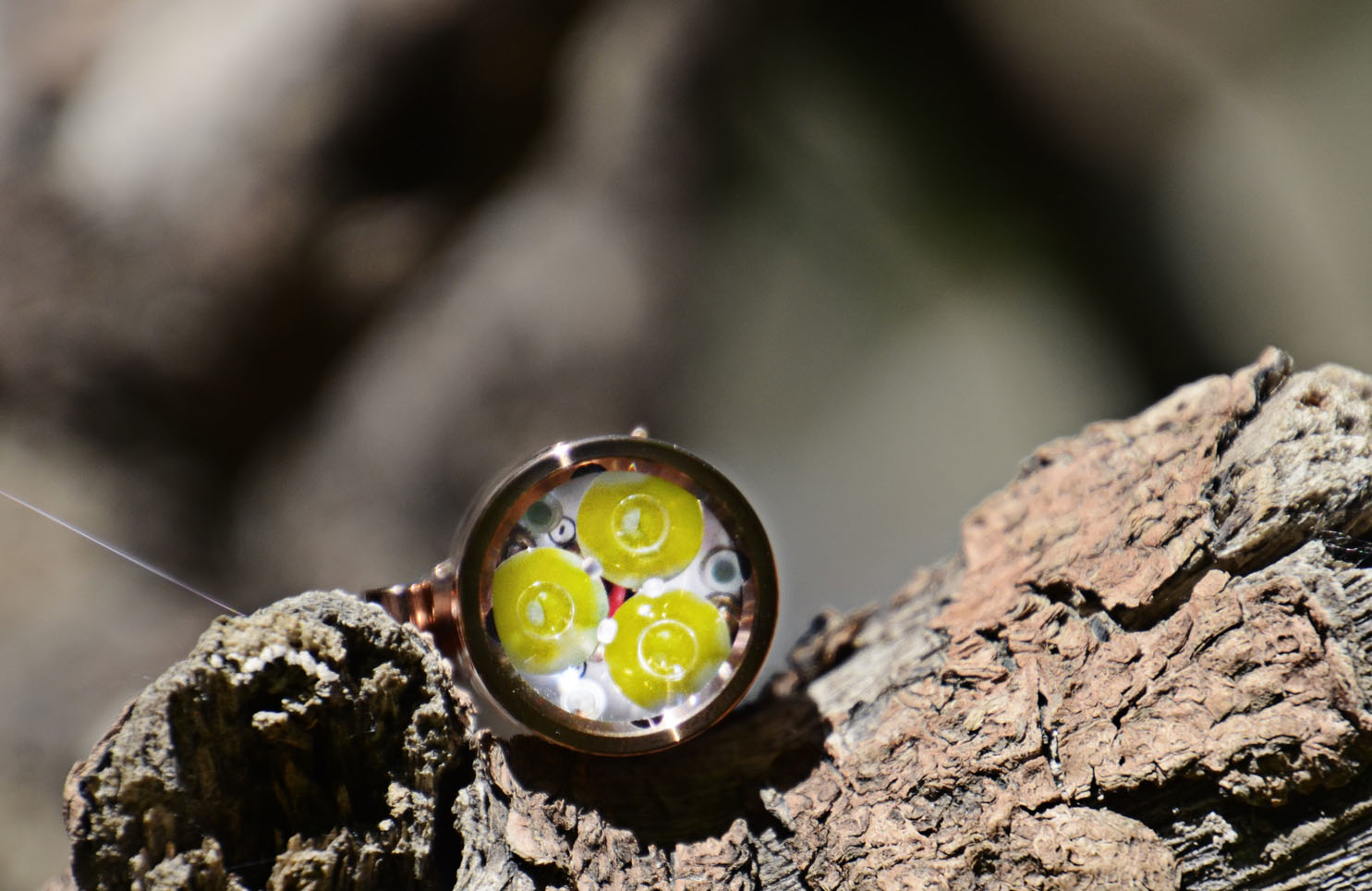

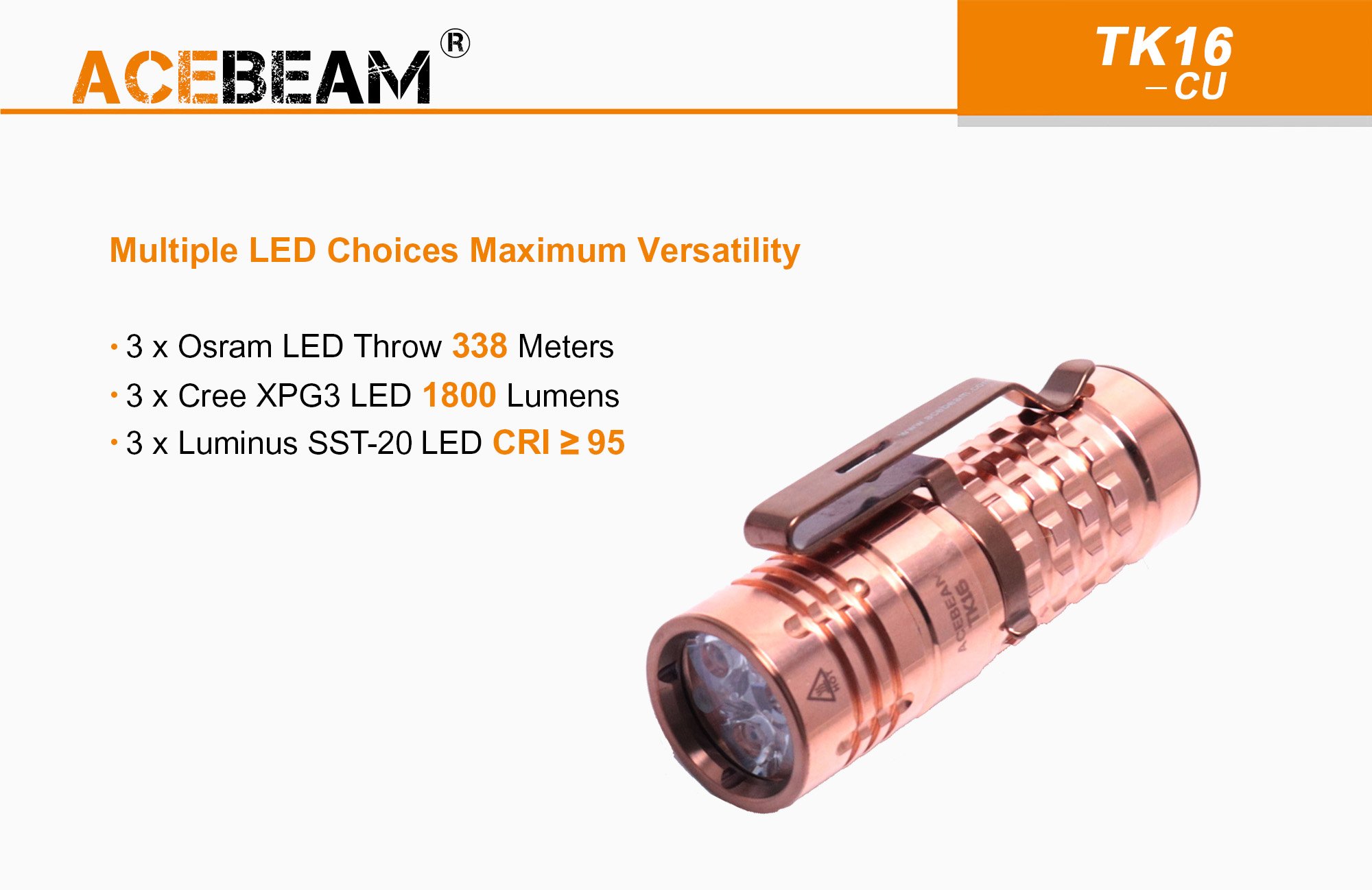

ACEBEAM TK16 is the new single button EDC lamp. This flashlight is available in 3 different LED options: 3xOSRAM ; 3xLUMINUS SST-20 CRI95; 3xCREE XPG 3. An ultra-long beam distance of up to 338meters by 3xOSRAM is perfect for long range spotting as well as intense search and rescue operations. 3xSST-20 CRI95+ LED version has a 95+ rating, illuminates colors more naturally, revealing more details to a user. A stunning output of up to 1800-lumens produced by 3xCREE XPG 3 LEDs greatly meets the needs of outdoor lighting. Not only being compatible with rechargeable 16340 battery, but also suitable for CR123A battery. Comfortable and firm grip with ergonomic knurling allowing the user to operate the tailswitch naturally without even looking at it. The slim head design, solid raw copper body with a gold plated pocket clip makes TK16 easy to carry around on the pocket.
3*LUMINUS SST-20 CRI95 1000 lumens
3*OSRAM 1300 lumens Throw 338M

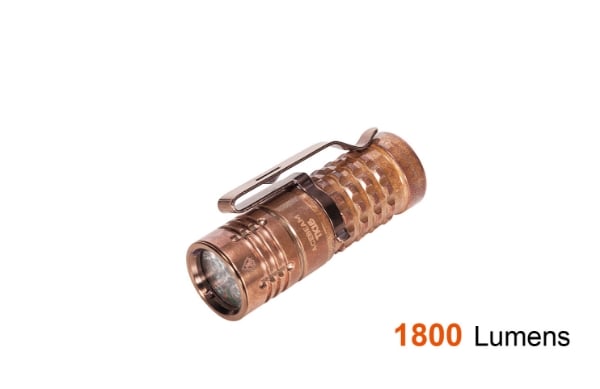

3*CREE XPG 3 1800 lumens

Product description

Features:

When TK16 is powered by RCR123 battery (16340 550mAh 10C battery ):

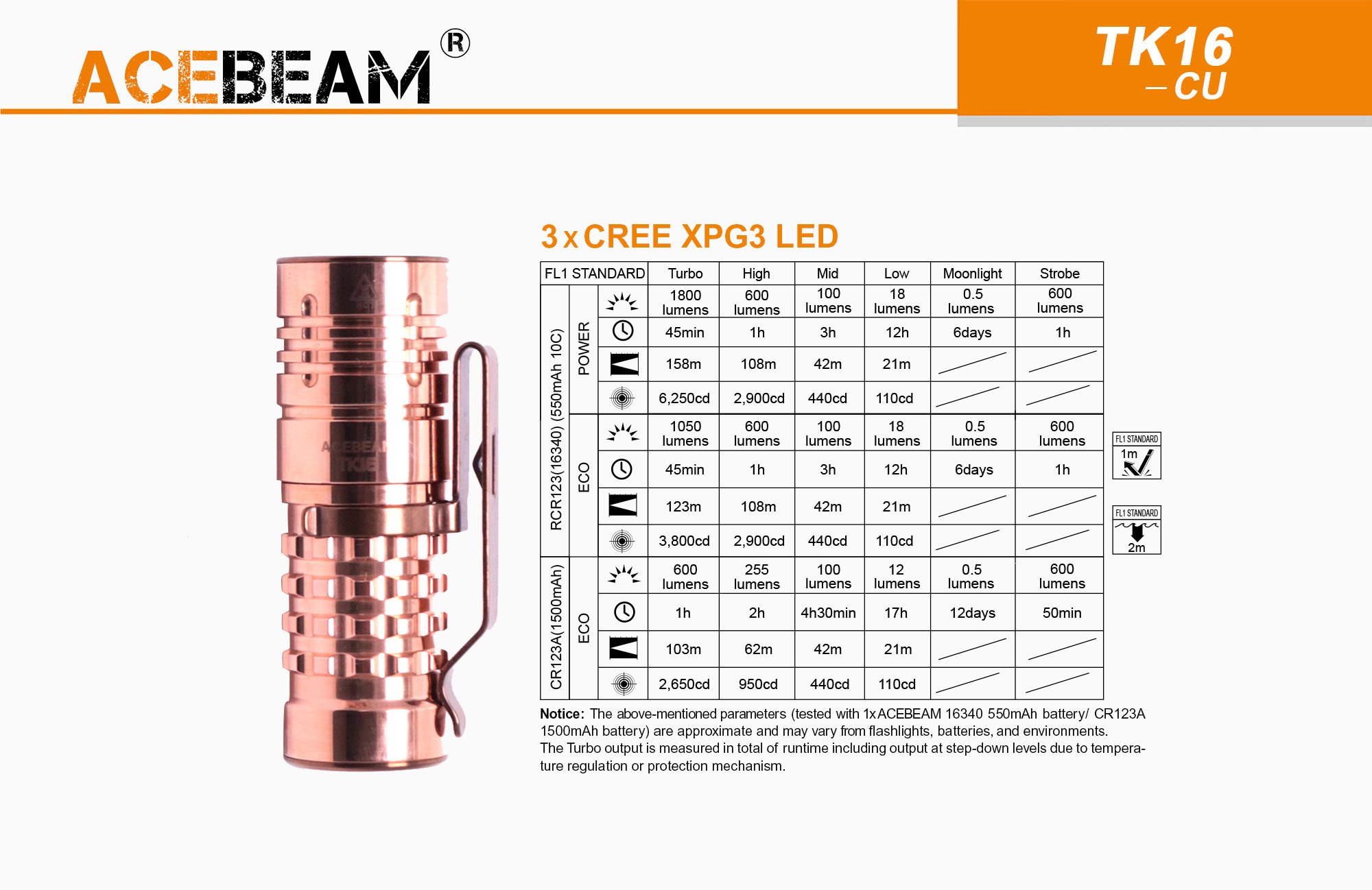

LED option 1: CREE-XPG3

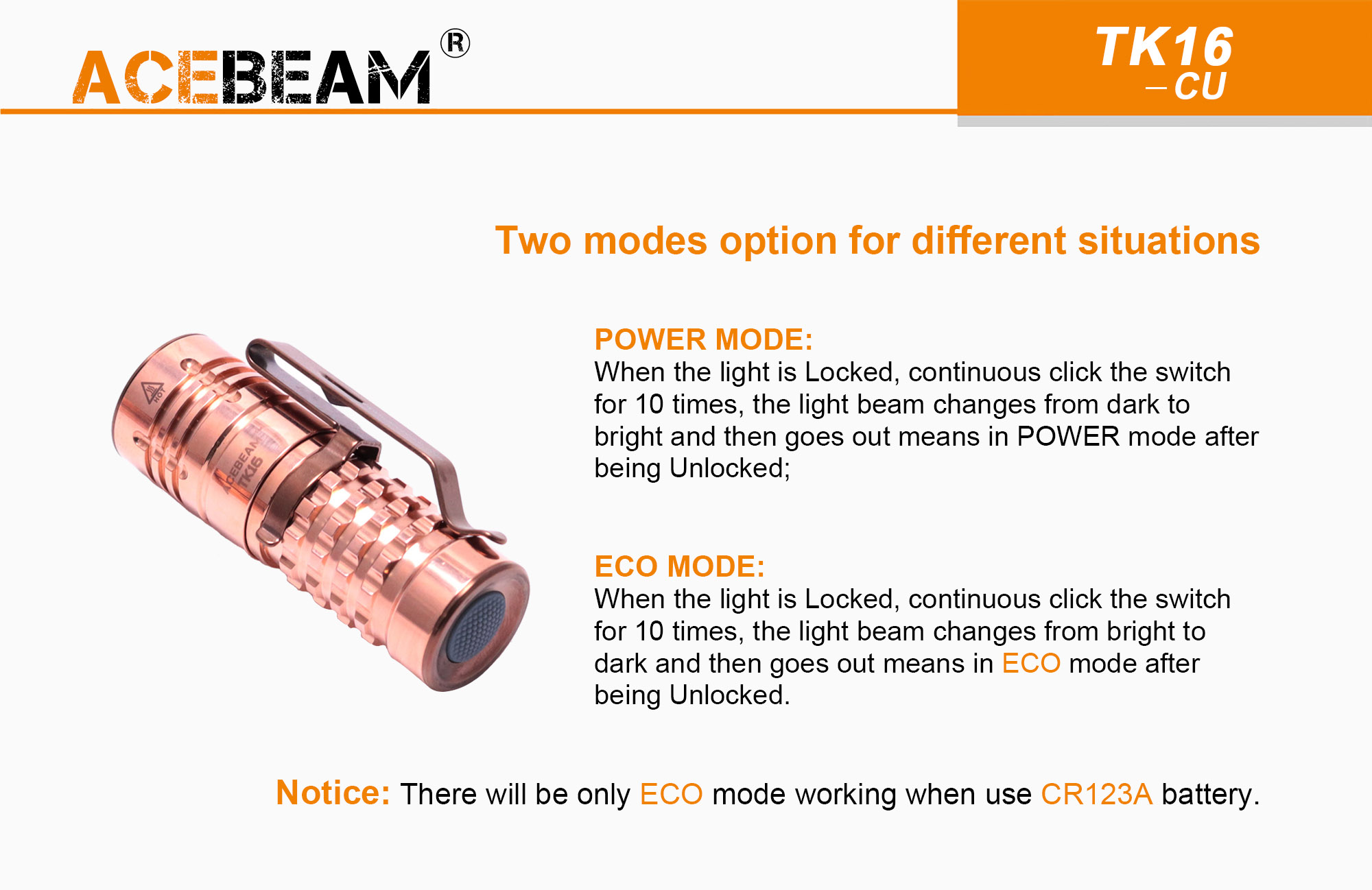

Power Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 18 lumens; 110cd; 21 meters; 12 hours
Mid: 100 lumens; 440cd; 42 meters; 3 hours
High: 600 ~ 370 lumens; 2900cd; 108 meters; 11 minutes + 40 minutes
Turbo: 1800 ~ 370 lumens; 6250cd; 158 meters; 1 minute 30 seconds + 50 minutes
Strobe: 600 lumens; 1 hours

ECO Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 18 lumens; 1100cd; 21 meters; 12 hours
Mid: 100 lumens; 440cd; 42 meters; 3 hours
High: 600 ~ 320 lumens; 2900cd; 108 meters; 8 minutes + 50 minutes
Turbo: 1050 - 320 lumens; 3800cd; 123 meters; 3 minutes + 50 minutes
Strobe: 600 lumens; 1 hours

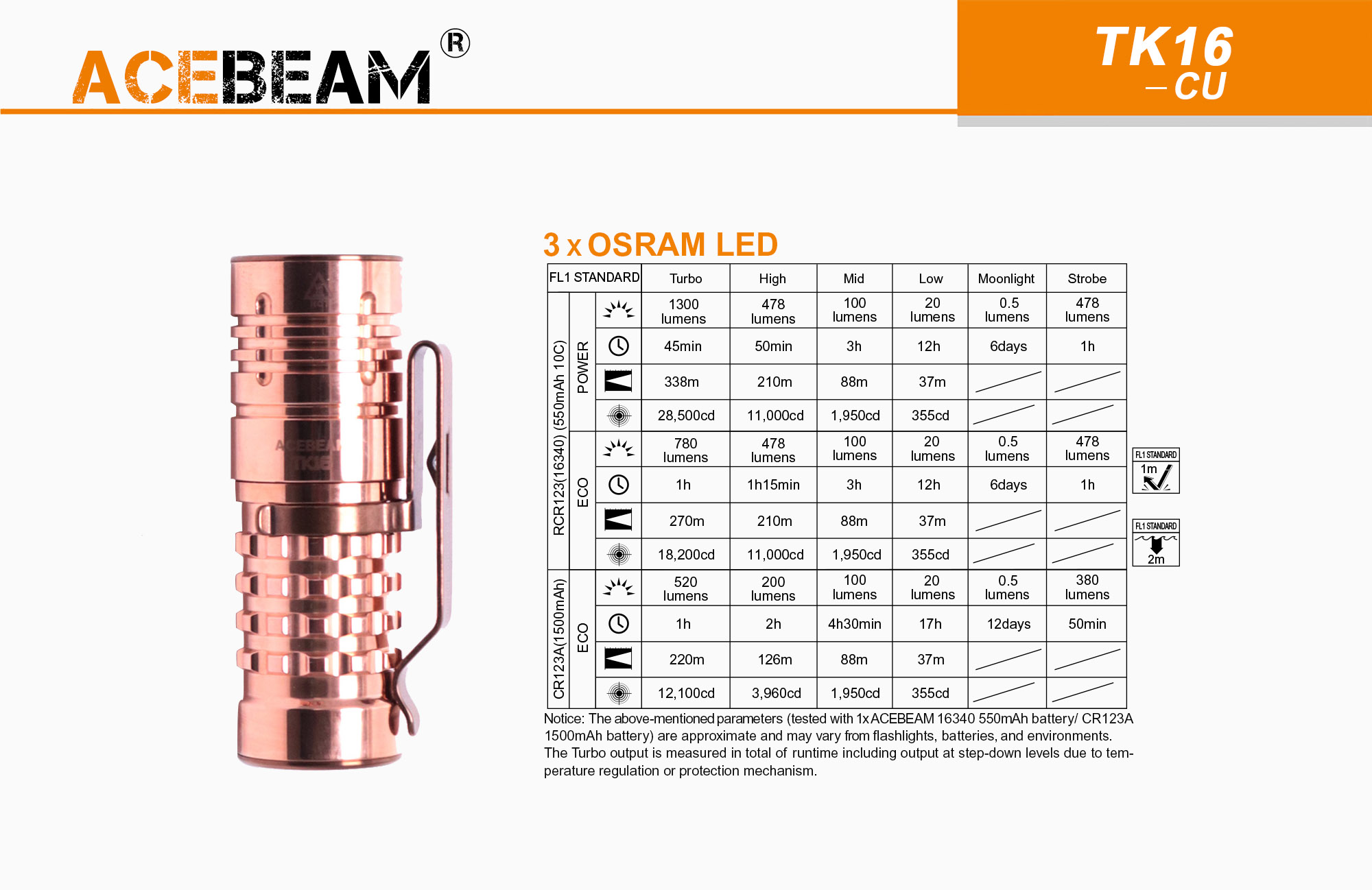

LED option 2: OSRAM
Power Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 20 lumens; 355cd; 37 meters; 12 hours
Mid: 100 lumens; 1950cd; 88 meters; 3 hours
High: 478 ~ 320 lumens; 11000cd; 210 meters; 11 minutes + 33 minutes
Turbo: 1300 ~ 320 lumens; 28500cd; 338 meters; 1 minute 30 seconds + 43 minutes
Strobe: 478 lumens; 1 hours

ECO Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 20 lumens; 355cd; 37 meters; 12 hours
Mid: 100 lumens; 1950cd; 88 meters; 3 hours
High: 478 lumens; 11000cd; 210 meters; 8 minutes + 50 minutes
Turbo: 780 ~ 260 lumens; 18200cd; 270 meters; 3 minutes + 50 minutes
Strobe: 478 lumens; 1 hours

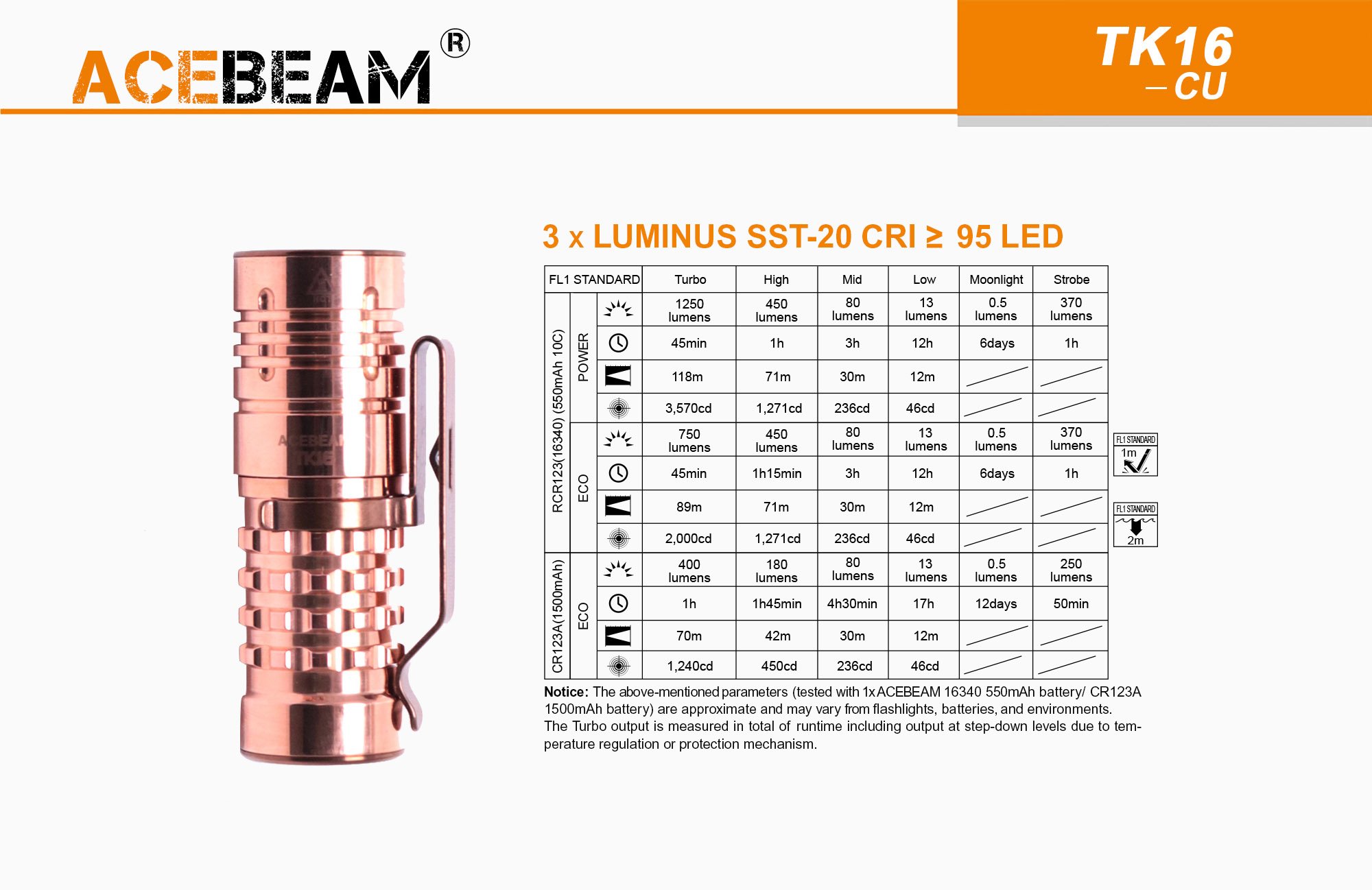

LED option 3: LUMINUS SST-20 CRI95
Power Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 13 lumens; 50cd; 14 meters; 12 hours
Mid: 68 lumens; 270cd; 33 meters; 3 hours
High: 370 ~ 220 lumens; 1550cd; 78 meters; 11 minutes + 40 minutes
Turbo: 1000 -220 lumens; 4250cd; 130 meters; 1 minute 30 seconds + 50 minutes
Strobe: 370 lumens; 1 hours

ECO Mode
Ultra-Low: 0.5 lumen; 6.8 days
Low: 13 lumens; 50cd; 14 meters; 12 hours
Mid: 68 lumens; 270cd; 33 meters; 3 hours
High: 370 ~ 200 lumens; 1550cd; 78 meters; 8 minutes + 50 minutes
Turbo: 620 ~ 200 lumens; 2400cd; 98 meters; 3 minutes + 50 minutes
Strobe: 370 lumens; 1 hours

Max. output 1800 lumens
Max. runtime: 6.8 days
Max. beam distance: 338 meters
Peak beam intensity: 28500cd

When TK16 is powered by CR123A battery (1500mAh):

LED option 1: CREE-XPG3
Power Mode
Ultra-Low: 0.5 lumen; 12 days
Low: 12 lumens; 110cd; 21 meters; 17 hours
Mid: 100 lumens; 440cd; 42 meters; 4 hours 30 minutes
High: 2550 lumens; 950cd; 62 meters; 1 hours 50 minutes
Turbo: 600 ~ 300 lumens; 2650cd; 103 meters; 8 minutes + 50 minutes
Strobe: 600 lumens; 50 minutes

LED option 2: OSRAM
Power Mode
Ultra-Low: 0.5 lumen; 12 days
Low: 20 lumens; 355cd; 37 meters; 17 hours
Mid: 100 lumens; 1950cd; 88 meters; 4 hours 30 minutes
High: 200 lumens; 3960cd; 126 meters; 1 hour 45 minutes
Turbo: 520 ~ 260 lumens; 12100cd; 220 meters; 8 minutes +52 minutes
Strobe: 380 lumens; 50 minutes


LED option 3: LUMINUS SST-20 CRI95
Power Mode
Ultra-Low: 0.5 lumen; 12 days
Low: 13 lumens; 50cd; 14 meters; 17 hours
Mid: 68 lumens; 270cd; 33 meters; 4 hours 30 minutes
High: 160 lumens; 530cd; 46 meters; 1 hour 50 minutes
Turbo: 400 ~ 200 lumens; 1480cd; 77 meters; 8 minutes + 55 minutes
Strobe: 250 lumens; 50 minutes

Max. output 600 lumens
Max. runtime: 12 days
Max. beam distance: 220 meters
Peak beam intensity:12100cd

Size: 23mm Head Diameterx 66.5mm Length x 22mm Tube
Weight: 75.8g w/o battery; 93.8g w/ battery

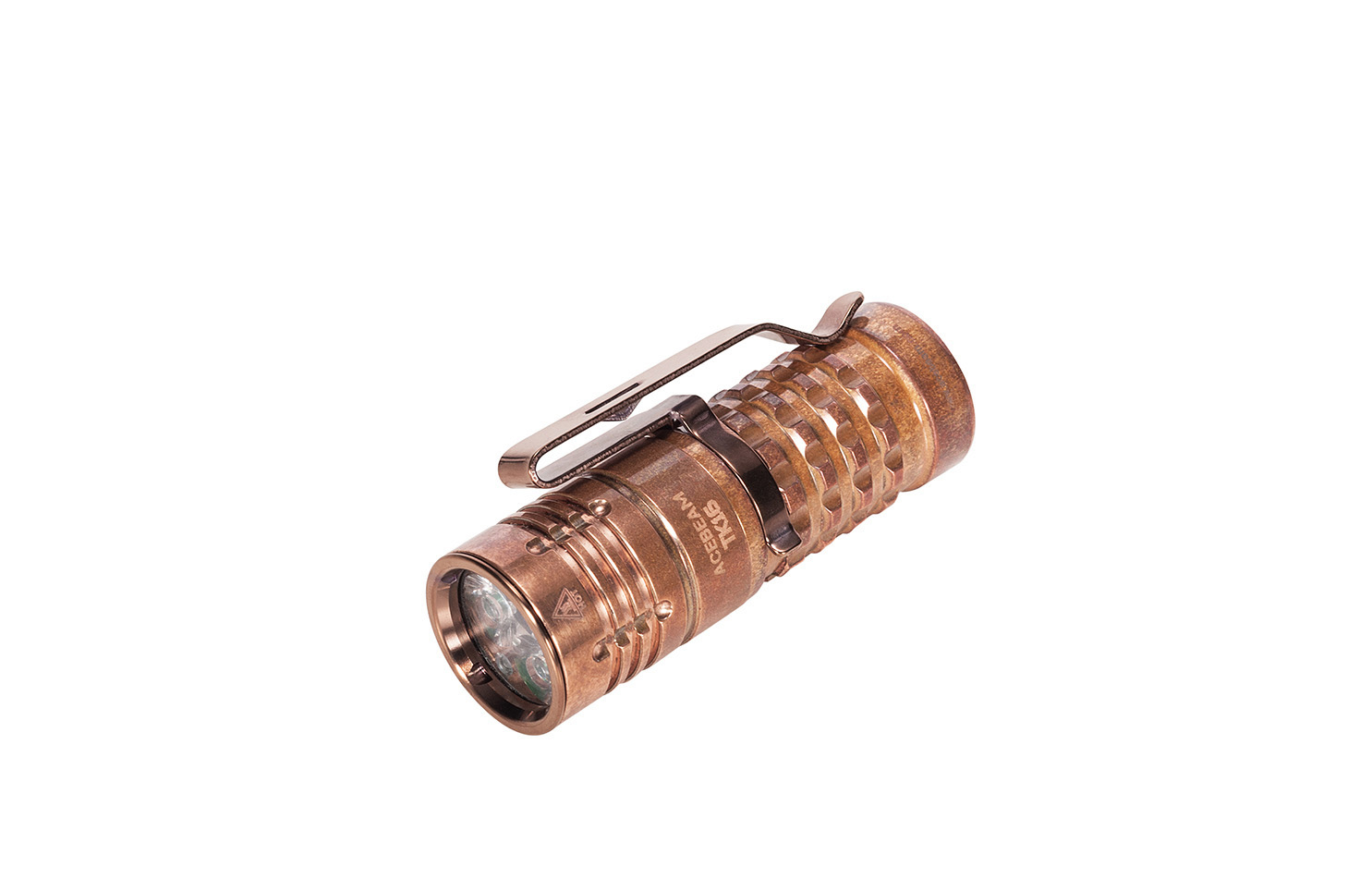

Innovative body construction is made of solid billet ultra conductive pure copper

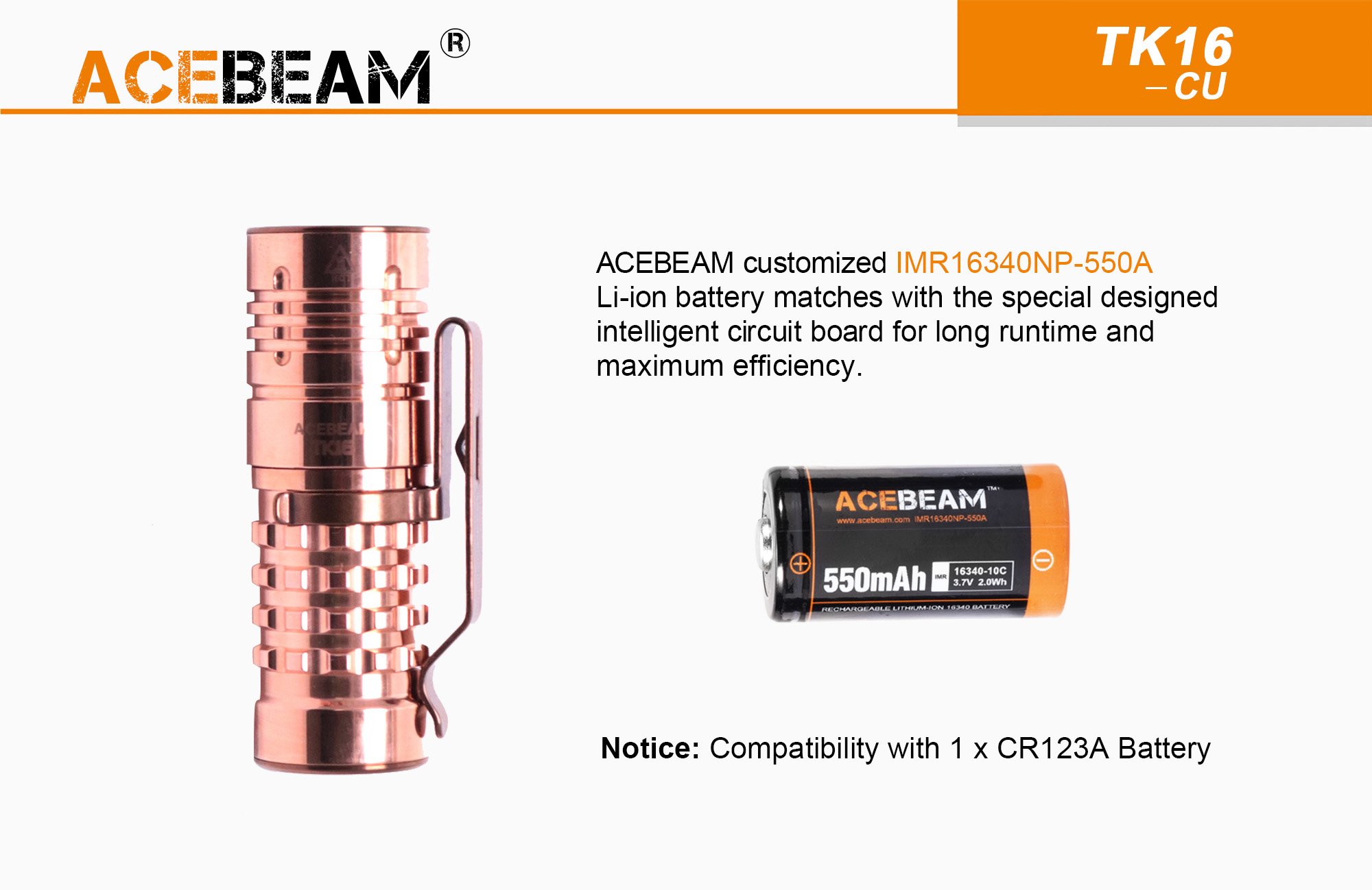

Customized 10C discharge current RCR123 battery

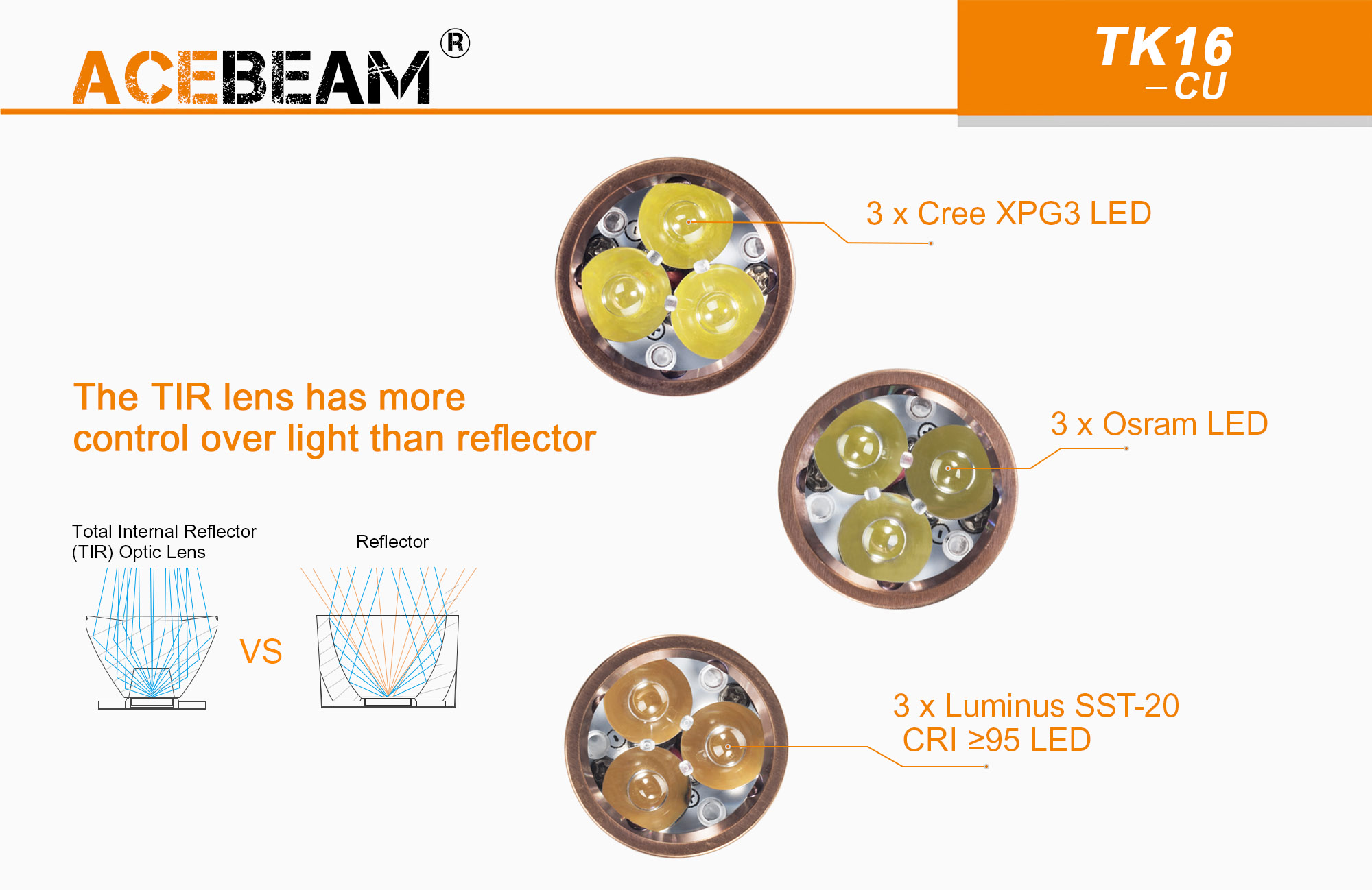

TIR (Total Internal Reflection) optic facilitates efficient light transmission with a broad beam and a generous throw
Highly integrated tail switch switch for all easy operation
Knurling and polishing finish provide a secure grip
Multiple LED, multiple brightness and light range

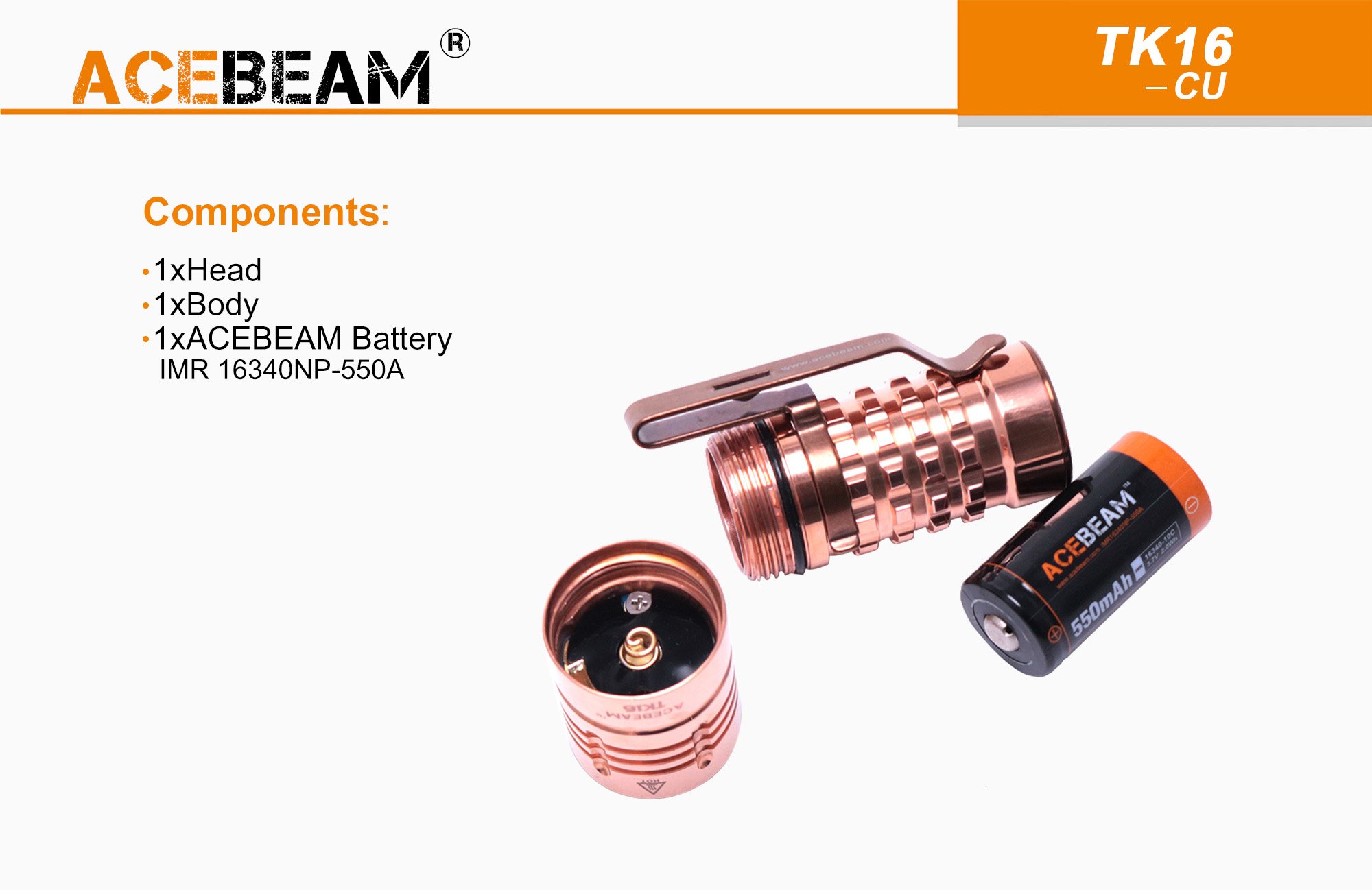

Compatible Battery: 1 x CR123A battery / 1 x 16340 battery (ACEBEAM RCR123 battery recommended)
Strobe setting that can disorient an attacker or serve as a distress signal

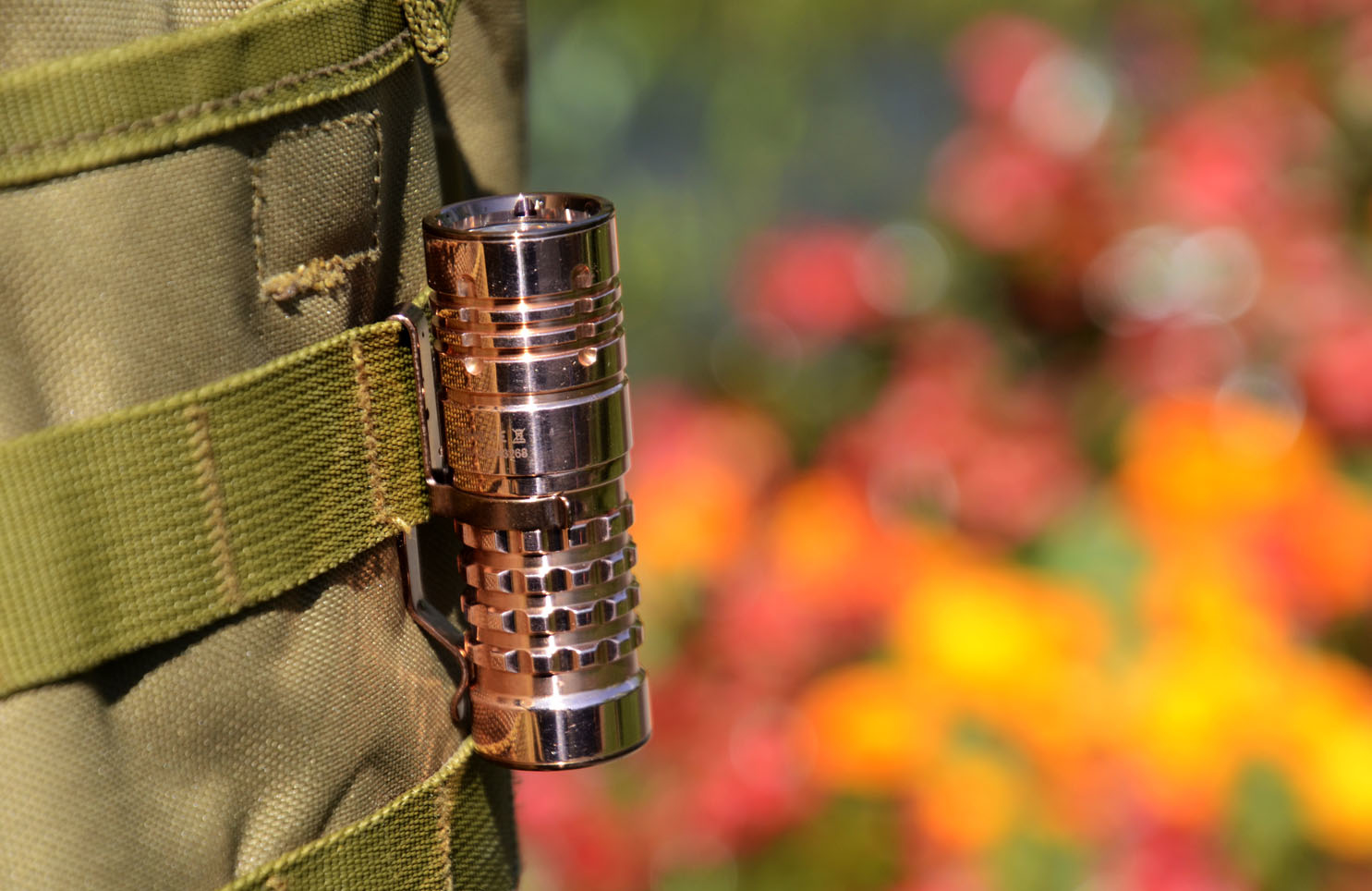

Detachable Gold plated clip and compact size for easy carry
Streamlined body with slim head design
IP66 rated protection for rain resistance and dust proof

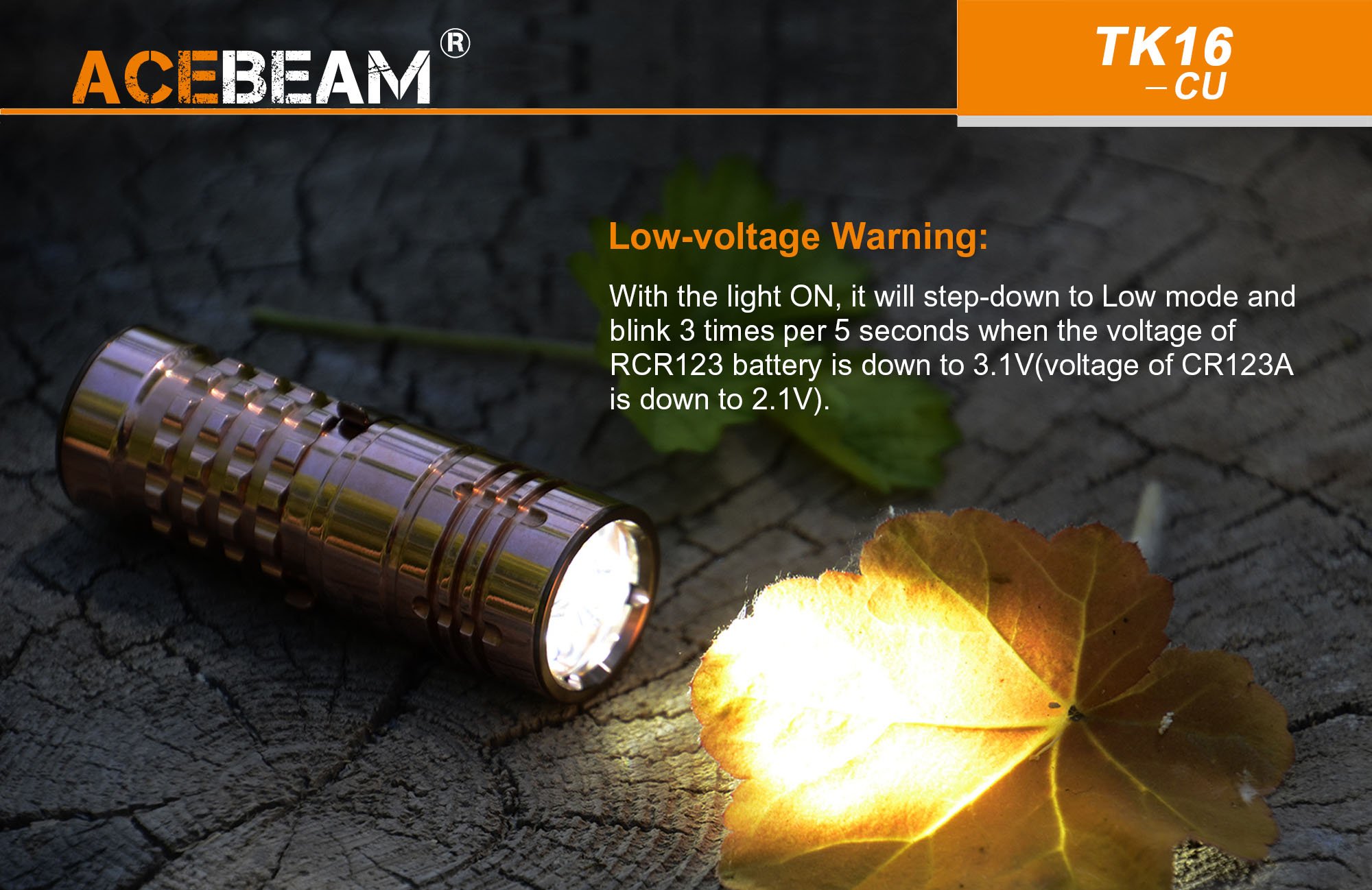

Low battery voltage warning when flickering
Intelligent highly efficient circuit board design for max. performance and long time time

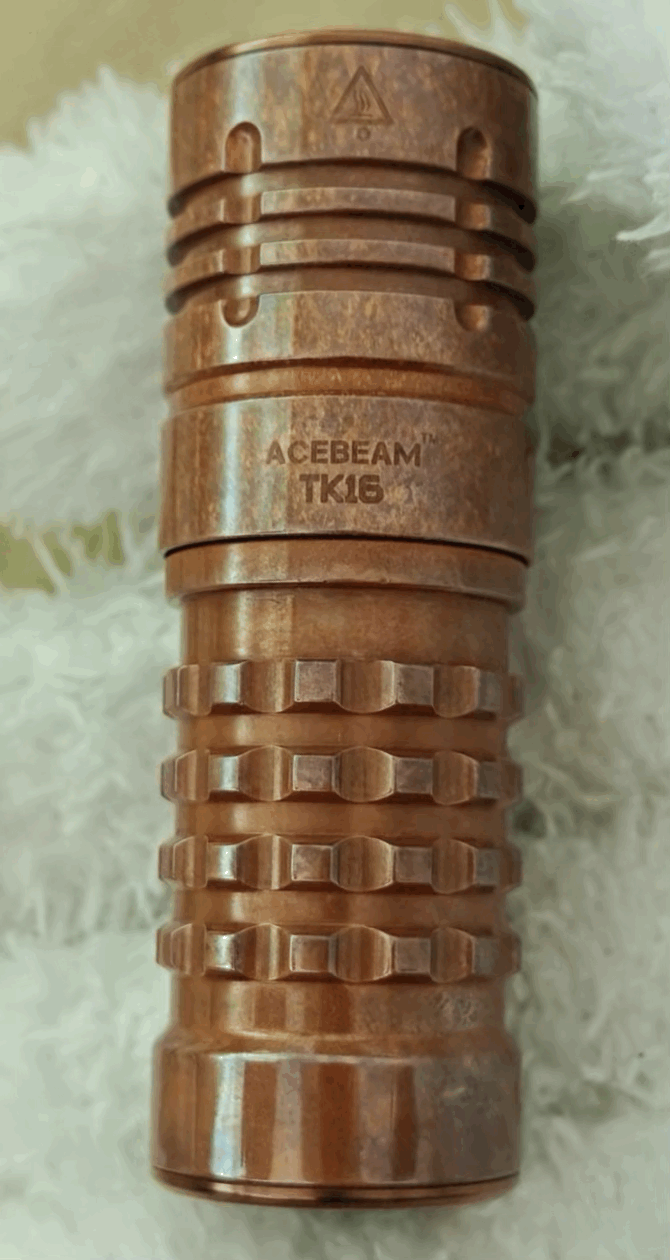

Note: The pure copper will change color slowly because of oxidation when exposing in the air. The color will show much difference by frequently play according to the using environment and using habit. To avoid oxidation, the Copper version will be shipped via vacuum package.
